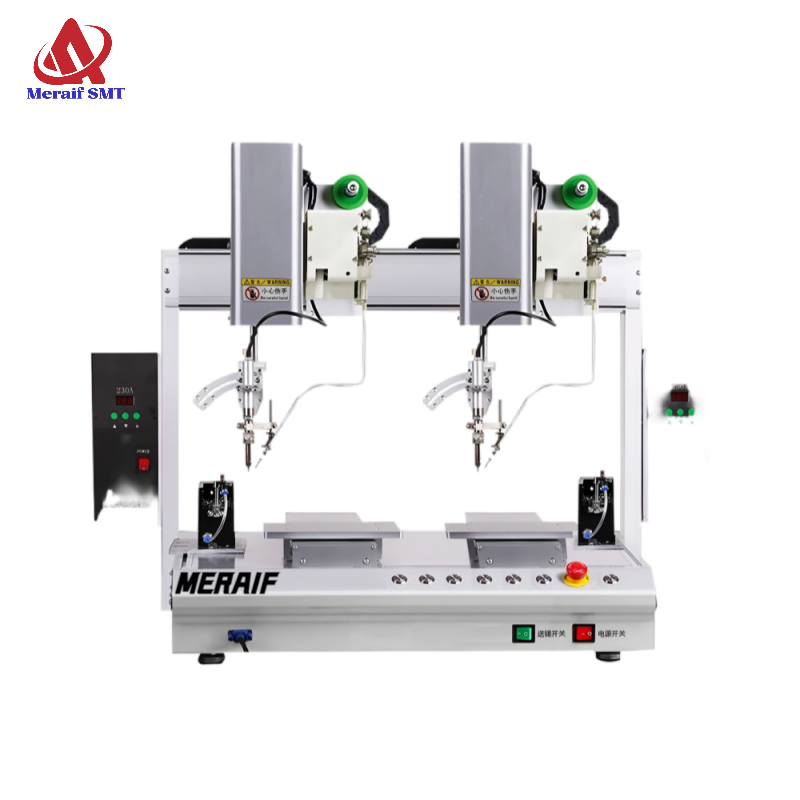

MERAIF MF-HX5331R Double Platform USB Soldering Machine Robot 3 Axis Pcb Automatic Soldering Machine
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF Auto Soldering Machine Technical Parameters:
|
Model |
MF-HX331R Two-axis Rotary Soldering Machine |
|
Temperature control system |
German Wilo |
|
Heating core |
High frequency heating core |
|
Temperature adjustment range |
0-500℃ |
|
Temperature error |
±2℃ |
|
Soldering range X/Y/Z (mm) |
300/300/100/360 |
|
Maximum load |
15kg |
|
Moving speed (mm/sec) |
0—800 |
|
Resolution capability |
0.01 mm/Axis |
|
Repeat accuracy |
± 0.02 mm/ Axis |
|
Program recording mode |
More than 100 sets |
|
Display mode |
LCD teaching box |
|
Motor system |
Japan Shinano Motor |
|
Guide rails |
Taiwan Hiwin |
|
Transmission mode |
Italy Elate belt |
|
Photoelectric switch |
Japan Omron |
|
Motion interpolation function |
3 axis |
|
Input power |
AC110V ~ 220V |
|
External control interface |
RS232 |
|
Machine size |
530*590*860mm |
|
Weight |
48 KG |
MERAIF Auto Soldering Machine Details:
Automatic Soldering Station
The Auto Soldering Machine is an automated device based on motor control, PLC and CNC technology, mainly used for high-precision soldering of electronic components. Its core functions include automatic feeding, positioning, soldering and testing, and it is widely used in PCB assembly, wire processing and consumer electronics manufacturing.
◆Automatic solder feeder
◆Window 7 English operation system
◆Self-developed software fool-style programming
◆12”full touch screen and wireless controller
◆Automatic cleaning of soldering iron
◆ 400W high power strong heat recovery heater
◆Temperature monitoring
interface, trajectory display,soldering process is more intuitive
