MERAIF MF-FB450 PCB Flipper Machine PCB Lift Conveyor PCB Conveyor PCB Coating Machine Conveyor PCB Conveyor System For PCB Coating Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF PCB Conveyor Technical Parameters :
| Specifications | Parameter | Specifications | Parameter |
| Model | MF-FB450 | Transport speed | 0.5-5m/min continuously adjustable |
| Dimensions L*W*H | L600mm*W1100mm*H1300 | Conveyor rail width | 50-450mm adjustable |
| Power supply | AC220V 50/60HZ | Modulation mode | Manual adjustment of screw rod |
| Total power | 1.5KW | Transportation mode | Stepper motor drive |
| Equipment weight | 145KG | Conveying mode | Special aluminum alloy + stainless steel chain |
| Air source | 0.4-0.6Mpa | Flip mode | Closed loop motor + precision reducer |
| Height of PCB board components | Up and down MAX100mm | Flip angle | 180° |
| Height from ground level | 900±20mm | Control mode | PLC + touch screen control |
| Direction of delivery | L-R/R-L |
PCB board flipping machine is a kind of equipment specially used for PCB board processing. It is mainly used to realize the transmission and flipping of PCB boards during the PCB board processing process to facilitate double-sided processing or other related operations.
Features:
1. Strong and stable design
2. Rotary power stepper motor, accurate positioning, smooth operation
3. PLC control system
4. The control panel is LED touch screen
5. With direct function
6. Photoelectric sensor control start
7. Standard equipped with signal, can be connected online with other equipment

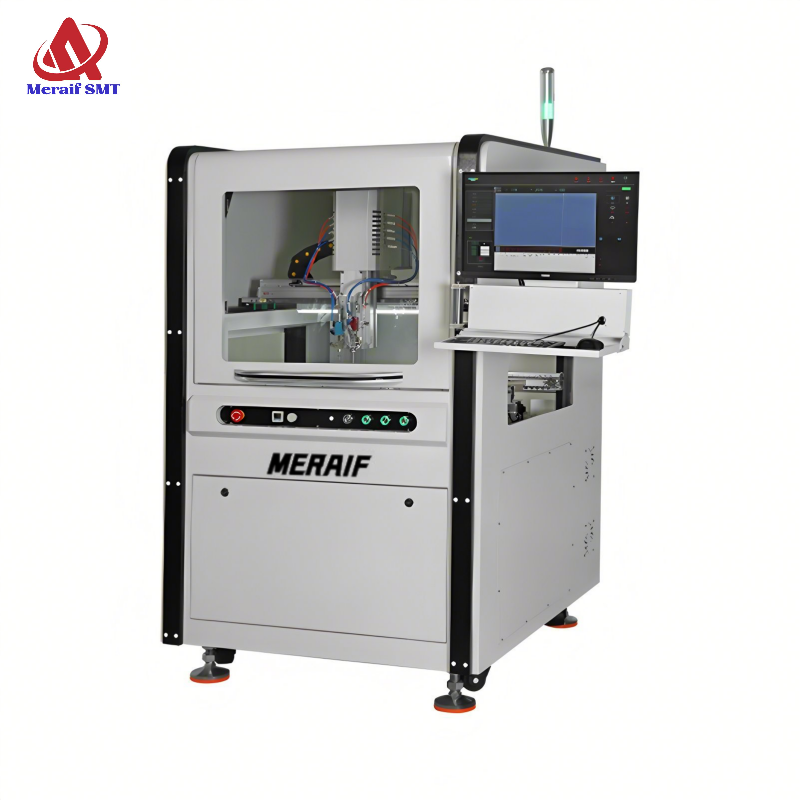

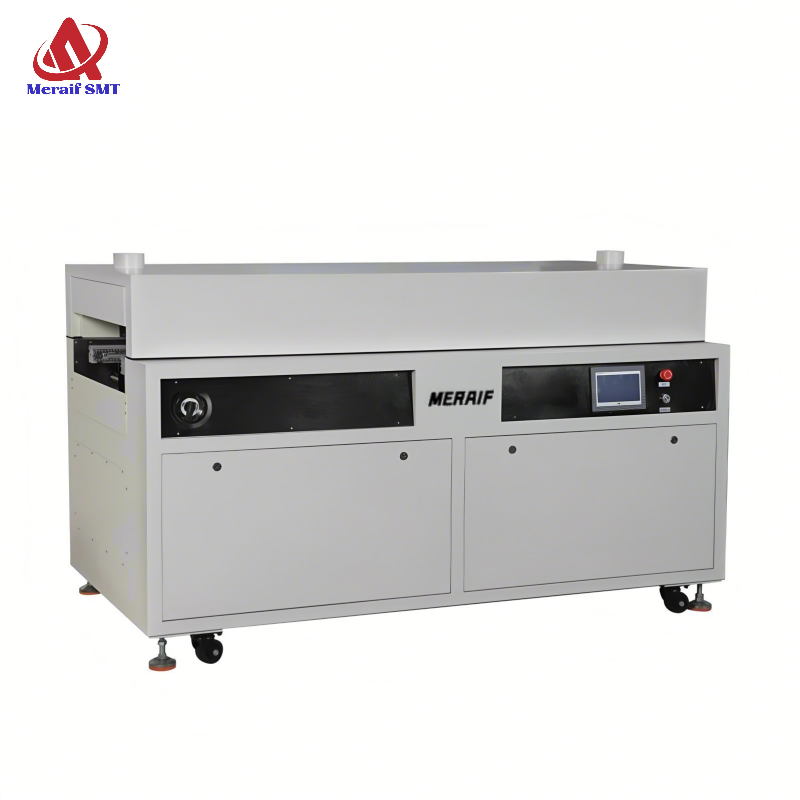

MERAIF Pcb Coating Machine Picture Show:
EXHIBITION:
SMT LINE:
