MERAIF MF-P20 PCB Inspection Conveyor PCB Conveyor PCB Coating Machine Conveyor PCB Conveyor System For PCB Coating Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF PCB Inspection Conveyor Technical Parameters :
| Specifications | Parameter |
| Model | MF-P20 |
| Overall dimensions L*W*H | L800mm*W960mm*H1300 |
| Power supply | AC220V 50/60HZ |
| Total power | 0.2KW |
| Equipment weight | 105KG |
| Conveyor rail width | 50-450mm adjustable |
| PCB board component height | Maximum 100mm up and down |
| Lighting part | Built-in lighting source |
| Detection part | Built-in detection light source |
| Conveyor to ground height | 920±20mm |
| Conveyor direction | L-R/R-L |
MERAIF PCB Inspection Conveyor Details:
PCB The sealing docking station is mainly used for sealing detection, especially in SMT (Surface Mount Technology) production lines. Its main function is to ensure the sealing of products during transportation and processing, thereby improving the overall quality and reliability of the products.
Features:
1. The conveying mechanism uses a special aluminum profile conveying track and a special stainless steel chain. A special manual (crank) mechanism is used to adjust the track width.
2. The conveying mechanism uses an adjustable speed motor. The frame structure is made of 50 * 50mm square tube, the bottom is equipped with a height adjustment cup, the outside is made of 1.5mm plate, and the surface is electrostatically sprayed with computer white.
3. The sealed UV detection uses a special LED ultraviolet detection lamp as the detection light source.
4. The control system uses button control + sensor, the line layout is reasonable, the wiring is neat, the line is installed in the wire trough, and the overall layout line needs to be safe and beautiful.
5. The conveying is the upper conveying, and the conveying of the plate is smooth, without abnormal sound, and the plate is not stuck or hit.
6. The conveying fixture of the conveying system is released and paused by manual control, and the surface coating effect of the product can be checked online.
7. Check the size of the viewing port for sprayed products. The size should be designed to ensure that the product delivery fixture can be easily taken out from the viewing port.

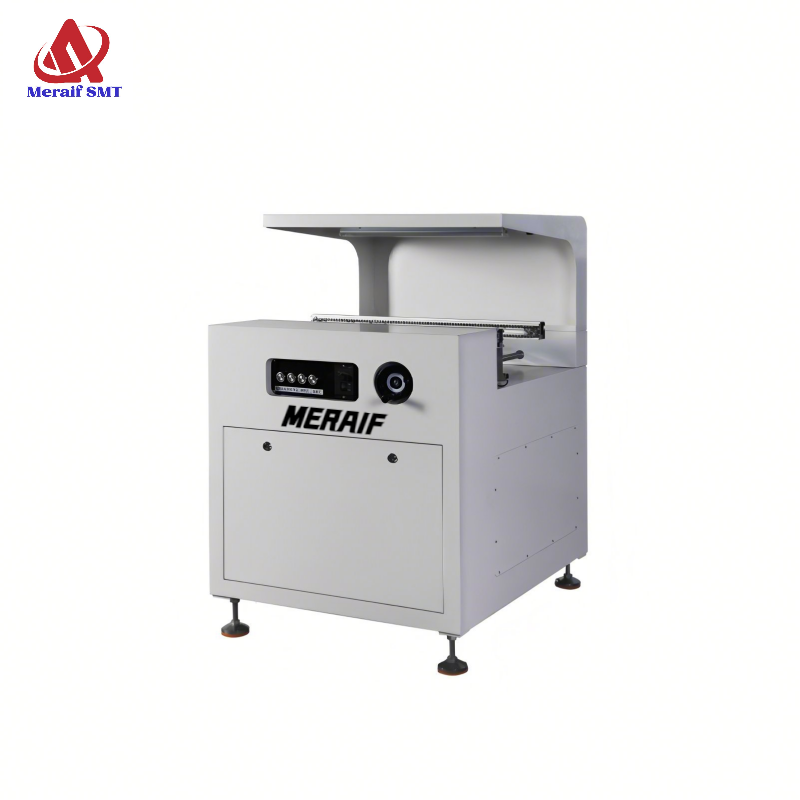

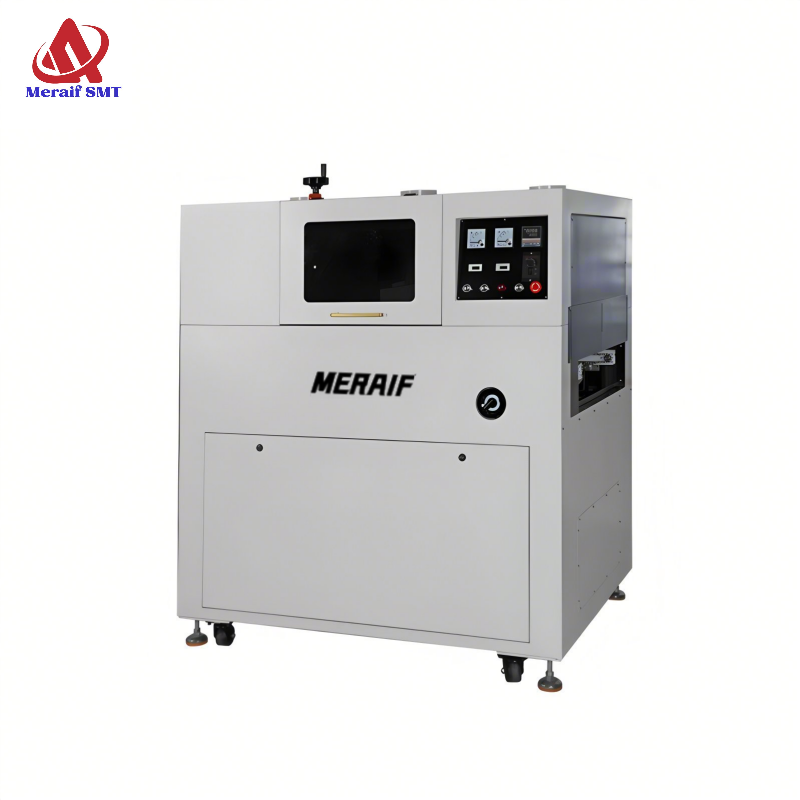

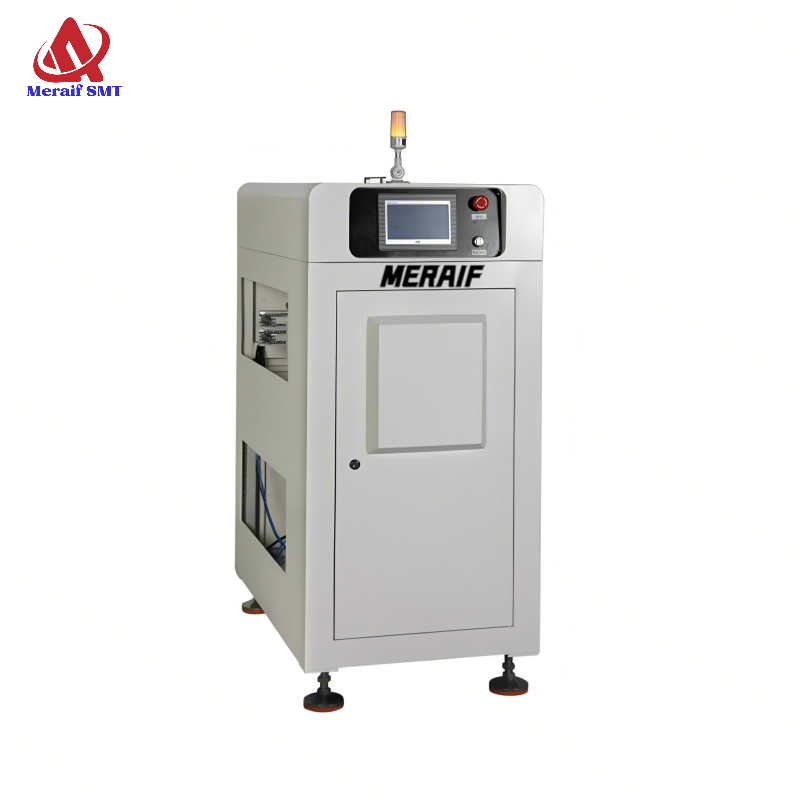

MERAIF Pcb Coating Machine Picture Show:
EXHIBITION:
SMT LINE:
