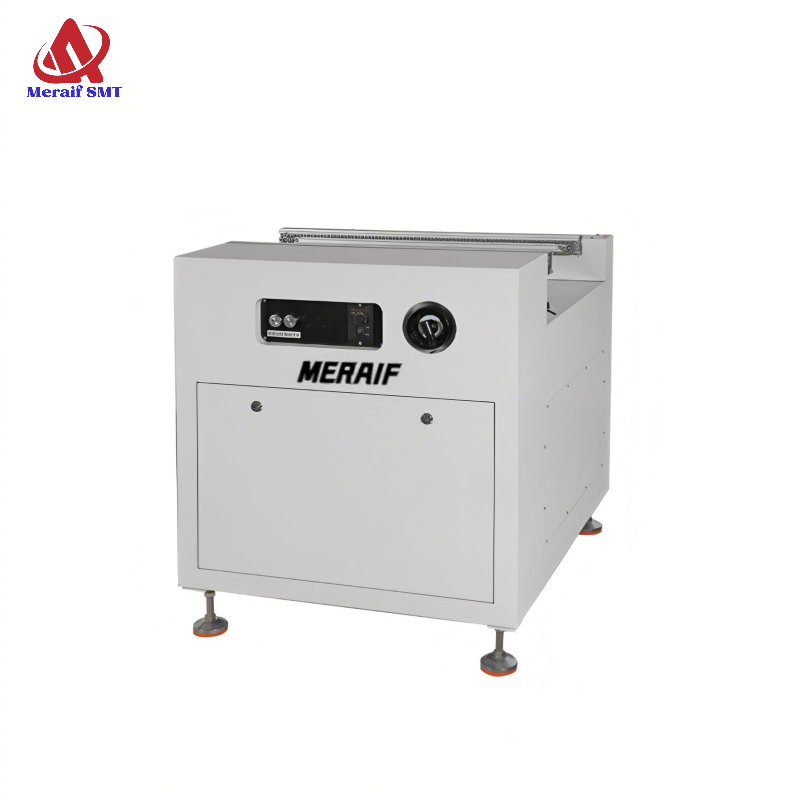

MERAIF MF-P10 PCB Inspection Conveyor PCB Conveyor PCB Coating Machine Conveyor PCB Conveyor System For PCB Coating Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF PCB Inspection Conveyor Technical Parameters :
MERAIF PCB Inspection Conveyor Details:
Specifications
Parameter
Model
MF-P10
Dimensions L*W*H
L800mm*W960mm*H940
Power supply
AC220V 50/60HZ
Total power
0.2KW
Equipment weight
80KG
Conveyor rail width
50-450mm adjustable
PCB board component height
Maximum 100mm up and down
Lighting part
/
Detection part
/
Conveyor to ground height
920±20mm
Conveyor direction
L-R/R-L
PCB Conveyor, or printed circuit board conveyor, is a device used to automatically transfer printed circuit boards during the manufacturing process of electronic devices. It is widely used in SMT (surface mount technology) production lines, especially in the loading, unloading, flipping, and testing of PCBs..
Features:
1. The conveying mechanism uses a special aluminum profile conveying track and a special stainless steel chain. A special manual (crank) mechanism is used to adjust the track width.
2. The conveying mechanism uses an adjustable speed motor. The frame structure is made of 50 * 50mm square tube, the bottom is equipped with a height adjustment cup, the outside is made of 1.5mm plate, and the surface is electrostatically sprayed with computer white.
3. The control system uses button control + sensor, the line layout is reasonable, the wiring is neat, and the line is installed in the cable trough. The overall layout line needs to be safe and beautiful.
4. The conveying is the upper conveying, and the conveying of the plate is smooth, without abnormal sound, and the plate is not stuck or hit.
5. The docking station needs to be designed with the function of taking and operating the equipment on both sides, so that the operator can quickly put in and take out the product conveying fixture on both sides of the equipment.
