MERAIF MF-H9 PCB Conformal Coating Machine Automatic UV Conformal PCB Coating Equipment In SMT Machine Line PCB Coating Machine
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF Pcb Coating Machine Technical Parameters :
|
Specifications |
Model parameters |
Specifications |
Model parameters |
|
Model |
MF-H9 |
Coating stroke |
X=450 Y=450 Z=100(mm) |
|
Dimensions L*W*H |
L1035mm*W1380mm*H1700 |
Conveyor rail width |
50-450mm |
|
Power supply |
AC220V 50/60HZ |
PCB component height |
Maximum 100mm |
|
Total power |
1.8KW |
PCB board edge |
≥5mm |
|
Equipment weight |
470KG |
Spraying width |
3-20mm |
|
Air source |
0.4-0.6Mpa |
Coating edge accuracy |
<1mm |
|
Exhaust volume requirements |
6㎥/min |
Coating thickness |
0-300um adjustable (depending on the actual glue situation) |
|
Guide rail amplitude modulation method |
Software electric control |
Programming method |
Manual teaching |
|
Upper layer transmission height |
920±20mm |
Software part |
W10 + coating software |
|
Transmission direction |
L-R R-L |
Control method |
Industrial computer + motion control card |
|
Transport speed |
2-12m/min |
Communication port |
SMEMA interface |
|
Transport motor |
Stepper motor |
Three-axis drive speed |
800mm/s |
|
Lighting part |
Built-in lighting source |
U-axis drive speed 0-400mm/s |
0-400mm/s |
|
Detection part |
Built-in detection light source |
Four-axis drive accuracy |
±0.02mm |
|
Number of glue valves |
1 small atomizer + 1 dispensing valve |
Program storage quantity |
More than 1000 |
|
Spraying method |
Atomization and dispensing + rotation |
U-axis drive method |
Servo motor + precision screw + precision reducer |
|
Glue barrel |
10L |
Three-axis drive method |
Servo motor + ball screw |
|
Cleaning barrel |
2L stainless steel barrel |
Conveyor rail |
Special aluminum alloy + stainless steel chain |
|
Specifications |
Visual intelligent programming |
|
|
PCB coating machine is a kind of equipment specially used to apply protective layer on the surface of printed circuit board (PCB), the main purpose of which is to protect PCB from damage by moisture and other environmental factors. The following is a detailed introduction to PCB coating machine:
Types and application scenarios of PCB coating machine
Selective coating machine
Selective coating machine allows precise coating of specific areas of PCB, which is suitable for complex circuit design that requires local protection. Such machines are usually equipped with PLC control system, which can achieve precise operation and efficient coating effect.
Fully automatic coating machine
Fully automatic coating machine can realize automatic loading and unloading and transmission of PCB, which greatly improves production efficiency and reduces labor cost. Such machines are usually equipped with motion control card and genuine Windows 10 system to ensure the stability and reliability of operation.
Special application coating machine
Special application coating machine such as UV curing machine is suitable for special coating needs, such as fast curing and high-precision coating. Such machines are usually equipped with ultraviolet curing device, which can complete the curing process of coating in a short time.

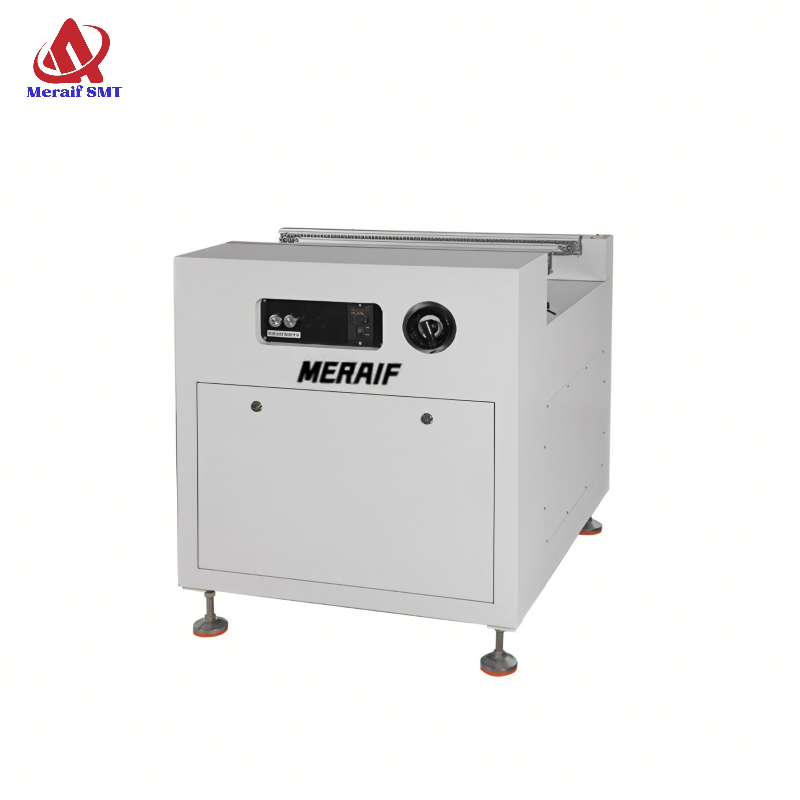

MERAIF Pcb Coating Machine Picture Show:
