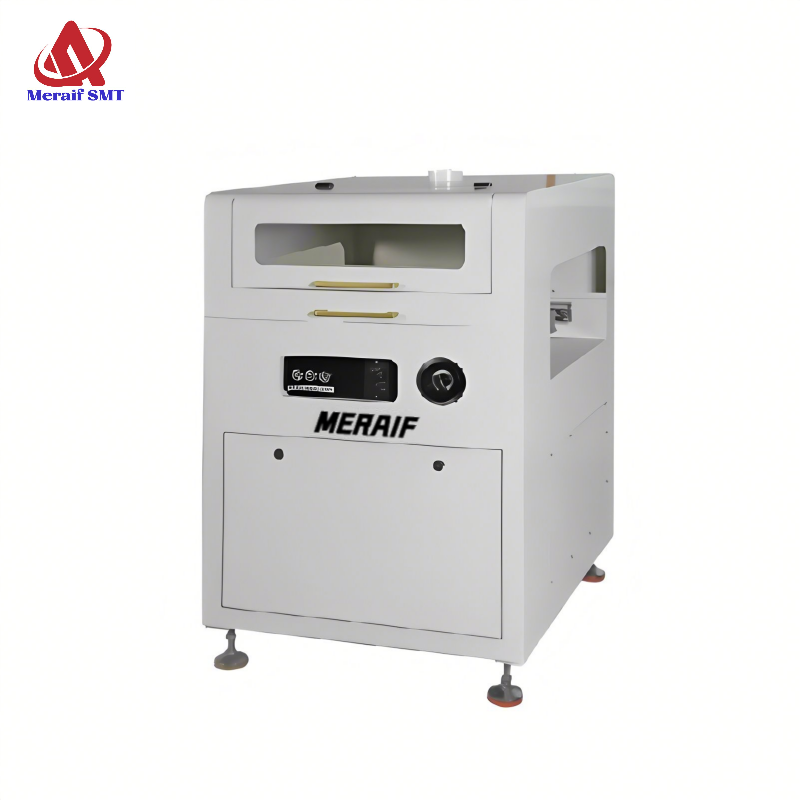

MERAIF MF-H5 PCB Conformal Coating Machine Automatic UV Conformal PCB Coating Equipment In SMT Machine Line PCB Coating Machine
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF Pcb Coating Machine Technical Parameters :
Specifications
Model parameters
Specifications
Model parameters
Model
MF-H5
Coating stroke
X=450 Y=450 Z=100(mm)
Dimensions L*W*H
L915mm*W1200mm*H1630
Conveyor rail width
50-450mm
Power supply
AC220V 50/60HZ
PCB component height
Maximum 100mm
Total power
1.8KW
PCB board edge
≥5mm
Equipment weight
350KG
Spraying width
3-20mm
Air source
0.4-0.6Mpa
Coating edge accuracy
<1mm
Exhaust volume requirements
6㎥/min
Coating thickness
Adjustable from 0-300um (depending on the actual glue situation)
Programming method
Manual teaching
Guide rail amplitude modulation method
Software electric control
Software part
W10＋coating software
Upper layer transmission height
920±20mm
Control method
Industrial computer+motion control card
Transmission direction
L-R R-L
Communication port
SMEMA interface
Transport speed
2-12m/min
Lighting part
Built-in lighting source
Transport motor
Stepper motor
Detection part
Built-in detection light source
Three-axis drive speed
800mm/s
Number of glue valves
1 small atomizer+1 dispensing valve
Three-axis drive accuracy
±0.02mm
Spraying method
Atomizer and dispensing
Program storage quantity
More than 1000
Glue barrel
10L
Three-axis drive method
Servo motor + ball screw
Cleaning barrel
2L stainless steel barrel
Conveyor rail
Special aluminum alloy + stainless steel chain
Optional
Spray valve tilting system
Optional
Mark camera
Optional
Visual intelligent programming
MERAIF Pcb Coating Machine Details:
PCB coating machine is a kind of equipment specially used to apply protective layer on the surface of printed circuit board (PCB), the main purpose of which is to protect PCB from damage by moisture and other environmental factors. The following is a detailed introduction to PCB coating machine:
Types and application scenarios of PCB coating machine
Selective coating machine
Selective coating machine allows precise coating of specific areas of PCB, which is suitable for complex circuit design that requires local protection. Such machines are usually equipped with PLC control system, which can achieve precise operation and efficient coating effect.
Fully automatic coating machine
Fully automatic coating machine can realize automatic loading and unloading and transmission of PCB, which greatly improves production efficiency and reduces labor cost. Such machines are usually equipped with motion control card and genuine Windows 10 system to ensure the stability and reliability of operation.
Special application coating machine
Special application coating machine such as UV curing machine is suitable for special coating needs, such as fast curing and high-precision coating. Such machines are usually equipped with ultraviolet curing device, which can complete the curing process of coating in a short time.
MERAIF Pcb Coating Machine Picture Show:
EXHIBITION:
SMT LINE:
