JUTZE LI-6000 2D AOI SMT LINE AOI 3D Automated Optical Inspection System AOI Equipment AOI Machine For SMT Machine Line SMT Assembly Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
JUTZE LI-6000 2D AOI SMT LINE AOI Technical Parameters :
Model
LI-6000
LI-6000D
PCB
PCB Size
50mmx70mm～510mmx460mm
Single lane:50mm×70mm～535mm×590mm
Lane
Clearance
Upper:35mm Lower:50mm
PCB Thickness
0.6mm～6mm
Transport Height
900±20mm
920±20mm
Flow Direction
Left to right,Right to left(as per customers'request)
Product Size
W1000×D1170×H1800mm
W1083×D1445×H1800mm
Weight
734KG
945KG
Vision
CCD
9.1M Digital Camera (5M,12M Digital Camera option)
Lighting
6 channel lighting system(RGB+3White)
Resolution
12um (5um-17.5um option)
Inspection Speed
3～5 FOV/sec
Inspection Defects
Missing,Solder ball,Shift,Side up,Tombstone,Upside down,Reverse,
Power Requirements
AC220V 50/60Hz,1.8KVA
Air Requirements
0.5MPa
Environment
Temperature:5-40℃,Humidity:25%-80%RH
Interfaces
SMEMA
JUTZE LI-6000 2D AOI SMT LINE AOI Details:
Dual lanes:50mm×70mm～535mm×330mm
System
Wrong component,Bridge,Insufficient solder,Copper exposure,Wrong mark,
No solder,Extra solder,Lifted body,Lifted lead,Bended lead,OCV etc.
Jutze Core Technology
01.The first AOl manufacturer to use combination of brightness and RGB in domestic market. Creative AOl inspection theory with high detection rate and low False Call;
02.Combined with multi-phase LED lighting system,the high-speed multi-frame industrial CCD camera gives more high definition PCB images,and provides the highest inspection performance for now,03015 compatible;
03.On the basis of former inspection speed,new Vision System provides many types of lighting and multi-imaging.All these combinations give more details to analysis,which is more powerful than former AOl;
04.Provide excellent solutions for SMT production lines,help improve the pass yield and work efficiency;
05.All-new design circuit and control system,which is much more compact with much faster communication.Hence the equipment is more efficient;

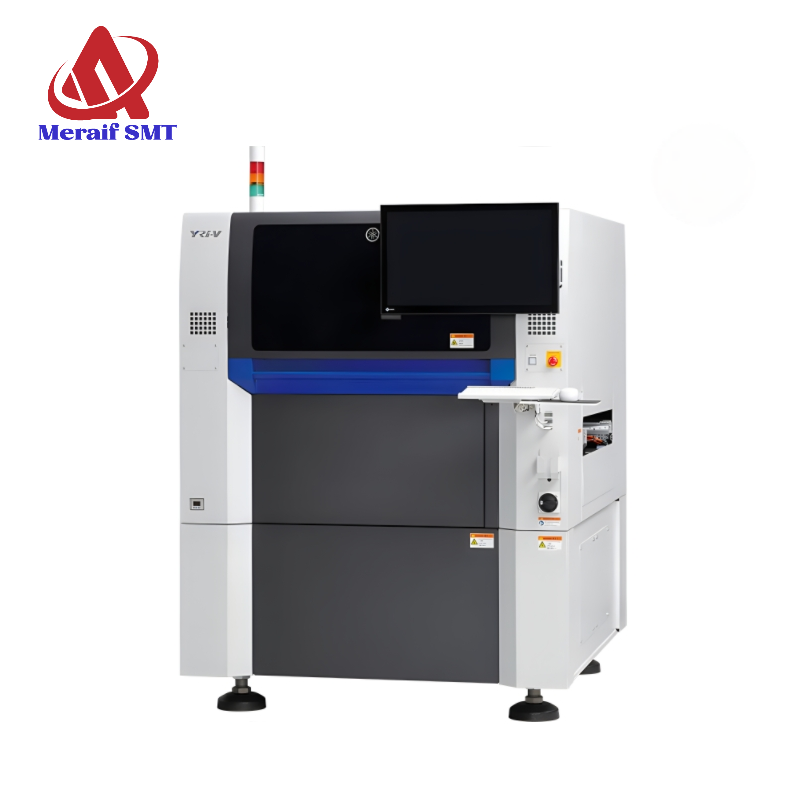

JUTZE LI-6000 2D AOI SMT LINE AOI Picture Show:
EXHIBITION:
SMT LINE:
