JUTZE Edge 3D AOI SMT LINE AOI For SMT Machine Line

Model:JUTZE EDGE

Lighting System:2D RGB+White LED ring lighting/3D four direction digital projector

Vision System:4M/12M industrial high-speed camera;Telecentric lens

Resolution:18.3um /10um*

Height Measuring:20mm

Height Measuring Resolution:1um

Product Size:W1080XD1300XH1850mm

Weight:777KG

FOV Size:37.5x37.5mm (4M,18.3um)/40.9×30.7mm(12M,10um)

PCB Size:50mmx70mm~510mm×460mm

PCB Thickness:0.6mm~6mm

Inspection Theory:2D+3D image data analysis

Inspection Speed:400ms/FOV(2D+3D)

Rail height:900±20mm

Power Requirements:AC220V 50/60Hz,1.8KVA

Air Requirements:0.5MPa

Environment:Temperature:5-40℃,Humidity:25%-80%RH

Interfaces:SMEMA

  • SMT machine line  customer

  • SMT machine line  customer

  • SMT machine line  customer

  • SMT machine line  customer

  • SMT machine line  customer

JUTZE Edge 3D AOI SMT LINE AOI 3D Automated Optical Inspection System AOI Equipment AOI Machine For SMT Machine Line SMT Assembly Line

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

JUTZE Edge 3D AOI SMT LINE AOI Technical Parameters :

Model

EDGE

Lighting System

2D RGB+White LED ring lighting



3D four direction digital projector

Vision System

4M/12M industrial high-speed camera;Telecentric lens

Resolution

18.3um /10um*

Height Measuring

Maximum measuring component height:20mm

Height Measuring Resolution

1um

Product Size

W1080XD1300XH1850mm

Weight

777KG

FOV Size

37.5x37.5mm  (4M,18.3um)
40.9×30.7mm(12M,10um)

PCB Size

50mmx70mm510mm×460mm

PCB Thickness

0.6mm6mm

Inspection Theory

2D+3D image data analysis

Inspection Speed

400ms/FOV(2D+3D)

Inspection Defects

Missing,shift,wrongcomponent,reverse,insufficient solder,bridge,broken,foreign parts,scratch,solder on golden finger,side up,tombstone,lifted lead,
lifted body,upside down,extra solder,no solder etc.

Conveyor System

PCB fix clamping method:Bottom-up fix board clamping;
Automatic loading and unloading;
Automatic system rail width adjustment,SMEMA standard;



Rail height:900±20mm

Power Requirements

AC220V 50/60Hz,1.8KVA

Air Requirements

0.5MPa

Environment

Temperature:5-40℃,Humidity:25%-80%RH

Interfaces

SMEMA

JUTZE Edge 3D AOI SMT LINE AOI Details:

Traditional 2D AOl inspection couldn't find many types of defects by capturing 2D images.
 Creative 3D digital projecting measurement technology is developed by Jutze to get the real contour data to deal with SMD,Solder joints,Characters,and foreign material etc.,which overcomes the weakness of 2D AOl.
 1.Accurate all-digital sinusoidal fringe phase,easy adjustable measurement range and accuracy;
 2.Fast and high accurate whole area scanning with wide height range;
 3.User friendly interface with simple operation.

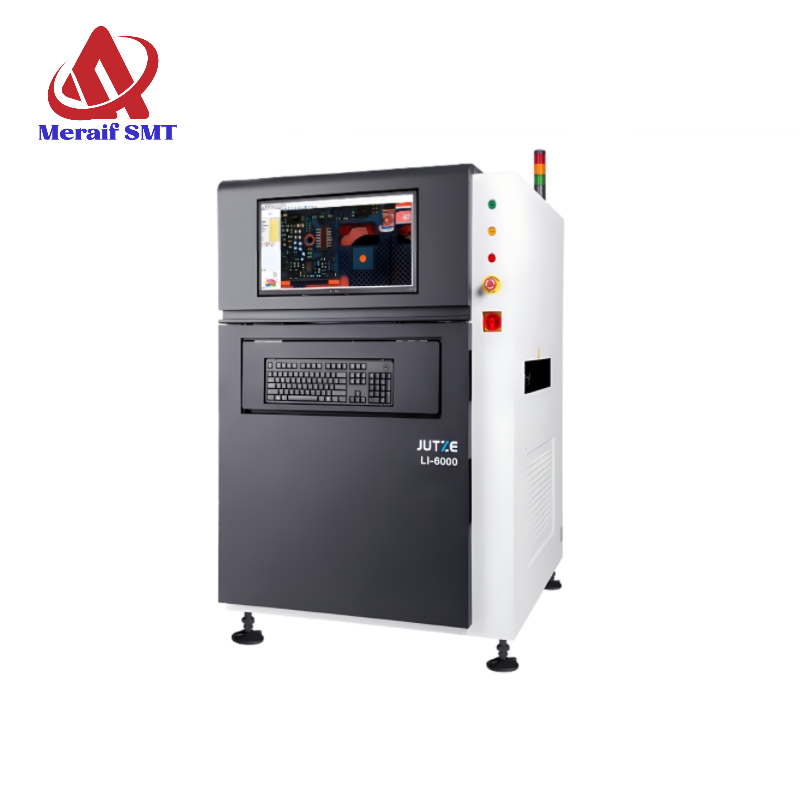

JUTZE Edge 3D AOI SMT LINE AOI Picture Show:
