Pemtron SATURN SMT 3D SPI Pemtron 3D SPI Online 3D Solder Paste Inspection System For SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
Pemtron SATURN SMT LINE 3D SPI Technical Parameters :
Model
SATURN
2D/3D Vision Algorithm
2D:Vision Inspection Algorithm
3D:PMP(Phase Measuring Profilometry)Algorithm
4MP
10MP
Pixel Resolution
10um
15um
18um
10um
15um
Inspection Speed
16 cm²/sec
36 cm²/sec
52 cm²/sec
38.4 cm²/sec
86.4 cm²/sec
FOV(Field of View)
20x20mm
30x30mm
36x36mm
32x30mm
48x45mm
Height Range
0~450 μm/0.4 μm
Height Accuracy
2μm
Max Accuracy
5mm
Gantry Type
Linear Motor
PCB Specification
Standard Type
Min.50x50 mm
Max.330x330 mm
Large Type
Min.50x50 mm
Max.510x510 mm
PCB Thickness
04-7.0 mm
Bottom Clearance
27mm
Electrical Requirements
200-240VAC,50/60Hz
Power Consumption
Standard Type
2.1 kW(9.68A Max @220V AC)
Large Type
2.3 kW(10.9A Max @220V AC)
Dimension
WxDXH/Weight
Standard Type
900x 1240x1600mm
750 kg
Large Type
1080x1410x1600 mm
950 kg

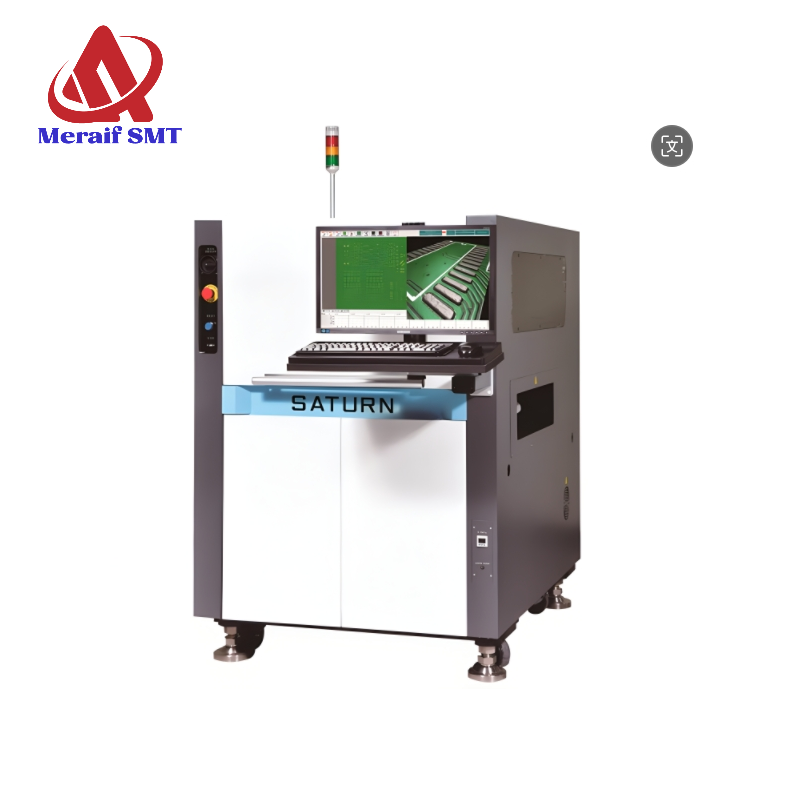

Pemtron SATURN 3D Inline Solder Paste Inspection system
Pemtron's 3D Inline Solder Paste Inspection SATURN System using Moiré pattern (4 projector) combines 2D color images with 3D measurement data to provide more accurate and realistic 3D inspection image unlike the conventional method that displayed solder paste through a color map only. The Pemtron proprietary software has the latest programming methods such as the use of AI (Artificial Intelligent) algorithms for automatic component identification. Color 3D algorithm allows accurate detection of thinly spread bridges on the bottom of the PCB and inspection to the height of a folder up to 40 micron or less. The system can detect also solder splash on the golden finger.
Feature:
1.Industry-leading precision and reliability of inspection
- Eliminate shadow using Multi Projection
2.Real Color Full 3D Imaging Technique
3.Glue inspection greater than 2mm
4.Perform 2D & 3D algorithms simultaneously
5.64 bit Windows 10 Operating System
6.Linear Motor Gantry Type Drive
- High-speed precision control improves repeatability
- Reduction of noise/vibrations
Pemtron SATURN SMT LINE 3D SPI Picture Show:
EXHIBITION:
SMT LINE:
