SMT Placement Solution Smd Mounting Machine JUKI JM-10 Hybrid Insertion Machine Led Pick and Place Machine For SMT Assembly Line SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
JUKI JM-10 Hybrid Insertion Machine Technical Parameters :
Specifications
Model
JM-10
Board size
Min.50x50 mm /Max.410×250 mm
Component height
28mm(component body 25mm+lead length 3mm)
Component size
Laser recognition
0201 to 33.5x33.5 mm
Placement speed
Pickup nozzle (Optimum)*1
0.8 sec./component
Gripper nozzle (Optimum)*1
1.3 sec./component
Number of Components
Bowl feeder
Max.12 types
Radial feeder(MRF-S)
Max.20 types
Radial feeder (MRF-L)
Max.14 types
Board size
Min.50×50 mm /Max.410×250 mm
Component height
25 mm
Component size
Laser recognition
0201 to 33.5x33.5 mm
54 mm view camera*2
3.0x3.0 mm to 33.5x33.5 mm
27 mm view camera*2
1.0x0.5 mm to 24.0x24.0 mm
Placement speed
Chip
(Optimum)
17,500 cph
(IPC9850)
12,500 cph
IC
4,100 cph*3
Placement accuracy
Laser recognition
±0.05 mm(±3σ)
Vision recognition (Optional)
±0.04 mm
Number of component to be attached
Max.60(8 mm tape feeder)
Power supply
200 to 415 VAC,3-phase
Apparent power
1.8 kVA
Operating air pressure
0.5±0.05 MPa
Air consumption
3451/Min(Optional:Vacuum pump with 501/Min)
Machine dimensions (WxDxH)⁴
1,455x1,295x1,510 mm
Mass
Approx.1,000KG
|
Options |
||
|
For Insertion Mounting |
Component handling and feeders |
Bowl Feeder (MBF)/Radial Feeder (MRF)/Table for radial components |
|
Conveyor |
Handle arm (for MBF)*1 |
|
|
For Surface Mounting |
Recognition system |
Vision centering system,*2(54 mm view camera,27mm view camera) |
|
Safety device |
Feeder floating detecting sensor (front)/Feeder floating detecting sensor (rear) |
|
|
Others |
Residual number-of-components control |
|
|
Component handling and feeders |
Tape feeder 8 to 72 mm/Bulk feeder /Stick feeder /Feeder stocker /Connector gig for tape |
|
|
For Insertion Mounting
and Surface Mounting
|
Conveyor |
Conveyor extension guide/Conveyor height 900 mm |
|
Safety device |
Ground-fault interrupter |
|
|
Others |
Caster /Vacuum pump/Main line filter/Quick connect coupling |
|
|
Three-color signal light (with buzzer)/DVD,CD-ROM drive (USB)/FD drive (USB)/ATC 6-6 |
||
|
Software |
EPU |
|
|
Component handling and feeders |
Tray Holder /Tape reel mounting base (for Tape Feeder,MRF) |
|
|
*1 This is a handle for adjustingthe PWB width.This handl armis used when a bowl federis installd on the right side of the bankortwo bowlfeders are installed
*2 Upward looking component centering camera is optional.Choose from either a 54 or 27mmfield of view.
|
||
Achieve higher quality and labor savings by automating manual insertion.
The JM10/JM20 automates the manual insertion process and is the advanced model for larger/heavier components and larger boards.
- Placement or Insertion of Surface Mount & Through-Hole Components
- Widest Component Range in the Electronics Industry
- Accommodates Multiple Types of Feeders
Features:
The JM10/JM20 is a Hybrid SMT and Through Hole Placement machine; Compact Footprint. An advanced model for larger and heavier components and larger boards.
- 6 specialty nozzles per gantry allow for a wide variety of applications.
- Through Hole Placement with lead tip centering
- Lead Orientation Detection – The laser sensor is ideal for lead tip detections leading to an improved insertion process
- Radial Feeders – MRF-S/MRF-L, or snap-in MRF-LF
- Bowl Feeders – MBF (Fixed), MBF-C (Trolley) or MBF-L (for large components)
- High accuracy low noise ball screw drive
- High accuracy laser align component centering – Laser sensor integrated into placement head

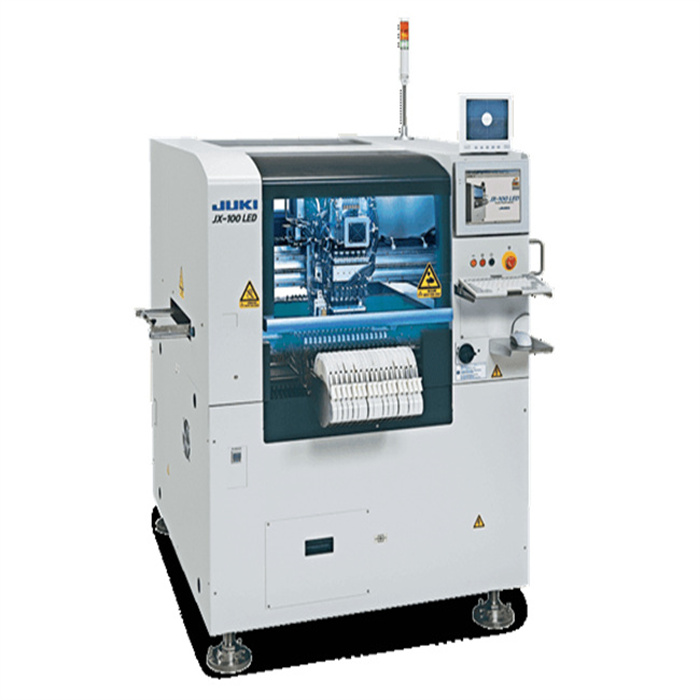

JUKI JM-10 Hybrid Insertion Machine Picture Show:
EXHIBITION:
SMT LINE:
