SMT Placement Solution Smd Mounting Machine JUKI FX-1R High Speed Modular Mounter Led Pick and Place Machine For SMT Assembly Line SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
JUKI FX-1R High Speed Modular Mounter Technical Parameters :
Modle Name
FX-1R
Board size
410×360mm
Component height
6mm
Component size
Laser recognition
0603 (Inch 0201) Chip ~20mm Square Element or 26.5*11mm
Placement speed
CHIP(Optimum)
33,000CPH*2
IPC9850
25,000CPH
Placement accuracy
Laser recognition
±0.05mm
Feeder inputs
Max. 80 on 8mm T/F
Power Supply
3-phaseAC200-415 V
Apparent Power
Max .3.0kVA
Operation Air Preasure
0.5±0.5Mpa
Air Consumption
-
Mass(Kg)
Approx. 2,000Kg
Equipment Size (W×D×H)
1,880×1,731×1,490mm
JUKI FX-1R High Speed Modular Mounter Details:
JUKI Pick and Place Machine FX-1R
FX-1R is a traditional modular chip Mounter driven at extreme speeds. Refinements in the drive system
deliver real world improvements in actual throughput.
33,000CPH?chip (optimal) / 25,000CPH: chip (IPC 9850)
Two independent multi-nozzle laser heads (8 total nozzles)
from 0603 0201 to 20mm square components or 26.5×11mm
0402 (01005) option factory installed.
Features:
Auto Teaching of Pick Position
Auto teaching of pick position reduces
changeover time and mis-picks
HMS (Height Measurement System)
Now standard on all R Series models,
the HMS is used to quickly and accurately measure the component pick height.
A laser sensor measures the distance instantly without any physical contact.
Camera Bad Mark Detection
Bad mark detection is performed using
the machine’s standard downward looking camera (also used for fiducials and teaching).
This system accurately detects a wide range of marks on various substrates,
including flex circuits.
Simultaneous Pick Priority Mode
Users can now select the best pick mode to suit their production requirements.
For the maximum possible throughput, simultaneous pick priority mode will try
to pick as many components as possible in a single pick sequence.
Independent Z/θcontrol
Each nozzle has independent Z and θmotors for high reliability
and high accuracy.
Precise control of each nozzle is possible without affecting other nozzles.
High Reliabliltiy
A linear motor is used for the X axis for higher reliability and
lower maintenance.
Linear motors require fewer structural parts such as pulleys or supports
and require no maintenance. In addition, they are quieter and do not induce
as much vibration as other drive systems

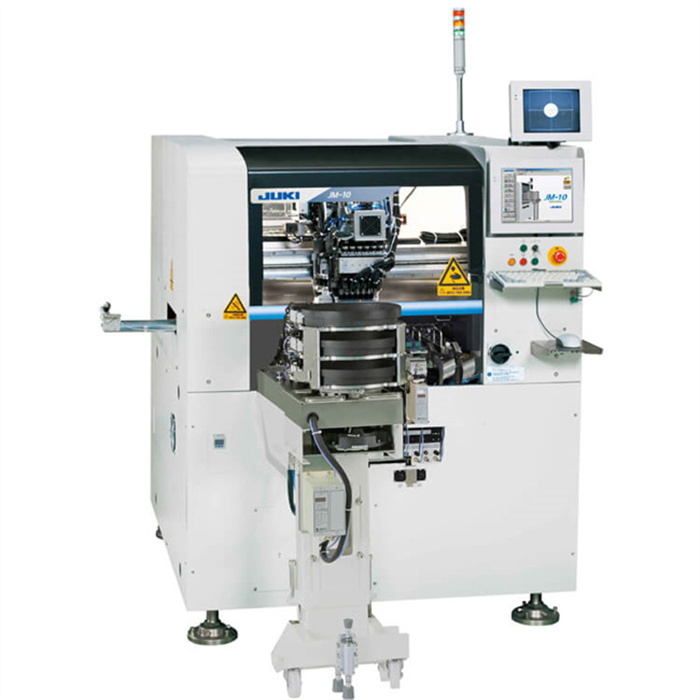

JUKI FX-1R High Speed Modular Mounter Picture Show:
EXHIBITION:
SMT LINE:
