SMT Placement Solution Smd Mounting Machine JUKI KE-2080 High Speed Chip Shooter Led Pick and Place Machine For SMT Assembly Line SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
JUKI KE-2080 Hight-Speed Flexible Mounter Technical Parameters :
Modle Name
KE-2080
Board size
M-size
330×250mm
L-size
410×360mm
E-size
510×460mm*1
Component height
12mm,20mm,25mm
Component size
Laser recognition
0402 (01005) ～33.5mm
Vision recognition
1.0×0.5mm*3～48mm OR24×72mm
Placement speed
CHIP
15,400CPH
IPC9850
1,850CPH
IC
4,700CPH*3
Placement accuracy
Laser recognition
±0.05mm((Cpk ≥1))
Vision recognition
±0.03mm(±0.04mm when using MNVC)
Feeder inputs
Max. 80 on 8mm T/F
Power Supply
3-phaseAC200-415 V
Apparent Power
Max .3.0kVA
Operation Air Preasure
0.5±0.5Mpa
Air Consumption
Max .403L/min
Mass(Kg)
Approx. 1,540Kg
Machine dimensions (W×D×H)
M-size
1,400x1,393x1,440mm
L-size
1,500x1,500x1,440mm
E-size
1,730x1,600x1,440mm
JUKI KE-2080 Hight-Speed Flexible Mounter Details:
JUKI KE-2080 Hight-Speed Flexible Mounter The best flexible placement system for high-density placements. The ultra-flexible KE-2080 can place a wide range of components from 0402 (01005) and ICs, to odd-form, all at industry leading accuracy and speed.
Features:
The ultra-flexible KE-2080 can place a wide range of components from 0402(01005) and ICs, to odd-form, all at industry leading accuracy and speed.
- One multi-nozzle laser head (6 nozzles) plus one high resolution head (1 nozzle)
- Vision centering system (featuring bottom, side, and back lighting, all ball recognition and split recognition)
- Component size- Laser recognition 0402 (01005) ~ 33.5mm, Vision recognition Standard camera ?3mm ~ ?74mm or 50×150mm, High-resolution camera (option) 1.0×0.5mm*3 ~ ?48mm or 24×72mm

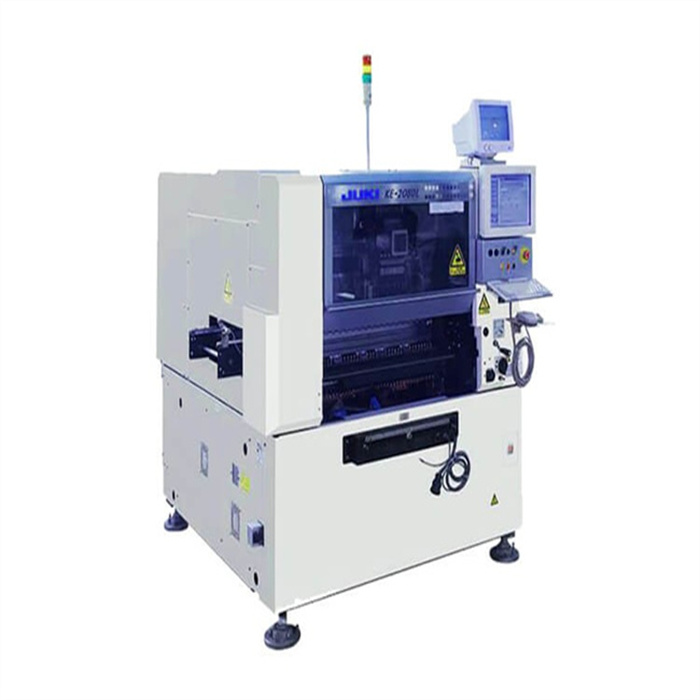

JUKI KE-2080 Hight-Speed Flexible Mounter Picture Show:
EXHIBITION:
SMT LINE:
