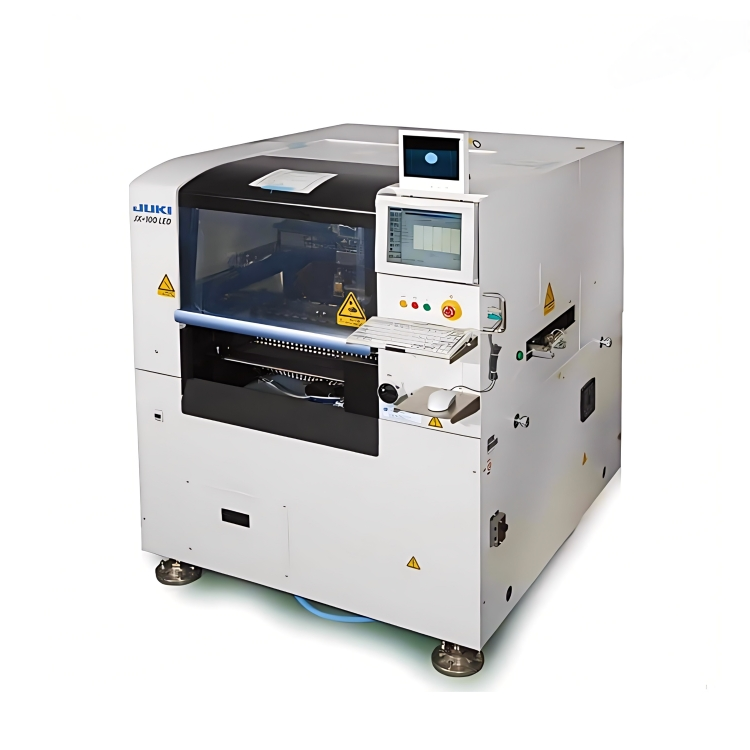

JUKI JM-100 Multitask Platform SMT Insertion Machine For SMT Machine Line

Model:JM-100

Standard

Board size:1 time clumping 50×50~410×360mm

Board size:2 time clumping 50×50~800×360mm

Head:8Head

PCB Weight:Max.4kg

Component height:Max.30mm

Component Size:Laser recognition 0603~50mm

Component Size:Vision recognition 3mm~50mm

Insertion Speed:Vacuum*2 0.6sec/part*1*3*4

Insertion Speed:grip 0.8sec/part*2*3*4

Placement Speed(SMT):Chip (Optimum)16,000CPH*3*4

Placement Accuracy(SMT):Laser recognition ±0.05mm(3σ)

Placement Accuracy(SMT):Vision recognition*1 ±0.04mm

Power Supply:3-Phase AC200~415V

Apparent Power:Max .2.2KVA

Operation Air Preasure:0.5±0.5Mpa

Air Consumption:75L/min

Equipment Size (W×D×H)*4:1,500x1,500x1,450mm

Mass(Kg):Approx. 1,300Kg

  • SMT machine line  customer

  • SMT machine line  customer

  • SMT machine line  customer

  • SMT machine line  customer

  • SMT machine line  customer

SMT Placement Solution Smd Mounting Machine JUKI Multi task Platform JM-100 SMT Insertion Machine Led Pick and Place Machine For SMT Assembly Line SMT Machine Line

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

JUKI JM-100 Multitask Platform Technical Parameters :

Modle Name

JM-100

Standard specification

Standard specification (Lsize PWB)

Clinch specification (Lsize PWB)





With using Clinch unit

Without using Clinch unit

Board size

1 time clumping

50×50~410×360mm

80×100~410×360mm

80×50~410×360mm



2 time clumping

50×50~800×360mm

80×100~800×360mm

80×100~800×360mm

Head

8Head

PCB Weight

Max.4kg

Component height

Max.30mm

Component Size

Laser recognition

0603~50mm



Vision recognition

3mm~50mm

Insertion Speed

(Insertion components)

Vacuum*2

0.6sec/part*1*3*4



grip

0.8sec/part*2*3*4

Placement Speed

(SMT)

Chip ( Optimum)

16,000CPH*3*4

Placement Accuracy

(SMT)

Laser recognition

±0.05mm(3σ)



Vision recognition*1

±0.04mm

Feeder Capacity

56 pcs (8mm tape)

Power Supply

3-Phase AC200~415V

Apparent Power

Max .2.2KVA

Operation Air Preasure

0.5±0.5Mpa

Air Consumption

75L/min

Equipment Size (W×D×H)*4

1,500x1,500x1,450mm

Mass(Kg)

Approx. 1,300Kg

JUKI JM-100 Multitask Platform Details:

JM-100 Multitask Platform

JUKI INSERTION SOLUTIONS consists of odd-shape placement machines to meet different insertion requirements. JUKI THT machines, which boast high accuracy, speed, reliability and flexibility, can easily automate your hand-mount process.

Speed

JUKI’s JM-100 convinces with industry leading speed. The insertion speed of the THT components is 0.6 seconds for the vacuum nozzle and 0.8 seconds for the gripper nozzle.

The new “Takumi head” has 8 nozzles and is equipped with a height-adjusting laser to optimize speed. This head can handle a wide range of components while maintaining the maximum speed.

Active Clinching

The new active clinching unit supports turn-in, turn-off and N-bend to prevent components from lifting during the reflow soldering process.
