MIRTEC MS-11 SMT LINE SPI Online 3D Solder Paste Inspection System

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

MIRTEC MS-11 SMT LINE SPI Technical Parameters :

Model MS-11
PCB Size Range
Single Stage Conveyor
Single Lane 50x50~510x510mm
Dual Lane 50x50~510x590 mm [Single] /50x50~510x300mm [Dual]
Triple Stage Conveyor [Option] Single Lane 50×50~330×510 mm/50×50~510×510mm
Inspection Capability
6 μm 0201 [mm] Solder Paste| ±2 mm Warpage
10 μm 0402 [mm] Solder Paste| ±3 mm Warpage
15 μm 0603 [mm] Solder Paste| ±5 mm Warpage
20 μm 0805 [mm] Solder Paste | ±6 mm Warpage
Inspection Technology
3D Inspection Technology Shadow Free -Moiré 3D Phase Step Image Processing
Height Resolution 0.1 μm
Height Accuracy On a Calibration Jig ±1%
Height Repeatability On a Calibration Jig ±0.5 μm
Volume Repeatability On a Calibration Jig ±2%
Solder Height
Maximum 600 μm [Option:650 μm]
Minimum 40 μm
Inspection Speed
25 Megapixel Camera CoaXPress 6μm 1800  mm²/Sec
15 Megapixel Camera
CoaXPress
10 μm 3,000  mm²/Sec
15 μm 6600  mm²/Sec
4 Megapixel Camera
Camera Link
10 μm 1,500  mm²/Sec
15 μm 3,400  mm²/Sec
20 μm 6,000  mm²/Sec
System Specification
Snftware
Standard Built-in SPC,Built-in Repair,GERBER PAD
Option RMS,RRS,IRS,OLTT,Remote SPC,ePM-SPI
PCB Top Side Clearance 20 mm
PCB Bottom Side Clearance 50 mm
PCB Thickness 0.5 mm~5 mm
Maximum PCB Weight 4 kg
Robot Positioning System X/Y Axis Seryo Motor System
Power Requirements Single Phase [s] 200~240V50~6OHz,1.1 kW
Air Requirements 5 Kgf /cm² [0.5 MPa] ,5 LPM
Dimension and Weight
Dimension
Machine 1,080 [W] x1,470 [D] x1,610 [H] mm
Width
[Machine G Conveyor]

Single Stage Conveyor 1,110 mm
Triple Stage Conveyor 1,270 mm [S size PCB] /1,630 mm [M size PCB]
Weight
Single Lane Approx.950 kg
Dual Lane Approx.1,000 kg
MIRTEC MS-11 SMT LINE SPI Details:


The MS-11 In-Line SPI System uses Shadow Free Moiré Phase Shift Imaging Technology to inspect solder paste deposition on PCBs post screen printing. The MS-11 will inspect for; insufficient solder, excessive solder, shape deformity, shift of deposition and bridging. The MS-11 is configured with a 10M pixel or the 15M pixel ISIS Vision System for enhanced image quality, superior accuracy and lightening fast inspection rates. The MS-11 uses the same robust platform as MIRTEC's MV-7 Series. Inspection heads are interchangeable between the two systems, adding ultimate flexibility to the inspection process.

  • Exclusive 15MP CoaXPress Camera System
  • Dual Projection Shadow Free Moiré Technology
  • Precision Compound Telecentric Camera Lens
  • Automated Z-Height Calibration System
  • Automated PCB Under Board Support System
  • Precision PCB Warpage Compensation
  • Closed Loop Communication With Screen Printer
  • Absolute Repeatability and Reproducibility
  • INTELLISYS® Industry 4.0 Intelligent Factory Automation System

Feature:

  • High Speed Precision In-Line SPI System.
  • FOUR or FIFTEEN MEGA PIXEL Digital Camera Technology.
  • Precision TELECENTRIC Compound Lens Design.
  • 10 Micron / Pixel Resolution.
  • 2 Micron Height Accuracy.
  • Volume Repeatability +/- 2%.
  • Extremely Simple Programming and Operation.

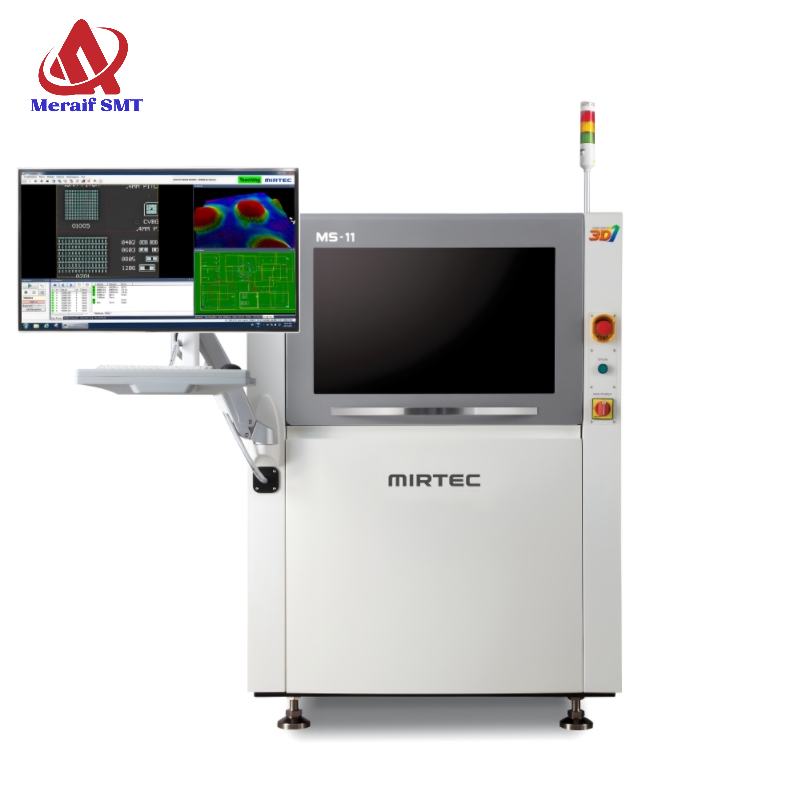

MIRTEC MS-11 SMT LINE SPI Picture Show:











EXHIBITION:

SMT LINE:
