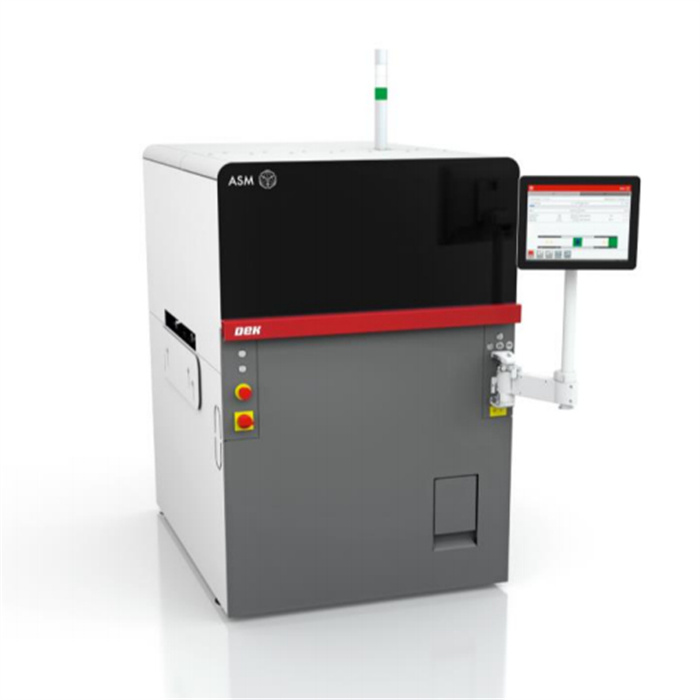

DEK Galaxy Fully Automatic SMT Screen Printer Technical Parameters :

Model	DEK Galaxy
Repeat accuracy	± 12.5 μm @ 2.0 Cpk (± 6 sigma)#
Printing accuracy	± 12.5 μm @ 2.0 Cpk (±6 sigma)#
Standard cycle time	7 sec
Maximum printing surface	510 mm* (X) x 508.5 mm (Y)
Maximum substrate size	620 mm (X)* x 508,5 mm (Y)#
Frame variants	305 mm to 736 mm (12″** to 29″), max. frame thickness: 38 mm
User interface	Touchscreen, keyboard and trackball, DEK Instinctiv V9TM software
Camera	HawkEye® 1700
Squeegee adjustment	Software controlled, motorised with closed loop feedback
Stencil positioning	Automatic loading incorporating squeegee drip tray
Stencil alignment	Motorised via actuators X, Y, and Theta
Printing speed	2 mm/sec to 300 mm/sec
Fiducial recognition	Automatic fiducial recognition, programmable from 0.1 mm to 3 mm
Understencil Cleaning	Cyclone high speed cleaner,fully programmable with wet/dry/vacuum wipe with external solvent tank
Compressed air supply	5-8 bar at 5 liters/minute
Power supply	110 V to 240 V ±10 %, 50/60 Hz
Weight	Approx. 680 kg
# DEK’s machine accuracy and repeatability qualification is certified by 3rd party and undertaken using production environment process variables. Print Speeds, Print Pressures, Rising Table and Camera Movements are included in the process capability figure.* For print area up to 600 mm long please contact the Product Manager.

DEK Galaxy Fully Automatic SMT Screen Printer Details:

Advanced semiconductor packaging and high precision SMT assembly convergence.

Galaxy unites advanced semiconductor packaging and high precision next-generation SMT assembly on the same platform. This level of convergence delivers the advanced technological capabilities that are essential for emerging packaging technologies and assembly challenges. Equipped to handle a range of high accuracy applications at wafer, substrate and board level, Galaxy is ideal for complex packages such as flip-chips, uBGAs and ultra fine pitch SMT.

Galaxy addresses the ever present need for resource maximisation, as it can be configured and easily re-deployed to host a number of different packaging processes including wafer bumping, ball placement, singulation, thermal interface material (TIM) deposition and backside wafer coating.  The system is compatible with industry-standard handling formats such as FOUPS or Auer boards, plus wafer chucks and DEK's Virtual Panel Tooling (VPT).

Delivering unprecedented flexibility; Galaxy’s immense capability and broad compatibility, combined with fast changeover, create a process-agnostic platform capable of rapid reassignment as business demands dictate. DirEKt Ball Attach to wafers or substrates, at ball diameters down to 0.2mm; wafer bumping by solder paste printing; SMT pre-placement for next generation assemblies including "silicon dust" components: deploy - and re-deploy - at will.

Standalone, or as part of a turnkey process configured by DEK specialists, Galaxy is the ultimate performer.

Features:

• 7 seconds cycle time
• 2.0Cpk repeatability @ ± 12.5μm
• New product set-up in under 10 mins
• High accuracy applications at wafer, substrate and board level
• True remote operation, monitoring and diagnostics operating at the pinnacle for extended periods with only minimal, cost-effective maintenance and adjustment
• Instinctiv™ V9 software enables faster setup and first time print, lower operatortraining requirements, easier error avoidance and recovery
• Advanced mechanical features including linear motor technology enhance speed, accuracy and reliability
• Standard tooling bed accepts all compatible tooling options including Virtual Panel Tooling for arrayed singulated substrates
• Fast changeover (2 mins) for rapid reassignment as business demands dictate
• ProFlow® DirEKt Imaging technology enables predictable, repeatable ball placement for solder balls as small as 0.2mm for first pass yields above 99.9%
• Advanced optics and lighting for faultless optical inspection at high-throughput
• SMEMA-compatible interfaces support easy integration with DEK wafer loading and substrate fluxing solutions, as well as back-end equipment
