MERAIF MFSC-1200 PCB Conveyor PCB Shuttle Conveyor SMT Loader PCB Loader SMT Line Conveyor SMT Conveyor Shuttle Conveyor System For SMT Assembly Machine
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF Automated PCB Assembly Machines Parameters:
Model
MFSC-1200
MFSC-2500
Type
Single vehicle Transfer Machine
Dual vehicle transfer machine
Overall Dimensions(L*W*H)
(1200-5000)x600x1100mm
(2500-5000)x600x1100mm
PCB Width
450x(50-350)mm
Maximum Power
450W
900W
Way Of Fixing Guide
Front fixation/Rear fixation
Cycle Time
10m/s
PCB Transport Height
900±20 (or user specified)
Transfer Direction
Left→right or right→left
Belt Type
Round/flat belt(ESD) Optional
Translation Velocity
Approx.0.5m/s
Repetitive motion accuracy
<0.5mm
Input voltage
AC 220V/50-60Hz
Control operating system
Touch screen +PLC programmable controller
Weight(kg)
150kg-350kg
MERAIF Automated PCB Assembly Machines Details:
MERAIF Loader MFSC-1200 Automated PCB Assembly Machines
Fully Automatic PCB Translation PCB Shuttle Conveyor
This device is used to change the direction of the PCB board at the turning point or intersection of the production line.
Features
-
Robust and stable design,PLC control system
-
Compatible with SMEMA interfaces
-
Fast,smooth,and accurate positioning
-
Parallel and smooth width adjustment
-
Man-machine interface control panel for easier operation
Fully Automatic PCB Translation PCB Shuttle Conveyor
This device is used to change the direction of the PCB board at the turning point or intersection of the production line.
Features
- Robust and stable design,PLC control system
- Compatible with SMEMA interfaces
- Fast,smooth,and accurate positioning
- Parallel and smooth width adjustment
- Man-machine interface control panel for easier operation

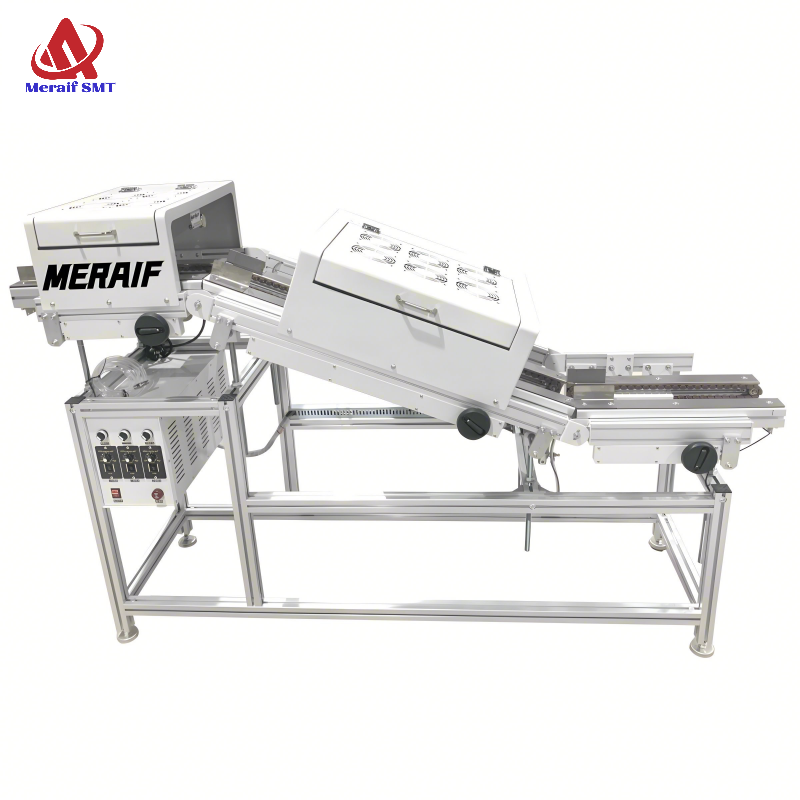

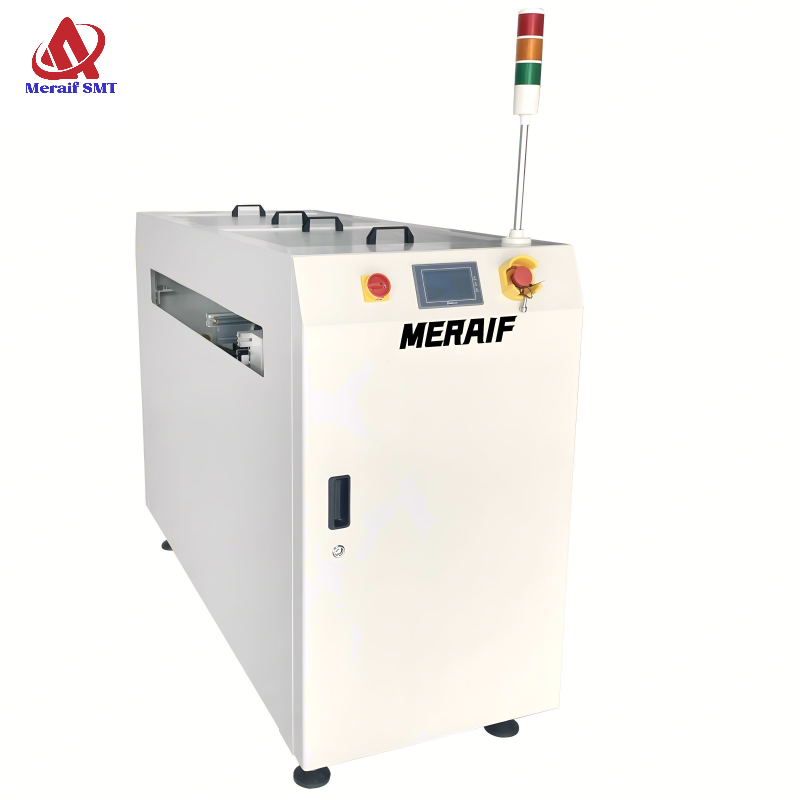

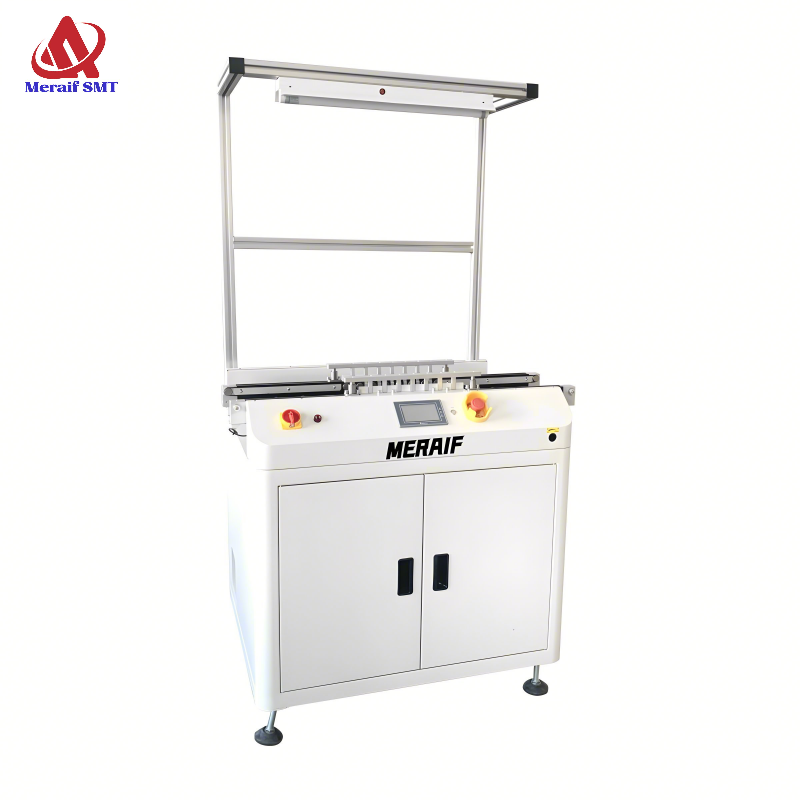

MERAIF Automated PCB Assembly Machines Picture Show:
