SMT Unloader machine PCB Unloader for SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
SMT Unloader machine PCB Unloader Technical Parameters:
|
Model:MFU-250 Automatic PCB Unloader |
|
Machine size:1100x780x1200 |
|
Control module: Siemens PLC industrial control |
|
Frame time: about 6 seconds |
|
Tank replacement time: about 20 seconds |
|
Power and load: 220v/0.3kw |
|
Air pressure and flow: 4-6bar, ≤10L/min |
|
Transmission height: 920±20mm |
|
Transmission direction: left to right or right to left |
|
Circuit board thickness: ≥0.4mm |
|
Step selection: 1-4 (10mm step) |
|
Sensor brand: Omron |
|
Stepper and transport motors: Taiwan CUHK |
|
Frame size: 355x320x563 |
|
Fault detection: I/O signal detection |
|
Equipment weight: 140kg |
|
PCB allowable size: (50-50) x (350x250) |
SMT Unloader machine PCB Unloader Details:
SMT PCB loader and unloader machine have a stable design of the casting lifting table structure, which improves the stability of the equipment. The control system with independent intellectual property rights, multi-functional electrical circuits and programming, and stable performance ensure the smoothness of the production line. Standard SMEMA communication interface can communicate with other automation equipment. SMT loader machine plays a very important role in the SMT assembly line.
The SMD/SMT loader and unloader machine are used as the board loading device for producing circuit boards. It can be used with the standard material box to automatically send the circuit boards stored in the material box to the production line one by one. The pick and place feeder can be used for various circuit boards of different sizes and has wide applicability, high productivity.

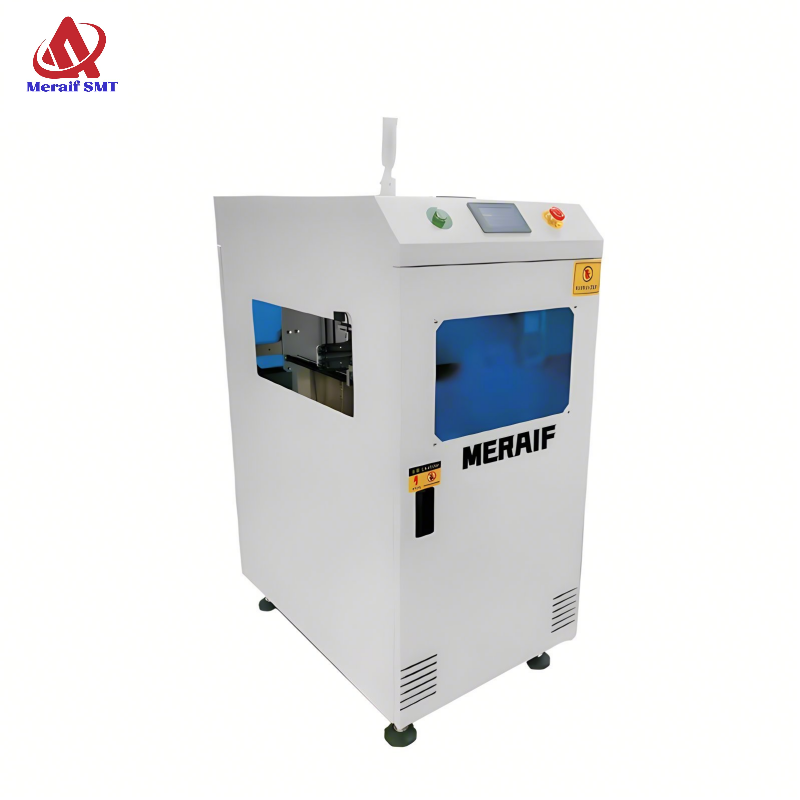

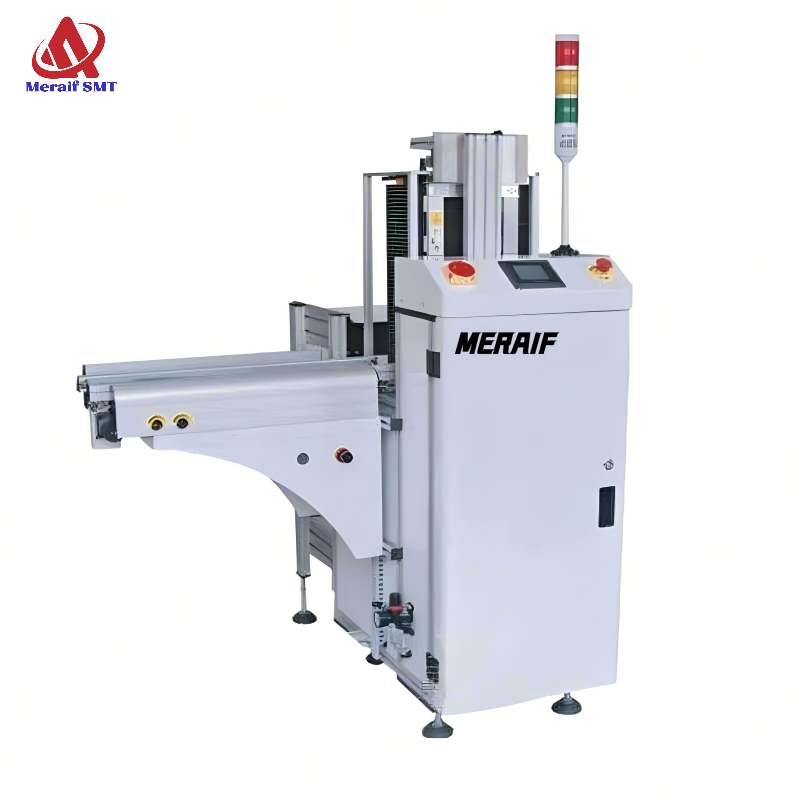

SMT Unloader machine PCB Unloader Picture Show:
EXHIBITION:
SMT LINE:
