MERAIF MF-Q380A Automatic PCB Cutting Machine Board Cutter Machine PCB Separator PCB Board Cutting Machine

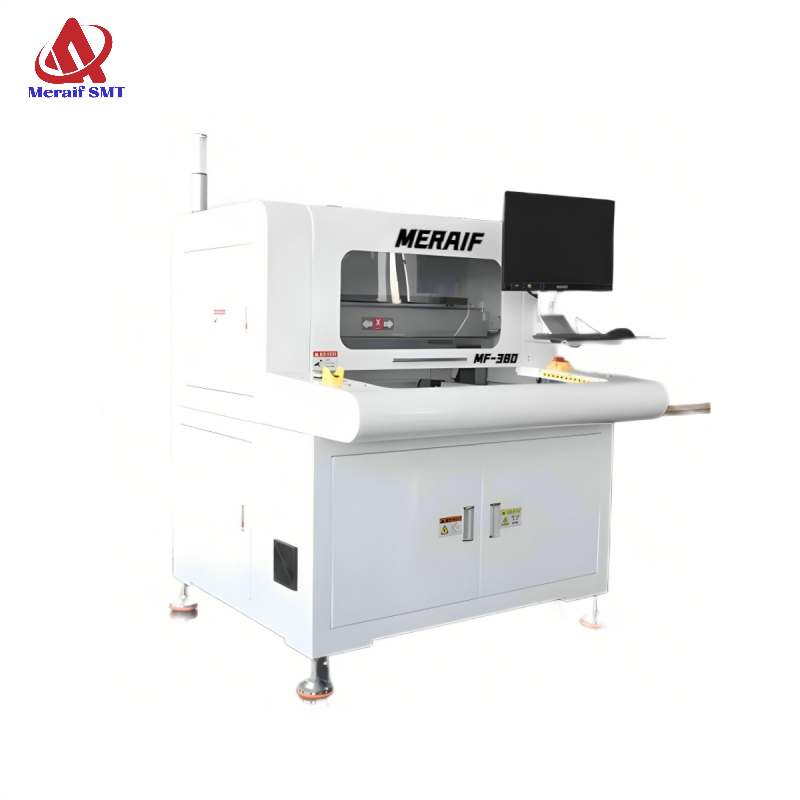

MERAIF MF-Q380A PCBA Cutting Machine

Model:Q380A

Effective cutting size:350*250MM

Cutting function:V grooves, stamp holes, bridges and circles, etc.

Cutting accuracy:±0.05MM

Repeatability:±0.01MM

Maximum movement speed:X,Y1,Y2：1000mm/s、Z:800mm/s

Spindle speed:MAX:60000rpm

Tool monitoring:Automatic tool sinking, tool breakage and sliding tool detection

Cutting speed:5～100mm/s(Adjustable)

PCB cutting thickness:0.3-3.0MM

X、Y1、Y2、ZShaft drive method:PanasonicA6 series servo drive

Applicable milling cutter size:0.8～3.0MM

Power Specifications:AC220V 50/60HZ1-phase

Cutting host size:L*W*H(1180mm*1180mm*1350mm)

Cutting host weight:800kg

Dust collector power:3HP

Dust collector power supply specifications:AC380V3-phase

Dust collector size:L*W*H（665mm*635mm*1610mm）

Dust collector weight:155kg

Dust collection method:Lower dust collection/upper dust collection (optional)

Product Description

MERAIF MF-Q380A Automatic PCB Cutting Machine Board Cutter Machine PCB Separator PCB Board Cutting Machine

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

Manual PCB Depanelizer Manual PCB cutting machine Technical Parameters:

Model	Q380A
Effective cutting size	350*250MM
Cutting function	V grooves, stamp holes, bridges and circles, etc.
Processing table	Double countertop
Cutting accuracy	±0.05MM
Repeatability	±0.01MM
Maximum movement speed	X,Y1,Y2：1000mm/s、Z:800mm/s
Brand	V knife+domestic
Tool change mode	Manual
Spindle speed	MAX:60000rpm
Tool monitoring	Automatic tool sinking, tool breakage and sliding tool detection
cutting speed	5～100mm/s(Adjustable)
PCB cutting thickness	0.3-3.0MM
Program teaching method	Whole board puzzle, picture drawing and teaching
control method	PC precision six-axis control system
X、Y1、Y2、ZShaft drive method	PanasonicA6 series servo drive
Applicable milling cutter size	0.8～3.0MM
Power Specifications	AC220V 50/60HZ1-phase
Cutting host size	LWH(1180mm1180mm1350mm)
Cutting host weight	800kg
Dust collector power	3HP
Dust collector power supply specifications	AC380V3-phase
Dust collector size	LWH（665mm635mm1610mm）
Dust collector weight	155kg
Dust collection method	Lower dust collection/upper dust collection (optional)

Manual PCB Depanelizer Manual PCB Cutting MachineDetails:

Feature:

1.The nether linear blade is used to fix the PCB V-cut ,the upper circular blade moves to separ-

ate the PCB. By pressing the foot-pedal to control the action of circular blade.

2.Adopt step motor,can separate all kinds of V-cut PCB 3.Max separate length 1200mm (400mm,600mm,900mm,1200mm is optional)

4.The stroke of the upper circular blade can preset .(setting rang :Between any two groups of 0,100 ,200,300,400mm )

5.Blade moving speed can switch between 300mm/s and 500mm/s.

6.The gap between two blades is easy to adjust

7.Operation is very safe, the circular blade is covered by material ,avoid the blade hurting hand. Also can install an sensor ,when hand or foreign matter enter into the working area,it will stop immediately.

8.Blade material is SKH7 from Sweden,long lifetime.During cutting,it can effectively decrease cutting stress to avoid welding spot cracking.

9.Available PCB thickness:0.5-3.2mm

10.PCB V-cut thickness:0.2-0.8mm

Manual PCB Depanelizer Manual PCB Cutting Machine Picture Show:

EXHIBITION:

SMT LINE:
