MERAIF MF-Q360A Automatic PCB Cutting Machine Board Cutter Machine PCB Separator PCB Board Cutting Machine

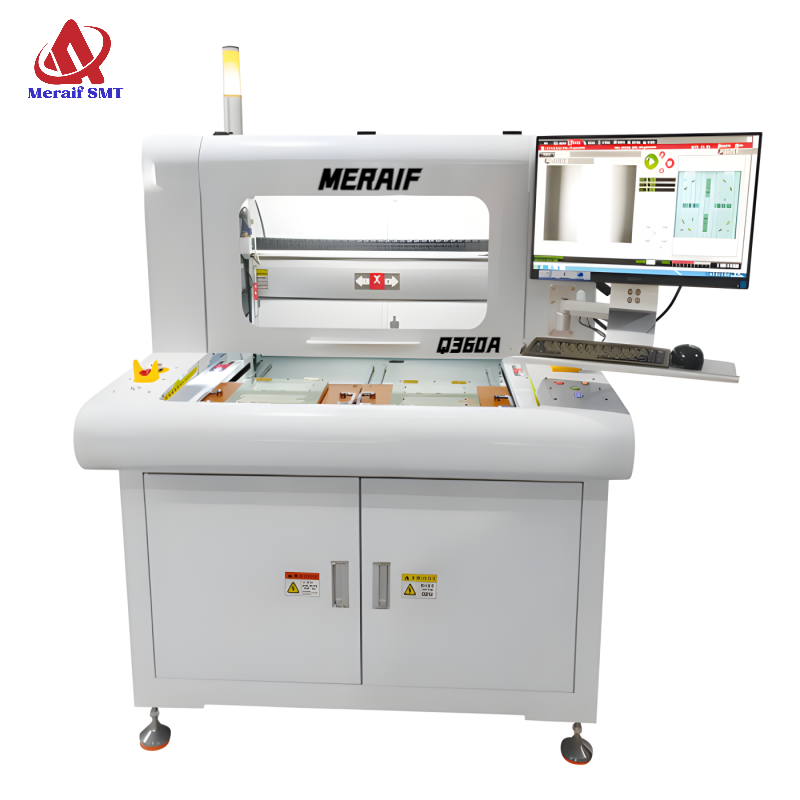

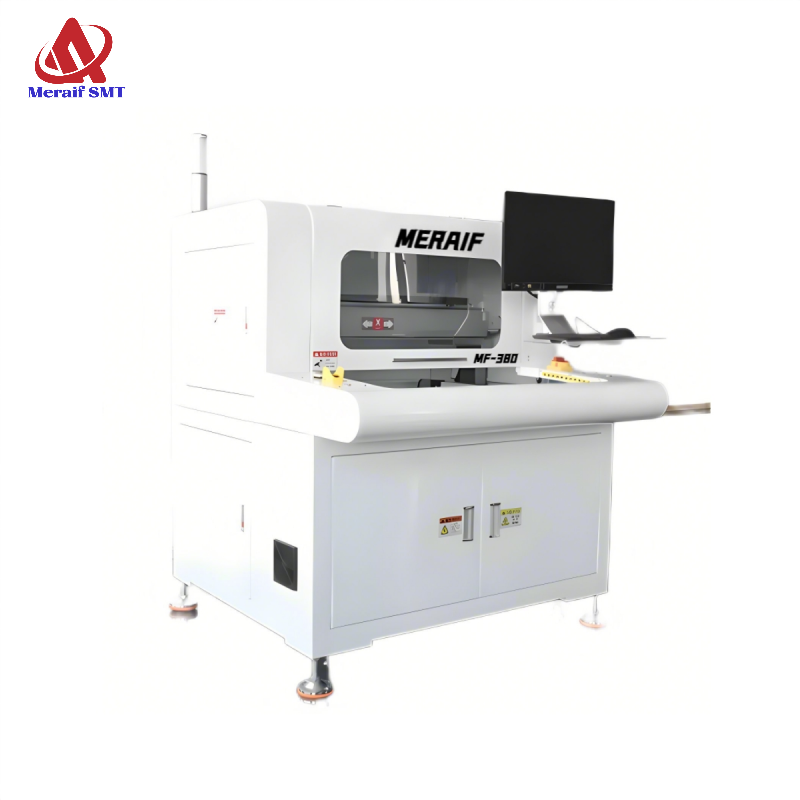

MERAIF MF-Q360A PCBA Cutting Machine

Model:MF-Q360A

Effective cutting size:370*380MM

Cutting function:Straight lines, points, arcs and circles, etc.

Cutting accuracy:±0.02MM

Repeatability positioning accuracy:±0.01MM

Maximum movement speed:X,Y1,Y2： 1000mm/s、Z:800mm/s

Spindle speed:MAX:60000rpm

Cutting speed:5~100mm/s(Adjustable)

PCB cutting thickness:0.3-3.0MM

Program teaching method:Whole board puzzle, picture line drawing teaching

Control method:PC precision four-axis control system

X, Y1, Y2, Z axis drive mode:PanasonicA6 series servo drive

Applicable milling cutter size:0.8~3.0MM

Host power specifications:AC220V 50/60HZ Single

Cutting host size:L*W*H(1180mm*1180mm*1350mm)

Cutting host weight:800kg

Dust collector power;3HP

Dust collector power supply specifications:AC380V3-phases

Dust collector size:L665mm*W635mm*H1610mm

*Dust collector weight:155kg

Dust collection method:Lower dust collection/upper dust collection (optional)

Product Description

MERAIF MF-Q360A Automatic PCB Cutting Machine Board Cutter Machine PCB Separator PCB Board Cutting Machine

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

Manual PCB Depanelizer Manual PCB cutting machine Technical Parameters:

Model	MF-Q360
Effective cutting size	370*380MM
Cutting function	Straight lines, points, arcs and circles, etc.
Processing table	Double countertop
Cutting accuracy	±0.02MM
Repeatability positioning accuracy	±0.01MM
Maximum movement speed	X,Y1,Y2： 1000mm/s、Z:800mm/s
Spindle	Domestic
Screw/guide rail	Taiwan TBI grinding screw/Taiwan Shangyin guide rail
CCDcamera	Hikvision high speed camera
Electrostatic treatment	Static eliminator (high frequency ion air nozzle)
Tool change mode	Manual tool change
Spindle speed	MAX:60000rpm
Tool monitoring	Automatic tool sinking, tool breakage and tool detection
cutting speed	5~100mm/s(Adjustable)
PCB cutting thickness	0.3-3.0MM
Program teaching method	Whole board puzzle, picture line drawing teaching
Control method	PC precision four-axis control system
X, Y1, Y2, Z axis drive mode	PanasonicA6 series servo drive
Industrial control host	Industrial computer (WIN10)
Applicable milling cutter size	0.8~3.0MM
Host power specifications	AC220V 50/60HZ Single
Cutting host size	LWH(1180mm1180mm1350mm)
Cutting host weight	800kg
Dust collector power	3HP
Dust collector power supply specifications	AC380V3-phases
Dust collector size	L665mmW635mmH1610mm
*Dust collector weight	155kg
Dust collection method	Lower dust collection/upper dust collection (optional)

Manual PCB Depanelizer Manual PCB Cutting Machine Details:

Feature:

1.The nether linear blade is used to fix the PCB V-cut ,the upper circular blade moves to separ-

ate the PCB. By pressing the foot-pedal to control the action of circular blade.

2.Adopt step motor,can separate all kinds of V-cut PCB 3.Max separate length 1200mm (400mm,600mm,900mm,1200mm is optional)

4.The stroke of the upper circular blade can preset .(setting rang :Between any two groups of 0,100 ,200,300,400mm )

5.Blade moving speed can switch between 300mm/s and 500mm/s.

6.The gap between two blades is easy to adjust

7.Operation is very safe, the circular blade is covered by material ,avoid the blade hurting hand. Also can install an sensor ,when hand or foreign matter enter into the working area,it will stop immediately.

8.Blade material is SKH7 from Sweden,long lifetime.During cutting,it can effectively decrease cutting stress to avoid welding spot cracking.

9.Available PCB thickness:0.5-3.2mm

10.PCB V-cut thickness:0.2-0.8mm
