SMT Printer Machine GDK MXE PLUS SMT Screen Printer Automatic Stencil Printer Machine SMT Solder Paste Printer For SMT Machine Line SMT Assembly Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
GDK MXE PLUS Fully Automatic SMT Screen Printer Technical Parameters :
Model
GDK MXE PLUS
PCB parameters
Max. board Size(X x Y)
530x510mm
Min. board Size(X x Y)
50x50mm
PCB thickness
0.4~6mm
Warpage
≤1%Diagonal
Max. board weight
5Kg
Board margin gap
Configuration to 3mm
Max. bottom gap
20mm
Transfer speed
1500mm/s(Max)
Transfer height from the ground
900±40mm
Transfer orbit direction
L-R,R-L,L-L,R-R
Transfer mode
One stage Conveyor
PCB damping method
Automatic adjustment of PCB thickness + Programmable elastic side clamp (Option:1.Edge locking base plate
pressing;2.Bottom integral cavity vacuum;3.Bottom multi-point local vacuum)
Support method
Magnetic thimble, Equal high block,etc.(Optional:1.Vacuum Chamber;2.Special workpiece fixture)
Printing parameters
Printing head
Floating intelligent printing head (two independent direct connected motors)
Template frame size
470x370~737x 737mm
Max. printing area(X x Y)
530x510mm
Squeegee type
Steel scraper/Glue scraper(Angel 45°/50°/60° matching the printing process)
Squeegee length
300mm(optional with length of 200mm-550mm)
Squeegee height
65±1mm
Squeegee thickness
0.25mm Diamond-like carbon coating
Printing mode
Single or double scraper printing
Demoulding length
0.02-12 mm
Printing speed
0 ~ 200 mm/s
Printing pressure
0.5kg - 10Kg
Printing stroke
±275 mm (From the center)
Cleaning parameters
Cleaning mode
1.Programmable washer fluid injection system; 2. Dry, wet and vacuum modes
Length of cleaning and wiping board
300mm+510mm
(optional with 400mm, 450mm, 500mm)
Image parameters
Field of view
8x6mm
Platform adjustment range
X:±5.0mm,Y:±7.0mm,θ:±2.0°
Benchmark point type
Standard shape benchmark point (SMEMA standard), solder pad/openings
Camera system
Independent camera,upwards/downwards imaging vision system,geometric matching location
Performance parameters
Repetition image calibration
±10.0μm @6 σ,Cpk ≥ 2.0
Repetition printing
±15.0μm @6 σ,Cpk ≥ 2.0
Cycle time
<7.5s(Exclude printing and cleaning)
Product changeover
<5min
Equipment
Power requirements
AC220V±10%,50/60HZ,15A
Compressed air requirements
4~7Kg/cm2
Operating system
Windows 7(Optional WIN10)
External dimension
1,220(L) x1,530(W) x 1,520(H)mm(Without light,monitor and keyboard)
Machine weight
Appro.1100Kg
GDK MXE PLUS Fully Automatic SMT Screen Printer Details:
Easy to learn and use
High precision and high stability
With CE Certificate/ Award Certificate/ Software work Certificate/ Software ework Certificat/ Certificate of Authorization.

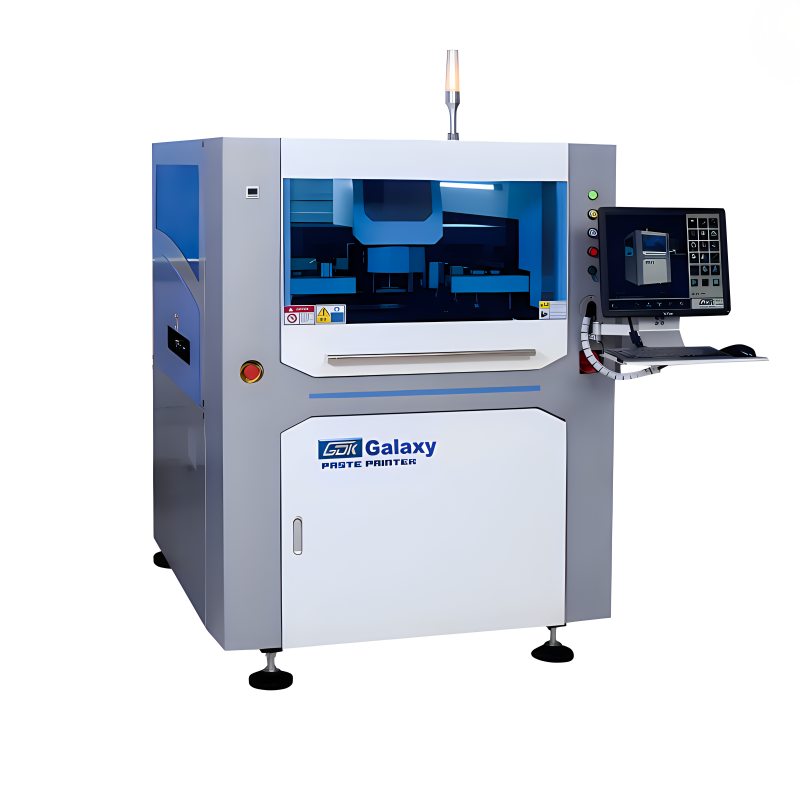

GDK MXE PLUS Fully Automatic SMT Screen Printer Picture Show:
Exhibition:
SMT LINE:
