SMT Printer Machine GDK 5M SMT Stencil Printer Automatic Screen Printing Machine SMT Solder Paste Printer For SMT Machine Line SMT Assembly Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
GDK 5M Fully Automatic SMT Stencil Printer Technical Parameters :
Model
GDK 5M
PCB boarding Handling Paramater
Max. board Size(X x Y)
530x510mm
Min. board Size(X x Y)
50x50mm
PCB thickness Range
0.4~6mm
PCB Warpage
≤1%Diagonal
Max. board weight
5Kg
PCB edge clearance
Configuration to 3mm
PCB bottom clearance
20mm
Conveyor speed (Max.)
1500mm/s(Max)
Conveyor height
900±40mm
Conveyor direction
L-R,R-L,L-L,R-R
Transfer mode
One stage Conveyor
PCB Clamping method
Support method
Magnetic thimble + Equal high block.(Optional:1.vacuum suction cavity;2.special workpiece fixture)
Printing parameters
Printing head
Floating intelligent printing head (two independent direct connected motors)
Stencil frame size
470x 370~737x737 mm
Max. printing area(X x Y)
530x510mm
Squeegee Material/Angle
Steel squeegee/ Rubber squeegee(Angel 45°/50°/60° matching the printing process)
Squeegee length
300mm+520mm(optional with length of 200mm-550mm)
Squeegee height
65±1mm
Squeegee thickness
0.25mm Diamond-like carbon coating
Print mode
Single or dual squeegee printing
Demoulding length
0.02-12 mm
Print speed
0 ~ 200 mm/s
Print pressure
0.5-10Kg
Print stroke
±275 mm(From the center)
Cleaning parameters
Cleaning system
1.Programmable washer fluid injection system; 2. Dry, wet and vacuum modes
Length of cleaning and wiping board
300mm+500mm(optional with 400mm, 450mm)
Optical System
Field of view
8x6mm
Printing table adjustment range
X:±5.0mm,Y:±7.0mm,θ:±2.0°
Fiducial Types
Standard Fiducial type(Circle, triangle, square, diamond, cross)(SMEMA standard),solder pad/openings
Vision methodology
Independent camera,upwards/downwards imaging vision system,geometric matching location
Performance parameters
Machine Alignment repeatability
±10.0μm @6 σ,Cpk ≥ 2.0
Full process repeatability
±15.0μm @6 σ,Cpk ≥ 2.0
Core Cycle time
7.5s(Exclude printing and cleaning)
Product Changeover Time
<5min
Equipment
Power supply
AC220V±10%,50/60HZ,15A
Air supply
4~6Kg/cm²
Air Consumption
About 5L/min
Operating system (OS)
Windows XP (Option Win 7 & WIN10)
External dimension
1,220(L) x1,530(W) x 1,520(H)mm(Without light,monitor and keyboard)
Machine weight
Appro.980Kg
User Permission
Different users have different permissions (fingerprint identification entering / password input)
Environment temperature
23±3°C
Relative humidity
45~70%RH4
GDK 5M Fully Automatic SMT Stencil Printer Details:
GDK Full Automatic SMD Stencil Printing Machine PCBA Board Solder Paste Screen Printer GDK 5m for SMT Assembly Line
Max. board Size(X x Y):530mm x 510mm
Stencil frame size:470mm x 370mm~737 mm x 737 mm
Cleaning system:1.Programmable washer fluid injection system; 2. Dry, wet and vacuum modes
Machine Alignment repeatability :±10.0μm @6 σ,Cpk ≥ 2.0
Full process repeatability: ±15.0μm @6 σ,Cpk ≥ 2.0

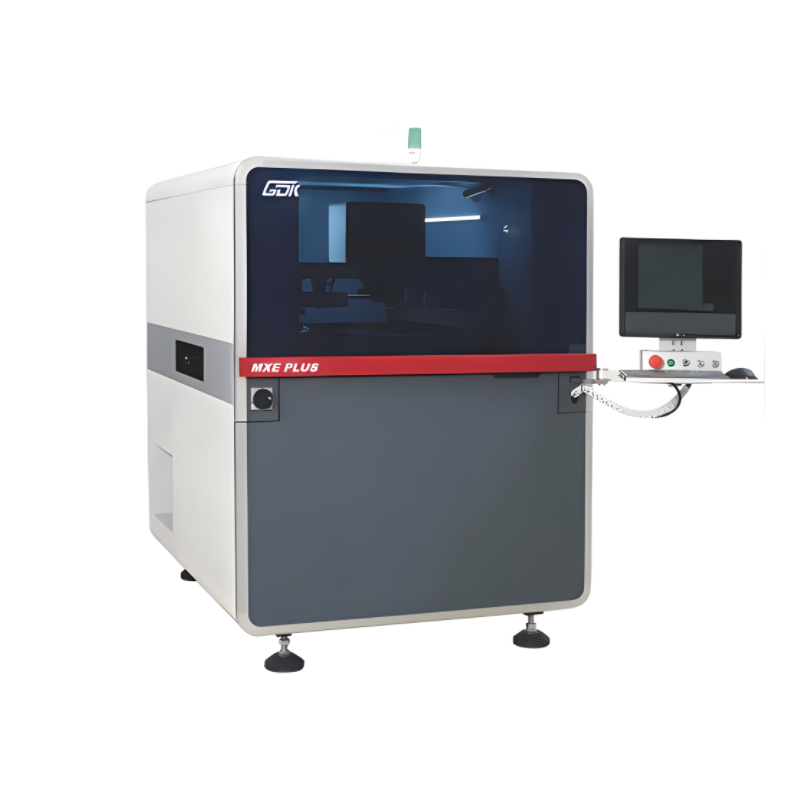

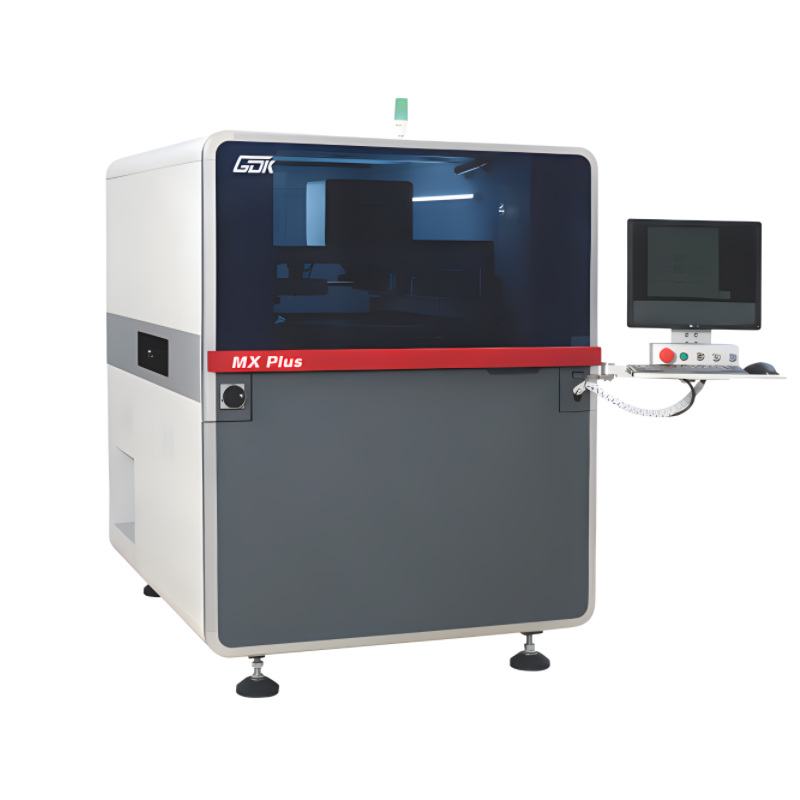

GDK 5M Fully Automatic SMT Stencil Printer Picture Show:
Exhibition:
SMT LINE:
