SMT Printer Machine GDK Prostar SMT Stencil Printer Automatic Screen Printing Machine SMT Solder Paste Printer For SMT Machine Line SMT Assembly Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
GDK Prostar Fully Automatic SMT Stencil Printer Technical Parameters :
Model
Prostar(GD450+)
PCB parameters
Max. board size(X x Y)
650mm x 610mm
Mini. board size(X x Y)
50mm x 50mm
PCB thickness
0.4mm~6mm
Warpage
Max. PCB Diagonal line 1%
Max. board weight
10Kg
Board margin gap
Configuration to 3mm
Max. bottom gap
15mm
Transfer speed
1500mm/s(Max)
Transfer height from the ground
900±40mm
Transfer orbit direction
L-R,R-L,L-L,R-R
Transfer mode
One stage orbit
PCB damping method
Programmable elastic side clamp + automatic adjustment plate thickness + edge locking base plate pressing + bottom integral cavity type vacuum (option: 1. Bottom multi-point local vacuum)
Support method
Magnetic thimble, Equal high block,etc.(Optional:1.Vacuum suction cavity;2.Special workpiece fixture)
Printing parameters
Printing head
Floating intelligent printing head (two independent direct connected motors)
Template frame size
650x550~800x800mm
Max. printing area(X x Y)
650x610mm
Squeegee type
Steel scraper/Glue scraper(Angel 45°/50°/60° matching the printing process)
Squeegee length
300~620mm (optional with length of 200-650mm)
Squeegee height
65±1mm
Squeegee thickness
0.25mm Diamond-like carbon coating
Printing mode
Single or double scraper printing
Demoulding length
0.02-12 mm
Printing speed
0 ~ 200 mm/s
Printing pressure
0.5-10Kg
Printing stroke
±325 mm(From the center)
Image parameters
Field of view
8x6mm
Platform adjustment range
X:±7.0mm,Y:±8.0mm,θ:±2.0°
Benchmark point type
Standard shape benchmark point(SMEMA standard),solder pad/openings
Camera system
Independent camera,upwards/downwards imaging vision system, geometric matching location
Performance parameters
Repetition image calibration
±10.0 micron @6 σ,Cp ≥ 2.0
Repetition printing
±25.0 micron @6 σ,Cp ≥ 2.0
Cycle time
<8s
Product changeover
<5mins
Equipment
Power requirements
AC220V±10%,50/60HZ,15A
Compressed air requirements
4~6Kg/square centimetre, 10.0 Diameter of the tube
Operating system
Windows XP(Optional WIN7)
External dimension
1,220(L)x1,660(W)x1,540(H)mm(Excluding light,monitor and keyboard)
Machine weight
Approx.1000Kg
Temperature and humidity control module(Optional)
Environment temperat
23±3°C
Relative humidity
45~70%RH4
GDK Prostar Fully Automatic SMT Stencil Printer Details:

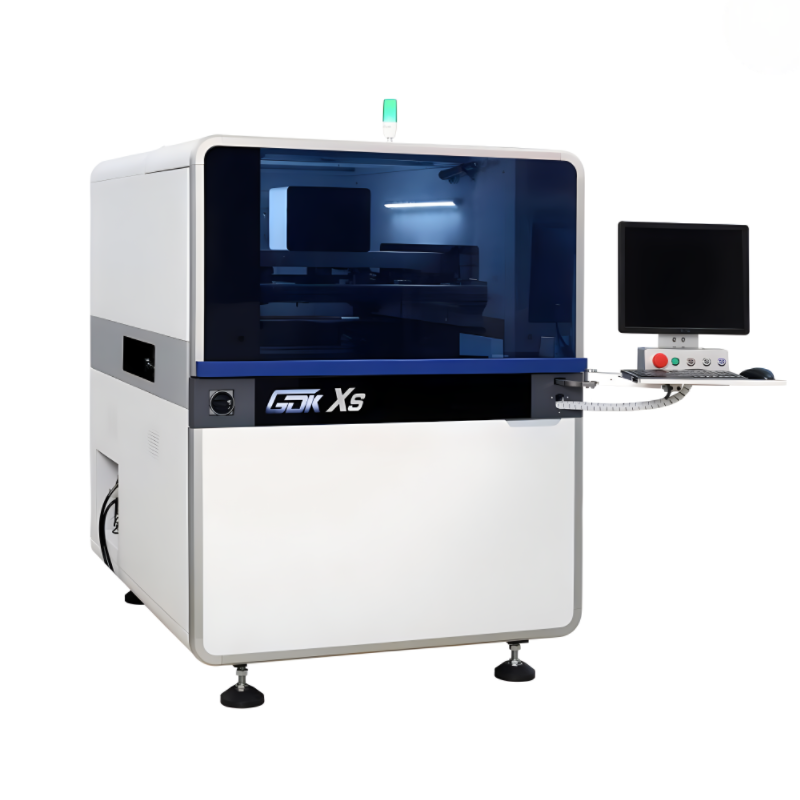

Prostar automatic solder paste printer which has the characteristics of high precision, high stability, high performance/price ratio and so on, is suitable for very large size PCB printing to 650x610mm.
