SMT Printer Machine GDK TSE SMT Stencil Printer Automatic Screen Printing Machine SMT Solder Paste Printer For SMT Machine Line SMT Assembly Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
GDK TSE Fully Automatic SMT Stencil Printer Technical Parameters :
Model
TSE
PCB parameters
Max. board size(X x Y)
450mm x 350mm
Mini. board size(Y x X)
50mm x 50mm
PCB Thickness
0.4mm~6mm
Warpage
Max. PCB ≤1%Diagonal
Maximum board weight
6Kg
Board margin gap
Configuration to 3mm
Max. bottom gap
20mm
Transfer speed
1500mm/s(Max)
Transfer height from the ground
900±40mm
Transfer orbit direction
L-R,R-L,L-L,R-R
Transfer mode
One stage orbit
PCB damping method
Programmable flexible side pressure, (Optional: 1,Bottom integral suction cavity vacuum, 2.Multipoint partial vacuum at the bottom; 3. Edge locking and Substrate clamping)
Support method
Magnetic thimble, Equal high block,Vacuum suction cavity; Special workpiece fixture
Printing parameters
Printing head
Linear motor type close loop printing head
Template frame size
470x 370~737x737mm
Maximum printing area(X x Y)
450mm x 350mm
Squegee type
Steel scraper/Glue scraper(Angel 45°/50°/60° matching the printing process)
Squegee length
220~500mm
Squegee height
65±1mm
Squegee thickness
0.25mm Diamond-like carbon coating
Printing mode
Single or double scraper printing
Demoulding length
0.02-12 mm
Printing speed
0 ~ 200 mm/s
Printing pressure
0.5kg - 10Kg
Printing stroke
±200 mm (From the center)
Image parameters
Field of view
6.4mm x 4.8mm
Platform adjustment range
X.Y:±7.0mm,θ:±2.0°
Benchmark point type
Standard shape benchmark point(SMEMA standard), solder pad/openings
Camera system
Independent camera,upwards/downwards imaging vision system
Performance parameters
Repetition precision of image calibration
±10.0micron @6 σ,Cpk ≥ 2.0
Repetition precision of printing
±20.0micron @6 σ,Cpk ≥ 2.0
Cycle time
<7s
Product changeover
<5mins
Equipment
Power supply
AC220V±10%,50/60HZ,15A
Air supply
4~6Kg/cm2, 10.0 Diameter of the tube
Gas consumption
About 5L/min
Operating system
Windows XP
External dimension
1140mm(L) x 1450mm(W) x 1480mm(H) (Without light,monitor and keyboard)
Machine weight
Approx.1000Kg
Temperature and humidity control module(optional)
Environment temperature
23±3˚C
Relative humidity
45-70%RH4
GDK TSE Fully Automatic SMT Stencil Printer Details:
SMT Full Automatic Screen Printer Low Price PCB Intelligence Solder Paste Stencil Printer with CE features simple and reliable structure, accurate positioning, convenient use, high precision, high stability and high cost performance

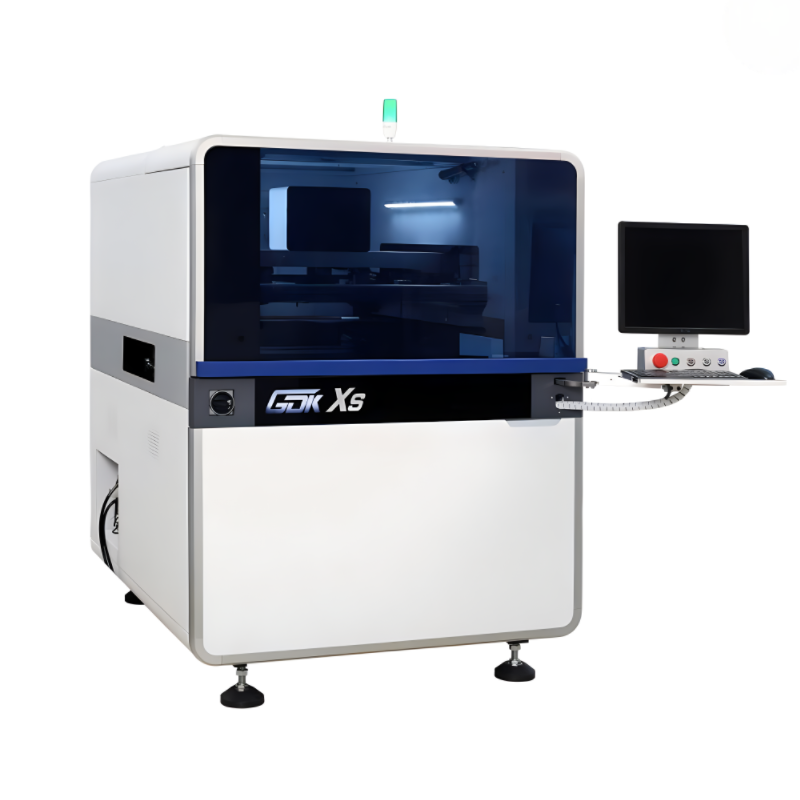

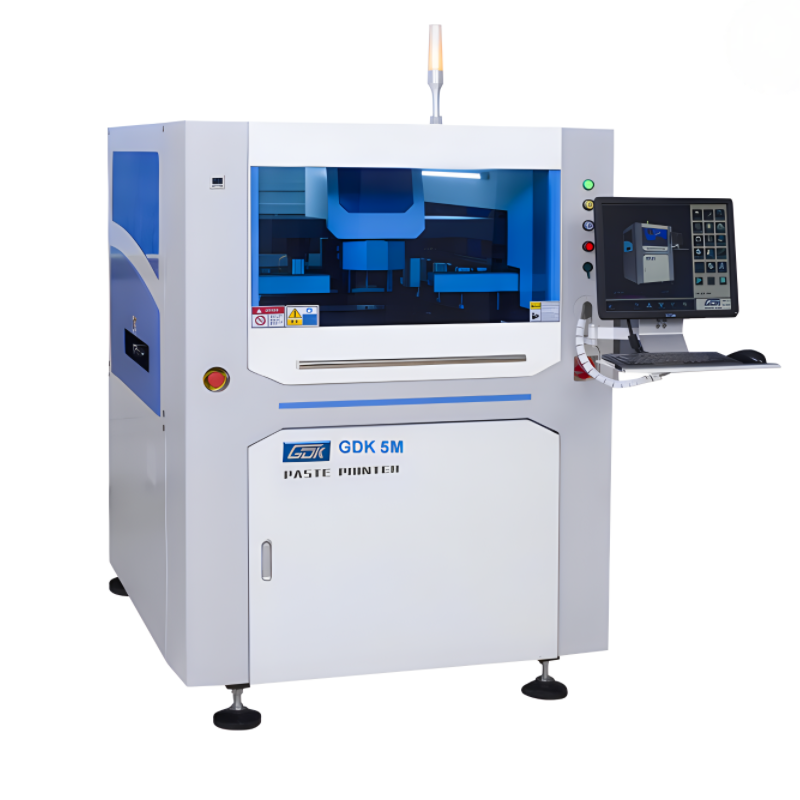

GDK TSE Fully Automatic SMT Stencil Printer Picture Show:
Exhibition:
SMT LINE:
