SMT Printer Machine MERAIF-5151 SMT Stencil Printer Automatic Screen Printing Machine SMT Solder Paste Printer For SMT Machine Line SMT Assembly Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF-5151 Fully Automatic SMT Stencil Printer Technical Parameters :
|
Model |
MERAIF-5151 |
|
|
Screen Frames |
Mini.Size |
470×370mm |
|
|
Max.Size |
737×737mm |
|
|
Thickness |
25~40mm |
|
PCB Mini.Size |
50×50mm |
|
|
PCB Max.Size |
400×340mm |
|
|
PCB Thickness |
0.4~6mm |
|
|
PCB Warpage |
<1% |
|
|
Transport Height |
900±40mm |
|
|
Transport Direction |
Left-Right;Right-Left;Left-Left;Right-Right |
|
|
Transport Speed |
Max.1500mm/s(Programmable) |
|
|
Board Location PCB |
Support System |
Magnetic Pin/Up-down table adjusted/support block |
|
|
Clamping System |
Side clamping,vacuum nozzle |
|
Printer Head |
Two independent motorised printhead |
|
|
Squeegee Speed |
6~200mm/sec |
|
|
Squeegee Pressure |
0~15kg |
|
|
Squeegee Angel |
60°/55°/45° |
|
|
Squeegee Type |
Stainless steel(standard),plastic |
|
|
Stencil Separation Speed |
0.1~20mm/sec (Programmable) |
|
|
Cleaning System |
Dry ,Wet,Vacuum (Programmable) |
|
|
Table Adjustment Ranges |
X:±10mm;Y:±10mm;θ:±2° |
|
|
CCD FOV |
0×6mm |
|
|
Solder Paste Inspection |
2DInspection Srandard |
|
|
Repeate Position Accuracy |
±0.01mm |
|
|
Printing Accuracy |
±0.025mm |
|
|
Cycle Time |
<7s(Exclude Printing & Cleaning) |
|
|
Product Changeover |
<5Min |
|
|
Air Required |
4.5~6kg/cm2 |
|
|
Power Input |
AC:220±10%,50/60HZ1F3KW |
|
|
Control Method |
PC Control |
|
|
Dimensions |
1220(L)×1375(W)×1500(H)mm |
|
|
Weight |
Approx:1000kg |
|
MERAIF-5151 Fully Automatic SMT Stencil Printer Details:
● Humanized design
● Wide application range stong versatility
● Unique sprinkle automatic cleaning system
● Afficient energy-saving wiping paper-saving structure
● Unique image processing system
● Intelligent printing product mode
● Printing range: 400*340mm/510*340mm
● Use international universal UVW three axis linkage platform
● Machine dimension: 1220X1355X1500mm
● Machine option : automatic add solder paste function. automatic stencil inspection function .automatic dispensing system .squeegee pressure feedback function .automatic MSE/SPI online function .automatic constant temperature and humidity function

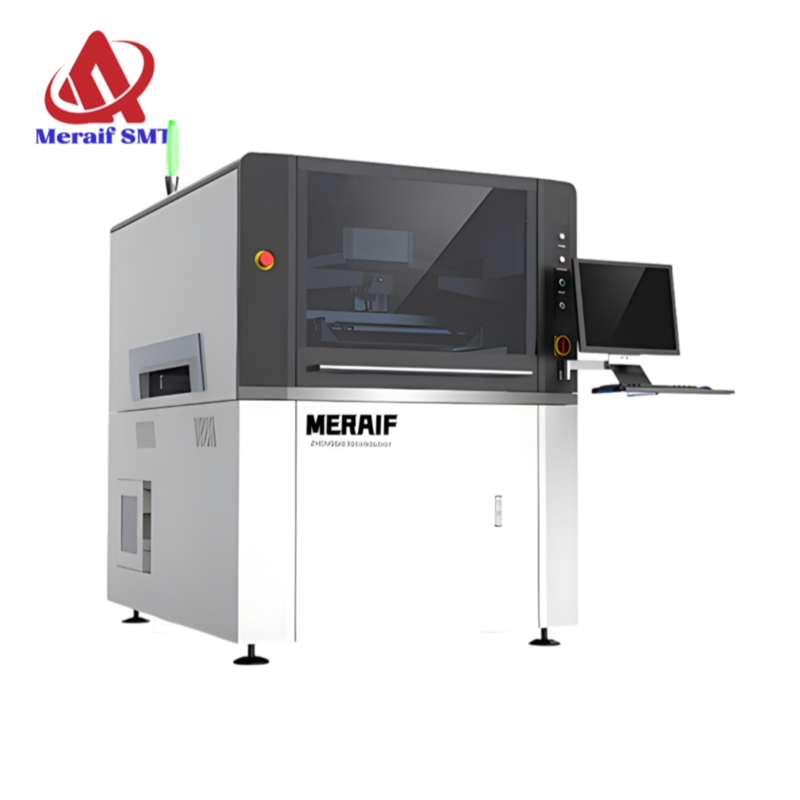

MERAIF-5151 Fully Automatic SMT Stencil Printer Picture Show:
Exhibition:
SMT LINE:
