MERAIF D3 3D AOI Online AOI Technical Parameters :
| Model | D3 |
| PCB size | 50×50mm-510×400mm |
| Thickness | 0.5mm-6mm |
| Component height | Top:60mm,bottom:60mm |
| Process side | 5mm |
| Camera | L&U 12MP color tace array high-speed industriat camera |
| Illuminant | L&U RGB+W four-color ring LED light source |
| Resolution | 10um/15um |
| FOV | 10um@40*30mm(Optional apolegamy)/15um@60*45mm |
| Component detection | Leak,reverse,offset,damage,multiple,foreign body,defacing of patch elements,etc |
| Welding tin detection | More tin,lesstin,tin,not out of the foot,empty welding,virtual welding /tin hole,etc |
| Surface element detection | Missing parts,muliple pieces,ftip,reverse,fse,damage,skew,foreign body,stain,etc |
| Barcode identification | 1D/QR code identification/character recognition,etc |
| Mixed board test | Mixed board production,support program automatically call |
| Algorithm | Deep neural network algorithm,image contrast,color contrast,contour recognition,etc |
| Speed | 0.25sec/FOV |
| Function | Remote control,remote assistance,gerber file import,and custom model training |
| Communication mode | Standard SMEMA interface |
| Presentation of data | Automatically generate the statistical analysis SPC |
| Host computer | Industrial control computer |
| Indicator | 24-inch FHD indicator display |
| Gear | High-precision wire rod+servo motor |
| Track adjustment | Manual/automatic |
| Case size and weight | 1010×1370×1611 mm/Approx.880KG |
| Power | AC 220V,power rating 2.5KVA |
| Air supply | 0.4-0.6Mpa |
| Ambient temperature | Temperature: 10-45ºC, humidity: 30-85%RH |

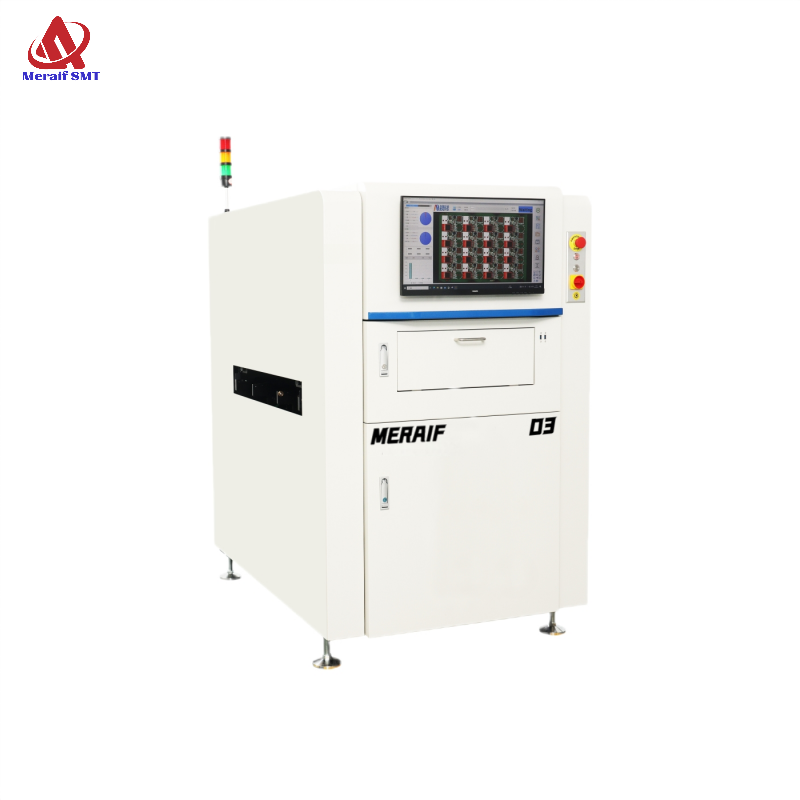

MERAIF D3 3D Optical Inspection System
Downward-illuminated AOI-D3
Online PCBA solder optical inspection equipment
Detect T/B double-sided errors, omissions, reverse and solder defects, capture board images in real time through high-precision color industrial cameras, process images using convolutional neural network algorithms, and intelligently determine component defects.
Features
- Al intelligent algorithm, one-click search andpositioning, programming is fast and simple
- Online programming:the equipment parameters can beoptimized and adjusted
- Data traceability, support for SPC alarm
- Flexible coordination with the production line, to adaptto a variety of production scenarios
