MERAIF SD 2D AOI SMT Machine AOI Inspection Automated Optical Inspection SMT 2D AOI SMT AOI Machine AOI Machine For SMT

MERAIF SD 2D AOI Offline AOI For SMT Machine Line

Model:SD

PCB size:50×50mm-440×320mm

Thickness:0.5mm-5mm

Illuminant:RGB LED ring light

Process side:3mm

Camera:5MP color face array high-speed industrial camera

FOV&resolution ratio:15um@36mm*30mm/10um@25mm*20mm

Component detection:More tin,less tin,even tin,missing parts,offset,skew,monument,reverse parts,extreme reverse,wrong parts,damaged

Algorithm:Deep neural network algorithm,image contrast,color contrast,template matching,etc

Function:Remote control,remote assistance,CAD,and custom model training

Indicator:24-inch FHD indicator display

Case size and weight:900×1095×1320mm,Approx.300KG

Supply:AC 220V,power rating 1.6KVA 0.4-0.6Mpa

Ambient temperature:Temperature: 10-45ºC, humidity: 30-85%RH

Product Description

MERAIF SD 2D AOI SMT Machine AOI Inspection Automated Optical Inspection SMT 2D AOI SMT AOI Machine AOI Machine For SMT

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

MERAIF SD 2D AOI Offline AOI Technical Parameters :

Model	SD
PCB size	50×50mm-440×320mm
Thickness	0.5mm-5mm
Camera	5MP color face array high-speed industrial camera
Illuminant	RGB LED ring light
FOV&resolution ratio	15um@36mm30mm/10um@25mm20mm
Component detection	More tin,less tin,even tin,missing parts,offset,skew,monument,reverse parts,extreme reverse,wrong parts,damaged
Algorithm	Deep neural network algorithm,image contrast,color contrast,template matching,etc
Function	Remote control,remote assistance,CAD,and custom model training
Track adjustment	Manual
Indicator	24-inch FHD indicator display
Size and weight	900×1095×1320mm,Approx.300KG
Power	AC220V,power rating 1.6KVA
Air supply	0.4-0.6Mpa
Ambient temperature	Temperature: 10-45ºC, humidity: 30-85%RH"

MERAIF SD 2D AOI Offline AOI Details:

MERAIF SD 2D Optical Inspection System

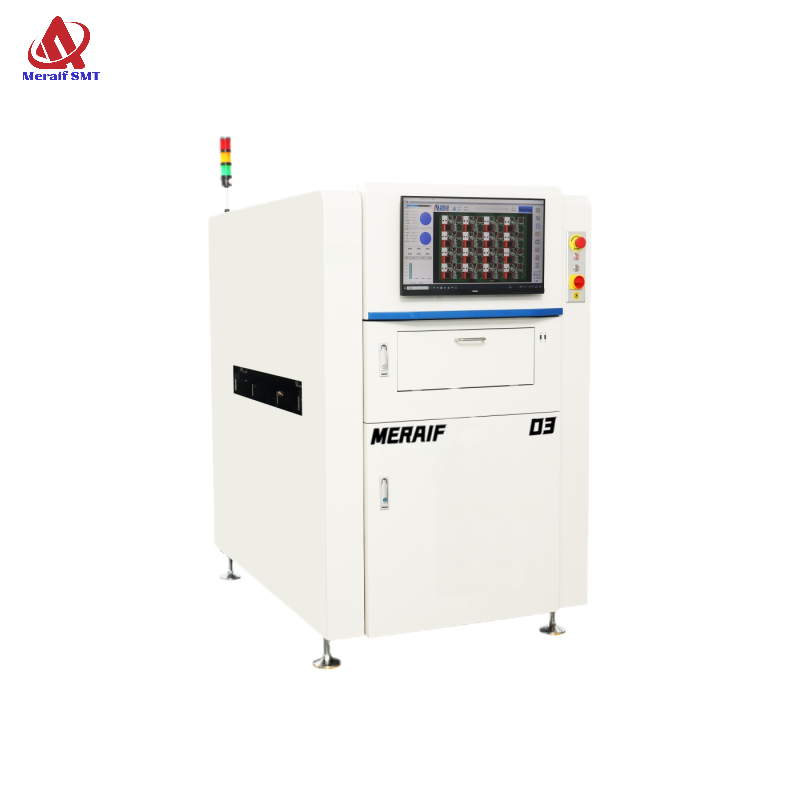

Offline intelligent AOI-SD
Offline PCBA patch 2D optical inspection equipment

Detect SMD components and solder defects, capture board images in real time through high-precision color industrial cameras, use convolutional neural network algorithms to process images, and intelligently determine component and solder defects.

Features

Streamline the programming process, the minimalistinter face, one-click batch modification of parameters

far-hear t lens, low distor tion, high depth of field, full pixel

Strong anti-inter ference ability, high detection rate, low false alarm rate

Centralized controland multi-device connectivity

Multiple confiqurations meet different detection

Data traceability, suppor t for SPC alarm
