MERAIF D1 2D AOI SMT Machine AOI Inspection Automated Optical Inspection SMT 2D AOI SMT AOI Machine AOI Machine In SMT Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF D1 2D AOI Technical Parameters :
MERAIF D1 2D AOI Details:
Model
D1
D1-W
PCB size
250×350mm
400×400mm
Thickness
0.5mm-6mm
0.5mm-6mm
Camera
12MP colour industrial camera
25MP colour industrial camera
Illuminant
High-uniform hole-opening foreground LED cold white light
FOV&Resolution ratio
85um@250×350mm
115um@400×400mm
Component detection
Missing parts of plug-in components,anti-parts,multiple insert,skew,small particle characteristic wrong parts,screen mark text recognition,bar code scanning,etc
Mixed board test
Mixed board production,support program automatically call
Algorithm
Deep neural network algorithm,image contrast,color contrast,template matching,OCR,etc
Function
Remote control,remote assistance,CAD,and custom model training
Indicator
24-inch FHD indicator display
Size and weight
773×902×1422mm,Approx.150KG
969×1072×1422mm,Approx.200KG
Power
AC220V,power rating 0.5KVA
Air supply
0.4-0.6Mpa
Ambient temperature
Temperature: 10-45℃, humidity: 30-85%RH
Online PCBA plug-in optical inspection equipment
Detect defects such as missing, reverse and so on of DIP components, capture the board image in real time through a high-precision color industrial camera, process the image using a convolutional neural network algorithm, and intelligently determine if the components are defective.
Features
- Minimalist programming,convenient operation, suppor tonline /offline
- Multiple detection modes, adapted to the production
- Detailed data test repor t, to suppor t SPC alarm
- Can be matched with optional items, fast positioning isbad, to achieve

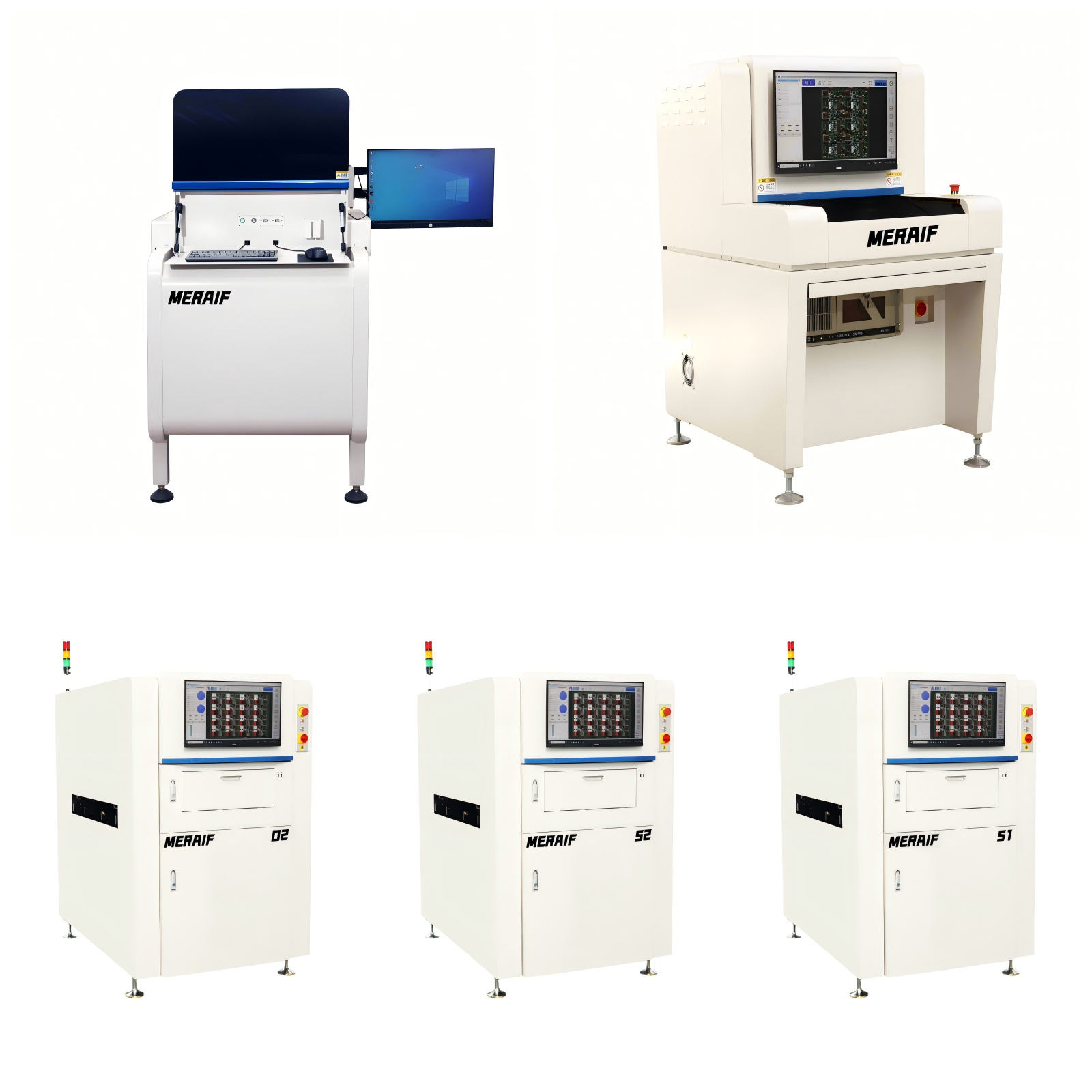

MERAIF D1 2D AOI Picture Show:
EXHIBITION:
SMT LINE:
