MIRTEC MV-7 AOI SMT LINE AOI Automated Optical Inspection Machine System AOI Equipment AOI Machine For SMT Machine Line SMT Assembly Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MIRTEC MV-7 AOI SMT LINE AOI Technical Parameters:
MODEL
MV-7
Top-Down View Camera Options
Field Of View
5Mega Pixel Camera Option
44.7mmx37.4mm(1.76"x1.48")
5Mega Pixel Camera Option2
32.9mmx27.5mm(1.30“x1.08”)
5Mega Pixel Camera Option3
24.0mmx20.1mm(0.94"x0.79")
10Mega Pixel Camera Option
66.6mmx49.7mm
10Mega Pixel Camera Option2
49.0mmx36.6mm
10Mega Pixel Camera Option3
35.9mmx26.8mm
15Mega Pixel Camera Option
777mmx77.7mm
15Mega Pixel Camera Option2
38.8mmx38.8mm
Side View Camera System
5 MEG:2,456*2,058 Pixels Digital Color Cameras
10 MEG:3,664*2,736 Pixels Digital Color Cameras
15 MEG:3,888*3,888 Pixels Digital Color Cameras
Laser sensor
Z-height Repeating Measurement Accuracy:±20um(Resolution:15um/point)
Bottom Side Component Clearance
45mm(1.77")from bottom of PCB surface
Min.Component Absence/Presence
01005 chip component
Min.Component Marking OCR
0402 chip component
Inspection Speed
0.20sec/frame
Fiducial Mark Recognition Time
1.5sec/2point
Positioning System
X-Axis (200W)Servo Motor,Y-Axis (400W)Servo Motor
Resolution
1um
Repeatability
±10um
Maximum Speed
900mm/sec
Power Requirements
110-220VAC±10%,50/60Hertz;5Amps
Model Number
PCB Size Range
MV-7XI
50mm*50mmto510mm*400mm
MV-7XI D
50mm*50mmto600mm*250mm
MV-7U
50mm*50mmto660mm*510mm
Model Number
Machine Dimensions
MV-7XI
1,000(W)*1,400(D)*1,450(H)mm
MV-7XI D
1,150(W)*1,530(D)*1,450(H)mm
MV-7U
1,150(W)*1,450(D)*1,450(H)mm
Model Number
Weight
MV-7XI
800Kg
MV-7XI D
1,200Kg
MV-7U
1,000Kg
MIRTEC MV-7 AOI SMT LINE AOI Details:
MIRTEC’s all new MV-7 Series 2D/3D AOI Systems may be configured with a stateof-the-art 15 Mega Pixel top-down camera system which we affectionately refer to as ISIS. This is a proprietary camera system designed and manufactured by MIRTEC for use with our complete product range of inspection equipment. ISIS is an acronym for Infinitely Scalable Imaging Sensor. As the name implies the ISIS Vision System may be scaled or modified to address the specific inspection requirements of virtually any production environment without sacrificing speed or performance. By changing the magnification of the Precision Telecentric Lens the resolution of optics system may be scaled from 20 microns/pixel with an incredibly large FOV of (77.7mm x 77.7mm) desired for extremely high speed manufacturing; down to 10 microns/pixel with an FOV of approximately (38.8mm x38.8mm) which is suitable for high end micro-electronics manufacturing.MIRTEC’s revolutionary 3D Multi Frequency Quad Moiré Technology, provides true 3D inspection of SMT devices on finished PCB assemblies using a total of four (4) Moiré Inspection Probes. This proprietary system yields precise height measurement used to detect lifted component and lifted lead defects as well as solder volume post reflow. Fully configured the new MIRTEC MV-7 machines will also feature four 10 Mega Pixel Side-View Cameras in addition to the 15 Mega Pixel Top-Down Camera. There is little doubt that this new technology will, undoubtedly, set the standard by which all other inspection equipment will be measured.

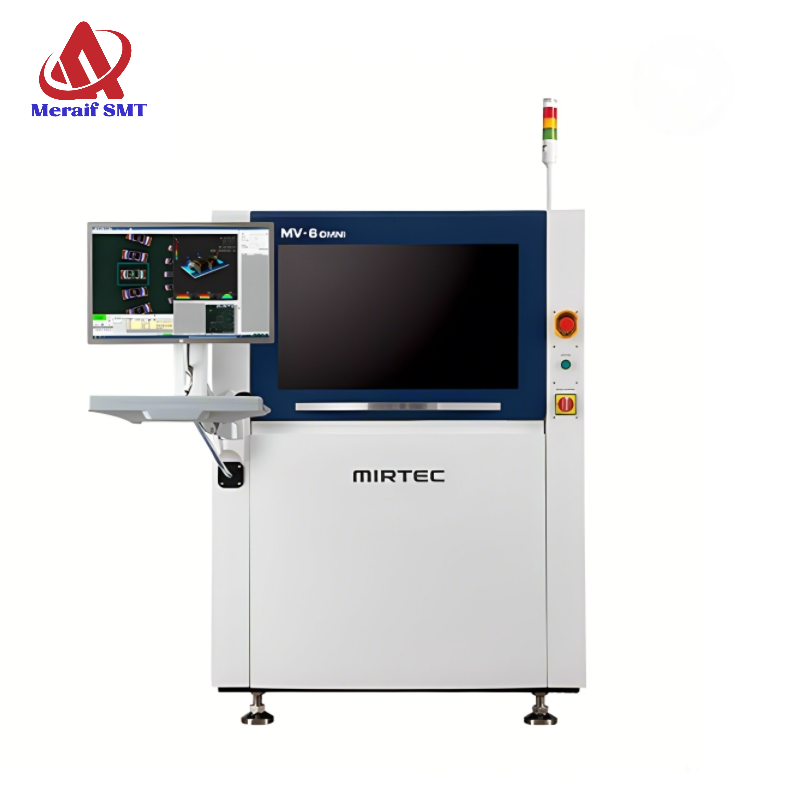

MIRTEC MV-7 AOI SMT LINE AOI Picture Show:
EXHIBITION:
SMT LINE:
EXHIBITION:
SMT LINE:
