MIRTEC MV-6 2D AOI SMT LINE AOI 2D Automated Optical Inspection System AOI Equipment AOI Machine For SMT Machine Line SMT Assembly Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MIRTEC MV-6 2D AOI SMT LINE AOI Technical Parameters:
Model
MV-6
Type Code
Single Stage Conveyor [Standard]
MV-6_M_ISIS_S_SL
MV-6_S_ISIS_S_SL
MV-6_M_ISIS_S_DL
Triple Stage Conveyor [Option]
MV-6_M_ISIS_T_SL
MV-6_S_ISIS_T_SL
MV-6_M_ISIS_T_DL
Max.PCB Size Range
In-Line AOI
Single Stage Conveyor [Standard]
50x50～510x460mm
50x50～330×280mm
50x50～510x300mm[D]
50x50～510×590mm[S]
Type 1
50x50～330x460mm
-
-
Type 2
50x50～510x460mm
-
-
Inspection Speed
18Megapixel Camera
CoaXPress
7.3μm
3,213mm²/Sec
9.8μm
5,604mm²/Sec
14Megapixel Camera
CoaXPress
13.4μm
7,974mm²/Sec
10Megapixel Camera
Camera Link
9.8μm
3,007mm²/Sec
13.4μm
5,293mm²/Sec
Inspection item
Mini. Component Inspection
7.3μm
0201Chip[mm]/0.3Pitch[mm]
9.8μm
0402Chip[mm]/01005Chip[inch]/0.3pitch[mm]
13.4μm
0603Chip[mm]/0201Chip[inch]/0.4pitch[mm]
System Specification
Lighting System
8Phase Coaxial Color Lighting System
Side Viewer@Camera System [Option]
18/10 Megapixel Digital Color Side Camera [4ea]
Intelli-Scan
Resolution
1.5μm /Point
Accuracy
±10μm
Software
Standard
Built-in SPC,Built-in Repair
Option
RMS,RRS,IRS,OLTT,RDS,Remote SPC,SPC Server System,ePM-AOI
PCB Top Side Clearance
45mm
PCB Bottom Side Clearance
50mm
PCB Thickness
0.5mm~5mm
Maximum PCB Weight
4kg
Robot Positioning System
X/Y Axis
Servo Motor System
Power Requirements
Single Phase[s]200~240V50~60Hz,1.1kw
Air Requirements
5 Kgf /cm²[0.5 MPa],5 LPM
Dimension and Weight
Dimension [mm]
Machine
1,080[W]x1,470[D]x1,610[H]
900[W]x1,290[D]x1,610[H]
1,080[W]x1,470[D]x1,610[H]
Single Stage Conveyor
1,110
930
1,110
Triple Stage Conveyor [Option]
1,270/1,450/1,630
Weight
Single Stage Conveyor
Approx.900kg
Approx.800kg
Approx.950kg
Triple Stage Conveyor [Option]
Approx.930kg
※We wil ot be responsible for any problems caused by using unverified BARCODE READER.Contact ourHQforthe listof llowed BARCODE READER models to use
MIRTEC MV-6 2D AOI SMT LINE AOI Details:

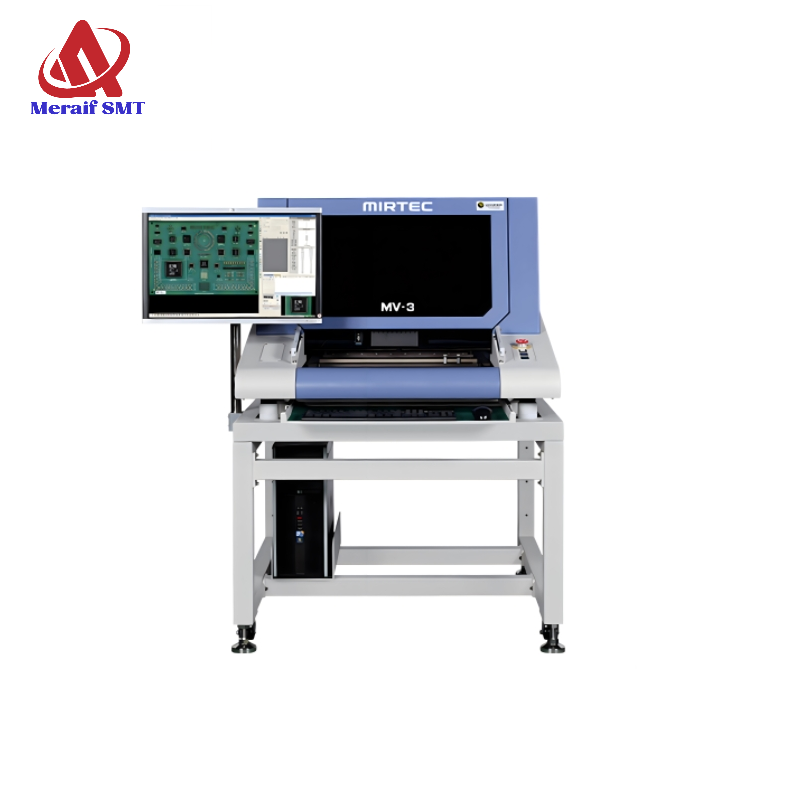

MV-6 Series is s a AOl product which can be used as two types Mounting/Solder.It is an inline vision inspector with 18 Megapixel camera,laser scan,18 Megapixel side cameras and 8 phase coaxial color lighting system applied to give optimal results to various production processes.
MV-6_S is a AOI with 900mm slim size design for better user convenience by having high technology as well as space utilization.
MIRTEC MV-6 2D AOI SMT LINE AOI Picture Show:
