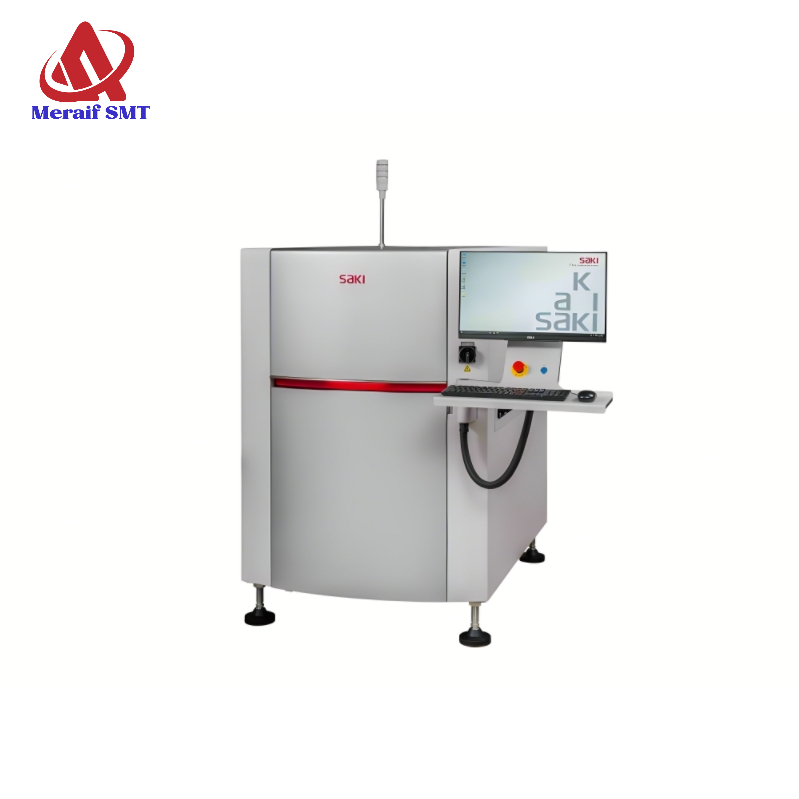

SAKI BF-10D 2D AOI SMT AOI For SMT Machine Line

SAKI BF-10D 2D AOI SMT AOI 2D Automated Optical Inspection System AOI Equipment AOI Machine For SMT Machine Line SMT Assembly Line

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

SAKI BF-10D  AOI SMT LINE AOI Technical Parameters:

Model	BF-10D
Resolution	10μm
Board Size	Single lane:60×50-460×330 mm,Dual lane:60x50-330×250 mm
Board Thickness	0.6-3.2 mm,24-126 mils
Board Warp	+/-2 mm,80 mils
PCB clearance	Top:40   mm,Bottom:40   mm
Rotated component support	Available for 0-359°rotation [unit of 1°]
Inspection categories	Presence/absence,misalignment,tombstone,reverse,polarity,bridge,foreign material,absence of solder,insufficient solder,lited lead,lifted chip,and fllet defect.Each defect name can be changed freely by system function.
Tact time*1*2(250x330 mm 1 pcb)	Single lane:Approx.10 sec.
Tact time*1*2[250×330 mm 2 pcb]	Dual lane:Approx.16 sec.
Image scanning time*1(250×330 mm)	Approx.5.5 sec.
Camera [image processing]	Line color CCD camera
Lighting	LED lighting system
Transfer conveyor method	Flat belt transfer
Transfer conveyor height	900+/-20 mm
Transfer conveyor width adjustment	Automatic
Operating system	Windows 7 english version
Optional system	BF-Editor/BF-RP1/BF-monitor/BF-view
Optional	2D Barcode recognition,journal printer
*1 If PCB size is smaller than 250×330 mm,Image scannig time will be shorter than these values. *2 Including image scanning time.
Installation Specifications
Electric power requirement	Single Phase~100-120V/200-240V+/-10%,50/60Hz
Power consumption	800 VA
Air requirement	0.5 MPa,5L/min (ANR),73 PSI,0.18 CFM
Usage environment	15℃ [59F]-30℃(86F)/15-80%RH [non-condensing]
Dimensions *3WxDxH	850x1360x1380mm
Weight	Approx.450 kg,922.3 lbs
*3 Monitor and keyboard arm is not included

SAKI BF-10D  AOI SMT LINE AOI Details:

The BF-10D, M-size system was developed especially for high speed, inline, dual-lane production, employing Saki's new high-speed color camera and a new gantry frame designed for high speed motion of the camera. New image processing tools take advantage of multi-core CPU processing. The BF-10D can easily keep up with production takt times as short as 8 seconds. Saki's BF-10D handles dual-lane high speed production lines using only one head. Whether the two lanes have the same or different board configurations, they can be inspected simultaneously in one pass, making inspection very fast. When the same items are run in both lanes, the inspection programming data can be shared.

Main Fearures

BF-10D is a dual lane automated optical inspection system with Saki's original alternate scanning system which provides high throughput.Additionally,programming has been greatlyimproved, and brings enhanced productivity.

High Throughput

Throughput is now further enhanced by optimized automatic lighting calibration function.Scan time is 30 %faster. Operating system is 64 bit with multicore processing,enable faster throughput and at the same time,compatible with the conventional systems.Tact time is about 16 seconds for two M- size (25 0 { m mm} imes330 { m m} m)boards and about 12 seconds for two boards of size 150 mmx330 mm.

Compact,Long-life Design

The system equips the camera-drived line scan system and dual lane conveyor system in a compact design.Highly rigidity frame and low-vibration high-speed camera unit makes it possible to provide longer service life with high repeatability.

Flexibility

This dual lane conveyer system is designed to adapt with various placement machines and reflow ovens.It willincrease productivity space efficiency and support high speed production.

High Resolution Imaging System

The system is equipped with a newly developed high-speed multi CCD line scanning camera.Through telecentric lens,it is able to inspect densely mounted 01005 (0402)chips.With the further optimization of the LED lighting,a remarkable S/N ratio has been archived through vastly improved color rendering properties.

Programming

Functions useful for inline application have been renewed, including functions such as search pad,search component which helps to enhance the contrast of image affected by application of equivalent parts and oxidation of electrode. By means of the above improvement,changeover time and first pass yield could be improved.
