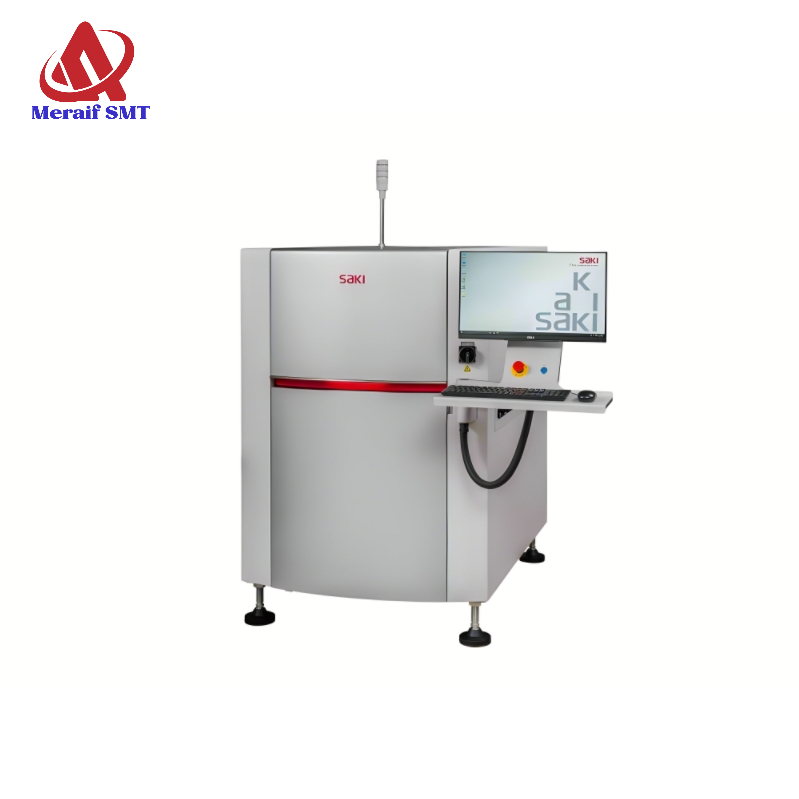

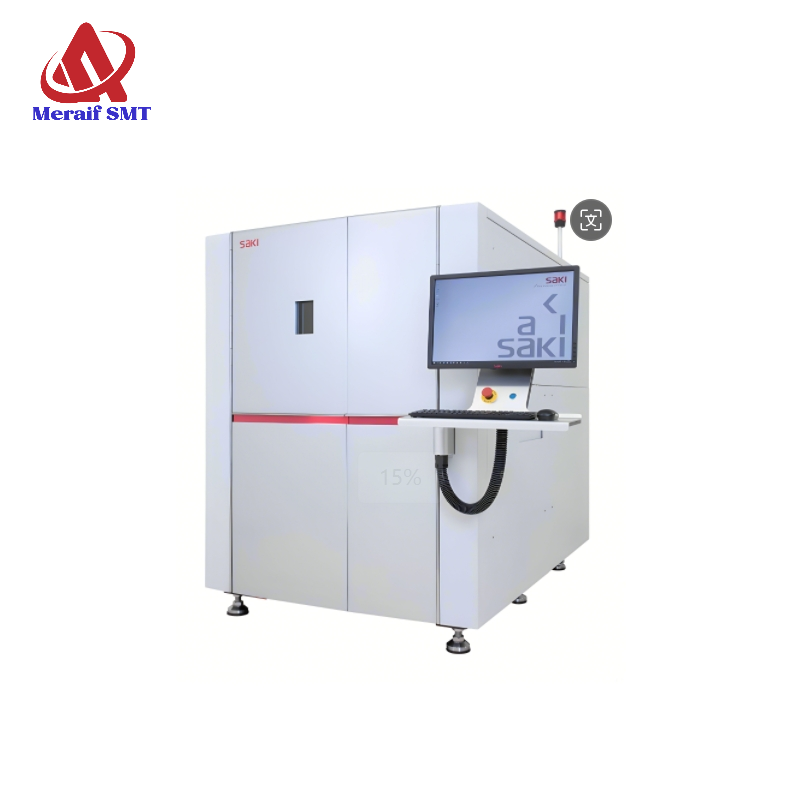

SAKI BF-Frontier II 2D AOI SMT AOI For SMT Machine Line

SAKI BF-Frontier II 2D AOI SMT AOI 2D Automated Optical Inspection System AOI Equipment AOI Machine For SMT Machine Line SMT Assembly Line

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

SAKI BF-Frontier II 2D AOI AOI Technical Parameters:

MODEL	BF-Frontier Ⅱ
Resolution	18μm
Board Size	60x50-500x460mm
Board Thickness	0.6-3.2 mm,24-126 mils
Board Warp	+/-2 mm,79 mils
Pcb Clearance	Top:40 mm,Bottom:40 mm
Rotated Component Support	Available for O-359°rotation [unit of 1]
Inspection Categories	Presence/absence,misalignment,tombstone,reverse,polarity,bridge,foreign material,absence of solder,insufficient solder,lifted lead,lifted chip,and fllet defect.Each defect name can be changed freely by system function.
Tact time*1*2[460×500 mm]	Approx.21 sec.
Image Scanning Time*1(460×500 mm)	Approx.10 sec.
Camera [image processing]	Line color CCD camera
Lighting	LED lighting system
Transfer Conveyor Method	Flat belt transfer
Transfer Conveyor Height	900+/-20 mm
Transfer Conveyor Width Adjustment	Manual
Operating System	Windows XP english version
Optional System	BF-Editor/BF-RP1/BF-monitor/BF-view
Optional	2D barcode recognition,journal printer,automatic yransfer conveyor width adjustment
*1If PCB size is smaller than 460×500 mm,Imagescannig time wilbe shorter than these values. *2 Including image scanning time.
Installation Specifications
Electric Power Requirement	Single phase ~100-120 V/200-240V+/-10%,50/60 Hz
Power Consumption	750 VA
Air Requirement	0.5 MPa,5L/min (ANR),73 PSI,0.18 CFM
Usage Environment	15℃ [59F]-30℃[86F]/15-80%RH (non-condensingl
Noise Level	58.3 dB
Dimensions	850 (W)×1340[D]x1230(H)mm
Weight	Approx.450 kg,992 lbs

SAKI BF-Frontier II 2D AOI AOI Details:

BF-Frontier is used in the inspection of large size printed circuit boards. In this equipment, the unique control timing of software and hardware, accelerated scanning method and stable optical lighting system allow BF-Frontier to easily complete the inspection of a large-size printed circuit board within 25 seconds. More than 1/3 of the computer motherboards in the world have been inspected by BF-Frontier.

High Resolution Imaging System

With a superior resolution of 18 μm and scanning line color CCD camera,both AOI system provide accurate and stable inspection results.Solder fillets on components as small as the high density mounted 0201 [0603]chip,as well as IC's with0.4 mm pitch lead are easily inspected and analyzed.

High Throughput

BF-Frontier ll has Saki's original alternate scanning system that captures several lighting images in one scanning.Newly developed color capturing system enable to make scanning speed twice faster than previous model.It takes only 10 seconds to capture L-size board [460 mm x500 mm].Overall tact time including inspection also become shortened dramatically.

Advantage of Line Scan Visual Inspection

Extra components on the board can be detected only by setting up one inspection window on the whole board.It is realized by theadvantage of line scan method.

New Interface

Renewed user interface makes it easier to set up inspection data by using pre-installed Saki standard library.And optional new function KPK,that finds out the difference between surface of the board and the surface of component automatically, simplifies to detect missing component.This realizes time reduction for in-spection data making at launching production.

Flexibility

BF-Frontierll has 40 mm clearance at thetop side of the board and 40mm at the bottom side.It enables most of the PCBs with tall components.In addition,BF-Frontier ll can be used in any stage of the PCB production process from post-print,post- mounter,and post-flow /re-flow,or manual mounting.

Traceability

Optional function of BF-Frontier ll can read all types of Barcode and 2D code on the board.Inspection output is reported with code number.It enables easy SPC data handling and log data management on manufacturing lines.

Coaxial Overhead Light

Soldering condition is inspected by illuminant irradiation of coaxial overhead lighting. Inspection is not affected by shadowing by neighboring tall components,therefore same library is available at any location on the board.
