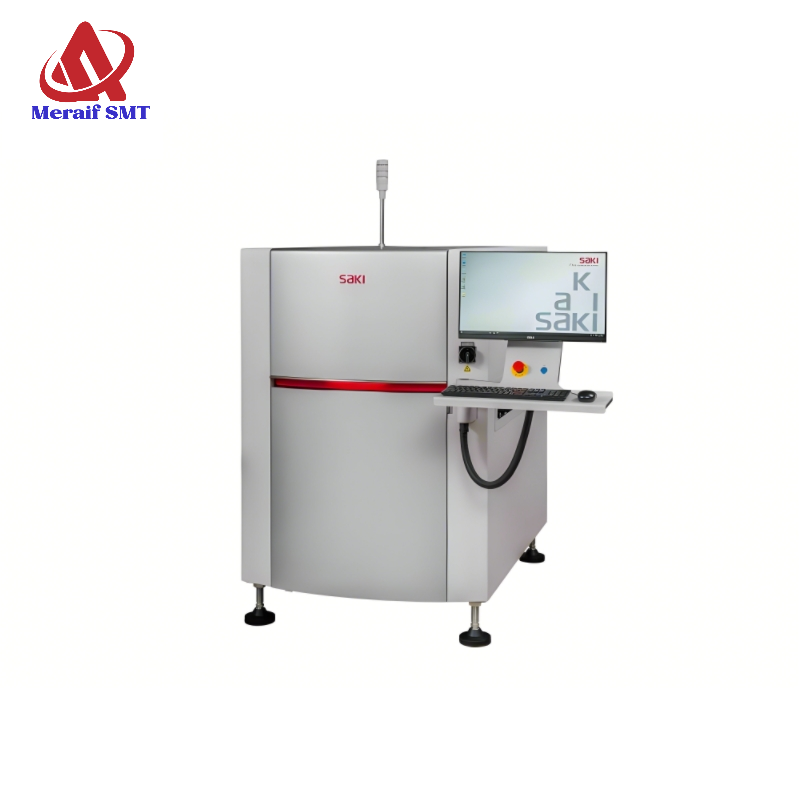

SAKI BF-Comet18 2D AOI SMT AOI 2D Automated Optical Inspection System AOI Equipment AOI Machine For SMT Machine Line SMT Assembly Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
SAKI BF-Comet18 AOI SMT AOI Technical Parameters:
| MODEL | BF-COMET 18 | BF-COMET-C |
| Resolution | 18 μm | |
| Board size | 50x50-330×250mm | |
| Board thickness | 0.6-2.5 mm,24-100 mils | |
| Board warp | +/-2 mm,79 mils | |
| PCB clearance | Top:40 mm,Bottom:60 mm | |
| Rotated component support | Available for 0-359°rotation [unit of 1°] | |
| Inspection categories | Presence/absence,misalignment,tombstone,reverse,polarity,bridge,foreign material,absence of solder,insufficient solder,lifted lead,lifted chip,and fillet defect.Each defect name can be changed freely by system function. | |
| Tact time*1*2(250×330 mm) | Approx.13 sec. | Approx.20 sec. |
| Image scanning time*1(250×330 mm) | Approx.7 sec. | Approx.14 sec. |
| Camera | Line color CCD camera | |
| Lighting | LED lighting system | |
| Operating system | Windows XP english version | |
| Optional system | BF-editor/BF-RP1/BF-view | |
| Optional | 2D Barcode recognition,journal printer,OK/NG signal out | |
| Optional for BF-Comet 18 | External control box | |
| *1 If PCB size is smaller than 250×330 mm,Imagescannig time will be shorter than these values.*2 Including image scanning time. | ||
| Installation Specifications | ||
| Electric power requirement | Single phase~100-120 V/200-240V+/-10%,50/60 Hz | |
| Power consumption | 400 VA | 300 VA |
| Air requirement | Not needed | |
| Usage environment | 15℃ [59F]-30℃[86F]/15-80%RH (Non-condensingl | |
| Noise level | 56.5 dB | |
| Dimensions WxDxH (mainbody) | 580×850x452mm | |
| Weight (main body) | Approx.80 kg,177 lbs | Approx.80 kg,177 lbs |
SAKI BF-Comet18 AOI SMT AOI Details:
he 2D-AOI is a high-speed, high-precision 2D visual inspection device that supports multiple inspection processes, such as SMT, and through-hole processes. The extremely durable hardware design guarantees a more stable inspection quality than traditional visual inspection and contributes to significant labor savings at production sites.
Line-Ups for Flexible Use
Saki new desktop A0I,BF-Comet18 and BF-Comet-c are designed for high volume manufacturing with 0201[0603].Both models have 18μm resolution and newly designed LED lighting unit that enables highest throughput of PCBA inspection.T
High Throughput
BF-Comet has Saki's original alternate scanning system that captures several lighting images in one scanning. Newly developed color capturing system enable to scan only 7 seconds by BF-Comet18 and 14 seconds by BF-Comet-c [M-size board (250 mm x330 mm].
New Interface
Renewed user interface makes it easier to set up inspection data by using pre-installed Saki standard library.And optional new function KPK,that finds out the differencebetween surface of the board and the surface of component automatically, simplifies to detect missing component.This realizes time reduction for inspection data making at launching production.
Advantage of Line Scan Visual Inspection
Extra components on the board can be detected only by setting upone inspection window on the whole board.It is realized by the advantage of line scan method.
Coaxial Overhead Light
Soldering condition is inspected by illuminant irradiation of coaxial overhead lighting.Inspection is not affected by shadowing by neighboring tall components,therefore same library is available at any location on the board.
Flexibility
BF-Comet has 40mm clearance at the top side of the board and 60mm at the bottom side.It enables most of the PCBs with tall components.In addition,BF-Comet can be used in any stage of the PCB production process from post-print,post- mounter,and post-flow /reflow,or manual mounting.
Traceability
Optional function of BF-Comet can read all types of Barcode and 2D code on the board.Inspection output is reported with code number.It enables easy SPC data handling and log data management on manufacturing lines.
