KOH YOUNG Zenith LiTE 3D AOI SMT AOI For SMT Machine Line

Model:Zenith LiTE

PCB Size(XxY)1:50x50-330x330mm

PCB Size(XxY)2:50x50-510x510mm/330x325.5mm

PCB Thickness:0.4~5mm

Max.PCBWeight:Ring Belt:2Kg,Timing Belt:5Kg

Machine Weight(Approx.):550kg

Bottom Clearance:50mm

Supplies:200~240VAC,50/60Hz Single Phase,5Kgf/cm²(0.45MPa)

Dimension(WxDxH):820x1265x1627mm/1000x1265x1627mm

Product Description

KOH YOUNG Zenith LiTE 3D AOI SMT Machine AOI Inspection Automated Optical Inspection SMT 3D AOI SMT AOI Machine AOI Machine In SMT Machine Line

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

KOH YOUNG Zenith LiTE 3D AOI SMT LINE AOI Technical Parameters:

ZenithAOI	M		L		XL
	SingleLane	DualLane	SingleLane	DualLane	SingleLane	DualLane
Max.PCBSize(XxY)	330X330mm (12.9x12.9 inches)	SingleMode: 330x580mm (12.9x22.8 inches) DualMode: 330x325.5mm (12.9x12.8 inches)	510x510mm (20.0×20.0 inches)	SingleMode: 510x580mm (20.0x22.8 inches) DualMode: 510x320mm (20.0x12.5 inches)	850x690mm (33.4x27.1 inches)	SingleMode: 850x580mm (33.4x22.8 inches) DualMode: 850x320mm (33.4x12.5 inches)
Min.PCBSize	50x50mm(1.9x1.9inches)				70x70mm(2.7x2.7inches)
PCBThickness	0.4～4(0.01～0.15mminches)		0.4～5(0.01x0.19mminches)		0.6～8(0.02～0.31mminches)
Max.PCBWeight	Standard:2kg(4.4Ibs),Heavyweightoption:5kg(11.0Ibs)				10kg(22.0Ibs)
MachineWeight	550kg (1212.5Ibs)	600kg (1322.7Ibs)	600kg (1322.7Ibs)	700kg (1543.2Ibs)	850kg (1873.9Ibs)	900kg (1984.1lbs)
BottomClearance	50mm(1.9inches)
Supplies	200~240VAC,50/60HzSinglePhase,5Kgf/cm²(0.45MPa)
W	820mm (32.2inches)	820mm (32.2inches)	1000mm (39.3inches)	1000mm (39.3inches)	1350mm (53.1inches)	1350mm (53.1inches)
D	1265mm (49.8inches)	1445mm (56.8inches)	1265mm (49.8inches)	1445mm (56.8inches)	1445mm (56.8inches)	1445mm (56.8inches)
H	1627mm (64.0inches)	1627mm (64.0inches)	1627mm (64.0inches)	1627mm (64.0inches)	1627mm (64.0inches)	1627mm (64.0inches)

KOH YOUNG Zenith LiTE 3D AOI SMT LINE AOI Details:

KOH YOUNG Zenith LiTE 3D Optical Inspection System

World Class Full 3D Automated Optical Inspection
Full 3D AOI overcoming the shortcomings of 2D AOI inspection
Minimize shadows problems utilizing 4-way projection
Performs defects diagnosis and root cause removal through real-time 3D data
Fast intuitive programming inspection conditions using parametric approach
Full 3D data-based process optimization solution: Realization of Industry 4.0/ smart factory
Process information DB and real-time remote monitoring
Inspection program management automation and efficiency
Good value model for a variety of production environment

KohYoung's Zenith LiTE Full 3D Automated Optical Inspection Machine. Zenith LiTE Full 3D AOI is designed with fast and intuitive programming inspection conditions using a parametric approach. This machine has a full 3D data-based process optimization solution using-the realization of industry 4.0 / smart factory. Zenith LiTE 3D Automated Optical Inspection machine is the best option and a good value model for a variety of production environments.

Features

Excellent value model for various production environments
Fully automatic AOI with Koh Young's patented 3D inspection technology
Minimizes shadow problems with 4 way projection
Fast and intuitive programming
Reveals a wide range of defects such as scewed or tombstoned components
Enables Industry 4.0 with the Smart Factory

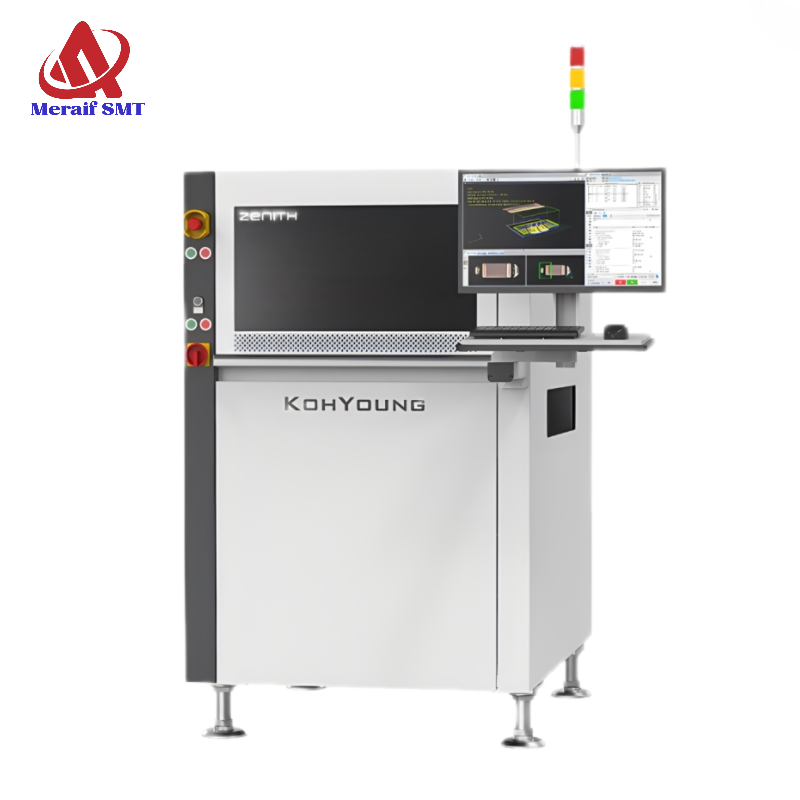

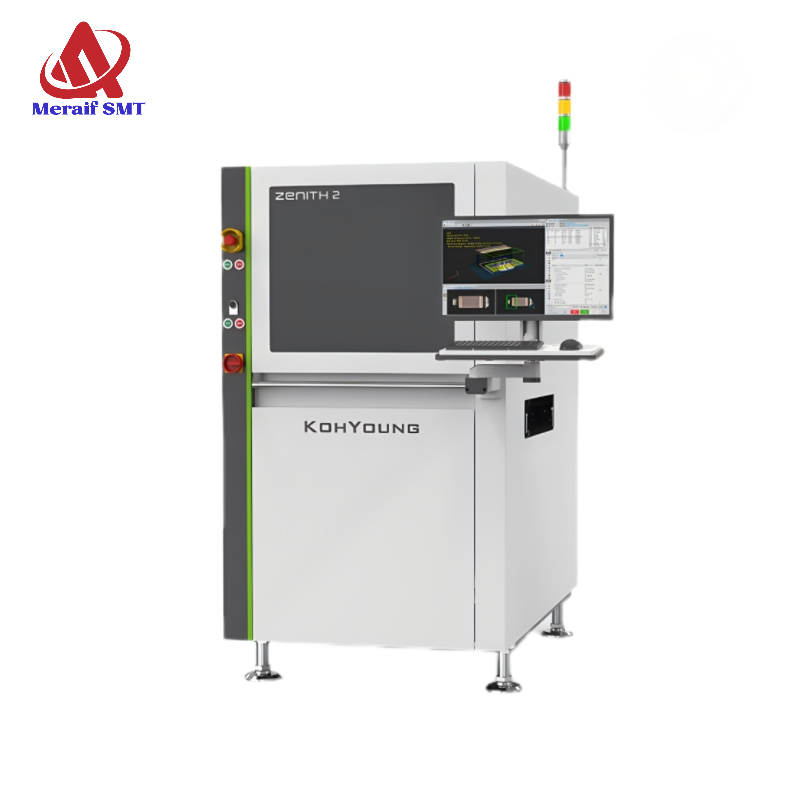

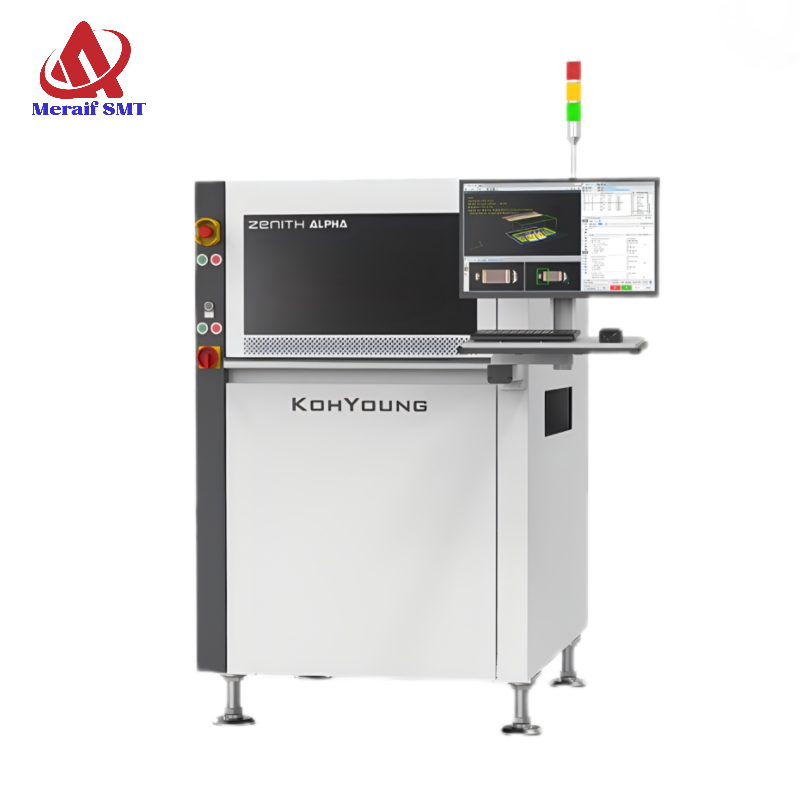

KOH YOUNG Zenith LiTE 3D AOI SMT LINE AOI Picture Show:
