Product Description

KOH YOUNG Zenith Alpha 3D AOI SMT Machine AOI Inspection Automated Optical Inspection SMT 3D AOI SMT AOI Machine AOI Machine In SMT Machine Line

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

KOH YOUNG Zenith Alpha 3D AOI SMT LINE AOI Technical Parameters:

ZenithAOI	M		L		XL
	SingleLane	DualLane	SingleLane	DualLane	SingleLane	DualLane
Max.PCBSize(XxY)	330X330mm (12.9x12.9 inches)	SingleMode: 330x580mm (12.9x22.8 inches) DualMode: 330x325.5mm (12.9x12.8 inches)	510x510mm (20.0×20.0 inches)	SingleMode: 510x580mm (20.0x22.8 inches) DualMode: 510x320mm (20.0x12.5 inches)	850x690mm (33.4x27.1 inches)	SingleMode: 850x580mm (33.4x22.8 inches) DualMode: 850x320mm (33.4x12.5 inches)
Min.PCBSize	50x50mm(1.9x1.9inches)				70x70mm(2.7x2.7inches)
PCBThickness	0.4～4(0.01～0.15mminches)		0.4～5(0.01x0.19mminches)		0.6～8(0.02～0.31mminches)
Max.PCBWeight	Standard:2kg(4.4Ibs),Heavyweightoption:5kg(11.0Ibs)				10kg(22.0Ibs)
MachineWeight	550kg (1212.5Ibs)	600kg (1322.7Ibs)	600kg (1322.7Ibs)	700kg (1543.2Ibs)	850kg (1873.9Ibs)	900kg (1984.1lbs)
BottomClearance	50mm(1.9inches)
Supplies	200~240VAC,50/60HzSinglePhase,5Kgf/cm²(0.45MPa)
W	820mm (32.2inches)	820mm (32.2inches)	1000mm (39.3inches)	1000mm (39.3inches)	1350mm (53.1inches)	1350mm (53.1inches)
D	1265mm (49.8inches)	1445mm (56.8inches)	1265mm (49.8inches)	1445mm (56.8inches)	1445mm (56.8inches)	1445mm (56.8inches)
H	1627mm (64.0inches)	1627mm (64.0inches)	1627mm (64.0inches)	1627mm (64.0inches)	1627mm (64.0inches)	1627mm (64.0inches)

KOH YOUNG Zenith Alpha 3D AOI SMT LINE AOI Details:

KOH YOUNG Zenith Alpha 3D Optical Inspection System

The Zenith Alpha is a True 3D AOI Solution powered by artificial intelligence and machine learning, combining the best mechatronics and algorithm technologies to deliver outstanding performance without sacrificing accuracy.

Features

Enhanced 3D Measurement Using Proprietary AI Technology: The Smart & Dynamic True 3D measurement inspection technology on the Zenith Alpha incorporates AI to deliver the accuracy needed for ultra-fine pitch and solder joint interreflection challenges.
High Accuracy and Speed for Demanding Production Line: Without sacrificing accuracy and speed, the Zenith Alpha combines mechatronics technology with cuttingedge measurement capabilities to yield high throughput suitable for demanding production lines.
Advanced Tall Component Inspection: Tall components on a board has traditionally been a challenge for AOIs. Yet the Zenith Alpha easily handles tall components up to 25mm through Koh Young's combined multi-projection Moiré interferometry system and incomparable AI technologies. The Zenith Alpha overcomes component shadow challenges.
Whole-board Foreign Material Inspection (WFMI): The Zenith Alpha combines 2D and 3D technologies to identify Foreign Object Debris (FOD) across the board. The WFMI technology provides solutions for misplaced chips, solder balls, burr, and other foreign materials that may lead to costly field failures
AI-powered Auto Programming (KAP): Industry-leading 3D profilometry technology converges with Koh Young's proprietary AI technology to deliver true automatic programming. The innovative geometry-based Koh Young Auto Programming (KAP) software solution reduces the programming process to minimizes time to production and reduces costs.

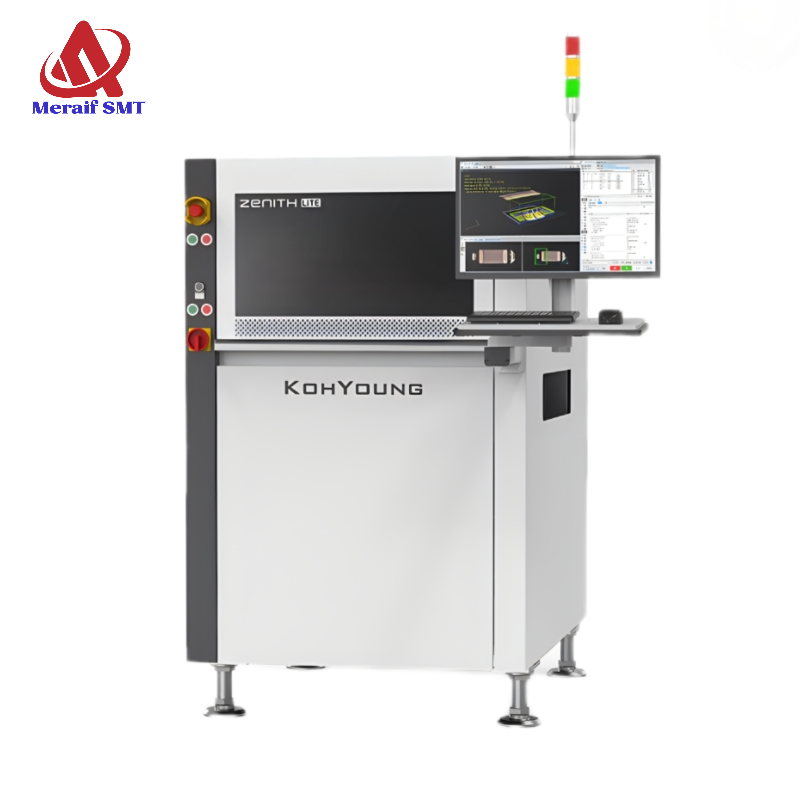

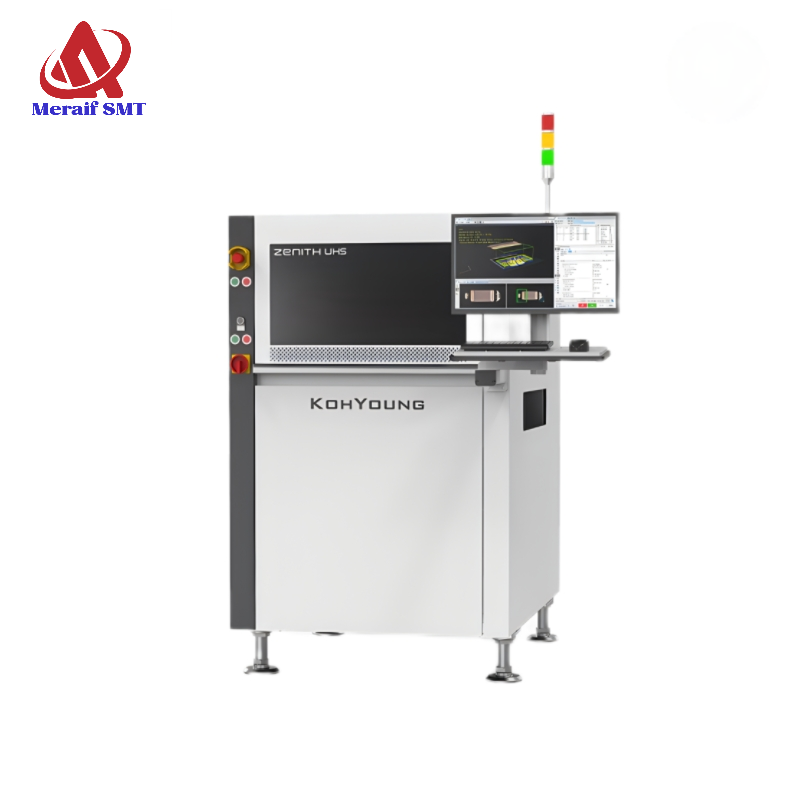

KOH YOUNG Zenith 3D AOI SMT LINE AOI Picture Show:

EXHIBITION:

SMT LINE:

KOH YOUNG Zenith Alpha 3D AOI SMT AOI For SMT Machine Line
