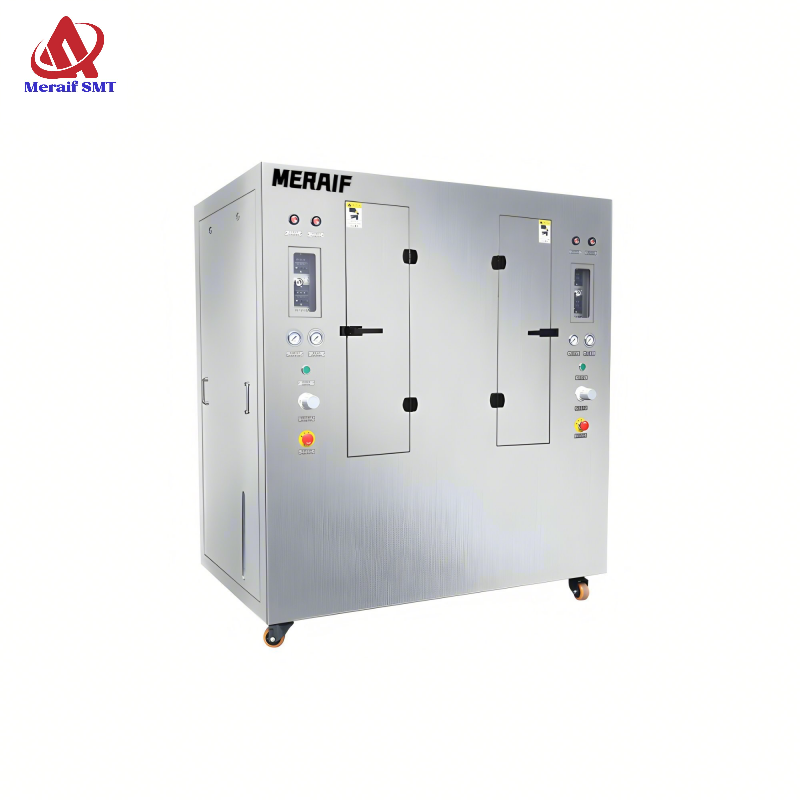

MERAIF MF-410 Squeegee clean Machine For SMT Machine Line

MF-410 Squeegee clean Machine SMT Cleaning Machine

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

MERAIF MF-410 Squeegee clean Machine Technical Parameters :

MF-410 is an off-line, compact, energy-saving and environmental protection, batch cleaning SMT Squeegee and mis print PCB cleaning machine. MF-410 can automatically complete the cleaning, rinsing, drying process in one chamber by just push” start” key.
MF-410 squeegee cleaning machine can effectively clean solder paste and other organic and inorganic residuals on it. MF-410 also can be used to clean mis print PCB and PCBA.

Features:

1.Special designed to clean solder paste ,flux and other organic and inorganic contaminations on Squeegees or mis print PCB.
2.Clean,rinse,dry process, thoroughly clean, standby and ready to use at any time.
3.Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4.State of the process is visible through a large observation window.
5.Clean detergent heat system heat cleaning detergent to a certain temp, raise cleaning efficiency and reduce clean time.
6.Easy operation interface, quick setting clean parameters. Different passwords can be set.
7.Inner filter makes detergent used repeated. Real-time measure DI water resistivity and monitoring cleaning effect. Resistivity range is 0~18 MΩ.
8.The remaining detergent in the pump and pipes are blown off by compressed air and flow back to cleaning tank. This function saves detergent up to 50%.
9.Totally SUS304 structure, very firm and attractive.
10.Connect with DI water machine to clean high requirement products.
11.Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in a cycle automatically.
12.Clean liquid and water heat and temperature keeping function.
13.Closed-loop clean and rinse, clean detergent and rinse water are cycling filtered and reused in the machine.
14.Standard equipped solution and water auto fill in and discharge function.

Main Modular The device has an integrated structure and can automatically conduct wash, rinse, and dry processes in one chamber.

1. Wash: chemical liquid ultrsonic and spray wash, wash time and temperature can be set.

2. Rinse: DI water spray rinse, rinse time and temperature can be set.

3. Dry: hot air dry, dry time and temperature can be set.

Flow chart Put in squeegees→liquid wash →liquid take back→DI water rinse→DI water take back→Hot air blow dry→take out squeegees
