MERAIF MF30 SMT Nozzle Cleaner Machine SMT Cleaning Machine SMT Nozzle Cleaning Machine For Led Pick and Place Machine SMT Machine Line SMT Assembly Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF MF30 SMT Nozzle Cleaner Machine Technical Parameters :
|
No. |
Item details |
Spec. |
|
1 |
Air pressure |
Compressed air |
|
2 |
Input air pressure |
0.5~0.7Mpa |
|
3 |
Spay pressure |
<=0.4Mpa |
|
4 |
Input air pipe |
￠8 |
|
5 |
Wast water pipe |
￠6 |
|
6 |
Wash water |
DI water |
|
7 |
Consumable |
<=300cc/h(5cc/min) |
|
8 |
Water box |
800cc |
|
9 |
Power supply |
AC220V,2A |
|
10 |
Power |
250w |
|
11 |
Working temp |
-5℃~RT(no freeze) |
|
12 |
Water temp |
0℃~RT(no freeze) |
|
13 |
Humidity |
10~60%RH |
|
14 |
Dust |
0.1mg/cm3 |
|
15 |
Corrosive gas |
Not alllowed |
|
16 |
Machine size |
L530*W460*H630(mm) |
|
17 |
Weight |
40KG |
MF30 Withit special mechanical design, using the hydrodynamic water fragmentation,producing very fine water mist,with the speed of sound (V=360m/s) to form a strong momentum jet to the nozzle, nozzle for cleaning at the top of the formation of a continuous field,crushing the internal surface of the dirt (the nozzle will not be damaged because of its independent device),during the cleaning process the used cleaning water (deionized water or distilled water) automatic direct emissions.
Features:
1. Wash 30 small nozzles in one time. 2. Thoroughly clean the dirt on nozzles which ultrasonic cleaner can not clean. 3. Strong clean power for nozzles ,even the smallest nozzle hole. 4. Very good cleaning effectiveness, extend lifespan of the nozzles. 5. No damage to the coating layer of the nozzle and its reflector panel. 6. Only use DI water or distilled water . 7. Auto clean and dry. 8. Easy operation. 9. All kinds of mounter nozzles can be washed.
Benifits:
1. To reduce the cost of nozzle; Use EC30 cleaning machine can clean dirty nozzle very well,to prolong nozzle life.
2. To reduce labors; As the machine clean full automatically,the machine complete the whole process by itself,so there is no need person in charge of it.
3. To reduce reject rate and defective rate of products effectively,improve SMT productivity; The dirty and uneven nozzle may easy make the production line cast material or mount shift,and cause the poor welding. Use this cleaning machine,it can keep the nozzle always new,greatly improve the production efficiency.

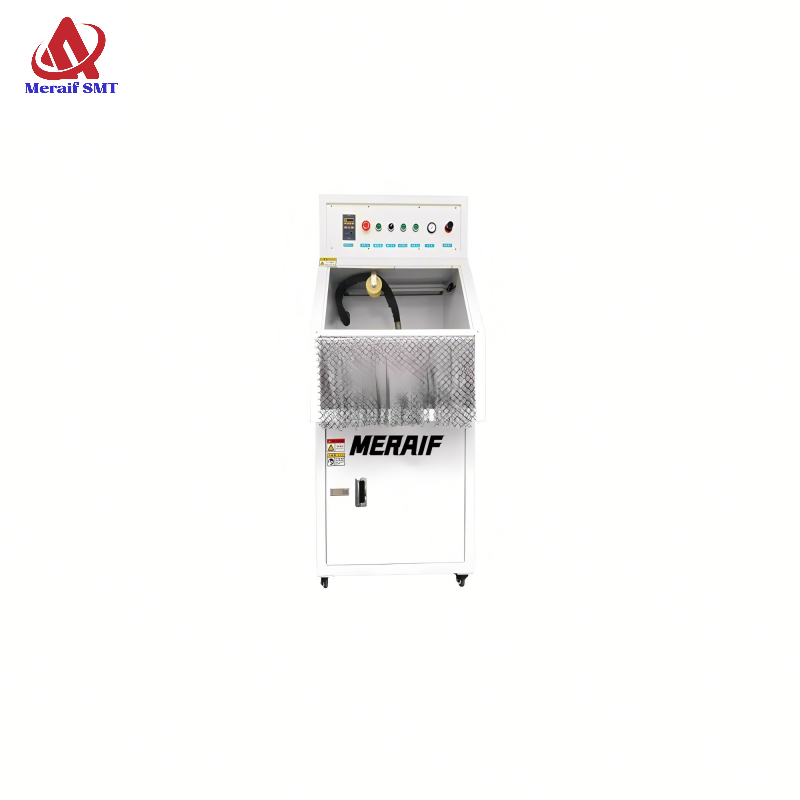

MERAIF MF30 SMT Nozzle Cleaner Machine Picture Show:
EXHIBITION:
SMT LINE:
