MERAIF MF-320 Electric Stencil Cleaning Machine For SMT Machine Line

Stencil size:L737*W737*H40(mm)

Lqiuid/water tank:60L/60L

Wash time :3~5min

Rinse time:1~2min

Dry time:3~6min

Wash/rinse pressure:4~5kg/cm2

Wash liquid:water based liquid

Rinse water:DI water

Dry method:Hot air blow dry

Lqiuid temp:0~60℃

Hot air dry temp:0~90℃

Liquid heater:9KW

Water heater:9KW

Hot air heater:6KW

Lqiuid/water filter:1um/1um

Weight:730KG

Machine size:L1300*W1400*H1950(mm)

Product Description

MERAIF SMT Cleaner Machine MF-320 Electric Stencil Cleaning Machine Stencil Cleaners PCB Washer Machine PCB Washing Machine PCB Cleaner Machine In SMT Line

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

MERAIF MF-320 Electric Stencil Cleaning Machine Technical Parameters :

Model	MF-320
Stencil size	L737W737H40(mm)
Lqiuid/Water tank	60L/60L
Wash time	3~5min
Rinse time	1~2min,
Dry time	3~6min
Wash/Rinse pressure	4~5kg/cm2
Wash liquid	water based liquid
Rinse water	DI water
Dry method	Hot air blow dry
Lqiuid temp	0~60ºC
Hot Air Dry temp	0~90ºC
Liquid heater	9KW
Water heater	9KW
Hot air heater	6KW
Lqiuid/water filter	1um/1um
Power/air supply	AC380V,50/60HZ,28KW/0.5~0.7Mpa
Weight	730KG
Machine size	L1300W1400H1950(mm)

MERAIF MF-320 Electric Stencil Cleaning Machine Details:

MF-320 is a device for cleaning printed circuit boards (PCBs) and stencils, mainly used to remove surface dirt and residues to ensure production quality. Here are the details about this machine:

Types and functions
Electric Stencil Cleaning Machine is mainly divided into two types: electric spray type and pneumatic type:

Electric spray type: This machine uses a high-pressure spray system for cleaning, suitable for SMT (surface mount technology) production lines, and can efficiently clean PCBs and stencils. Its key parameters include a maximum spray pressure of 2-3 kg, a maximum liquid capacity of 50 liters, and an optimal liquid volume of 40 liters.

Pneumatic type: This machine uses compressed air for cleaning, suitable for SMT/PCB/LED/SMD production lines.

Feature

SUS 304 structure, acid and alkali corrosion resistance, 15 years lifespan
Mainly used to clean SMT solder paste stencil, red glue stencil/cooper stencil,

misprint PCB,PCBA
4 spray rods and 4 air knives fixed and stencil moves clean mechanism, more stable
The real-time clean liquid and rinse DI water filtering system
All process is visible through a large right side observe window
The remaining liquid in the pump and pipes are blown off by compressed air and

flow back to cleaning tank. This function saves liquid up to 50%
English color touch Panel operational interface, PLC procedure control, clean time,

cleaning liquid temperature, rinse time and rinse water temperature, hot air dry time

and temperature can be set and monitored as required
Wash liquid and rinse water can be added and discharged automatically
Easy operation

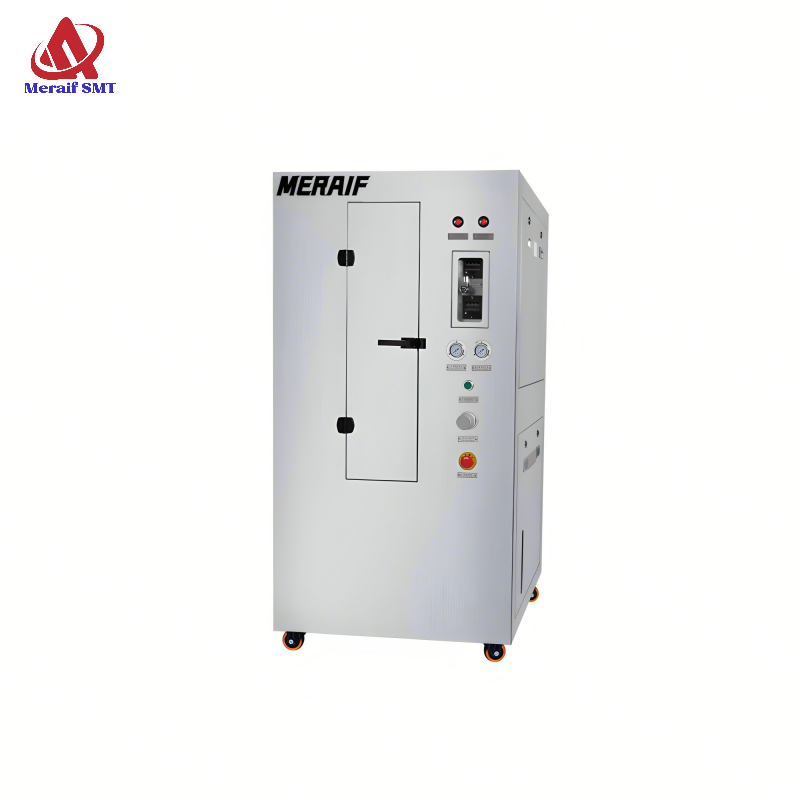

MERAIF MF-320 Electric Stencil Cleaning Machine Picture Show:
