MERAIF SMT Cleaner Machine MF-520 PCBA Cleaning Machine Mobile PCB Cleaner Machine Ultrasonic Cleaner In SMT Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF MF-520 PCBA Cleaning Machine Technical Parameters :
| Model | MF-520 |
| Wash basket | L700*W700*H150(mm), 2 layers |
| Liquid tank capacity | 60L |
| Concerntrate liquid tank capacity | 30L |
| Temporary tank capacity | 18L |
| Clean time | 10~20min(0~99min adjustable) |
| Rinse time | 1~3min/times(0~10min adjustanble) |
| Hot air dry time | 15~30min(0~60min adjustable) |
| Rinse times | 3~5times(1~9 times adjustable) |
| Cleaning liquid temp | room temp~75ºC |
| Rinse DI water temp | room temp~75ºC |
| Hot air dry temp | room temp~99ºC |
| Liquid tank heater power | 9KW |
| Temporary tank heater power | 6KW |
| Temporary tank heater power | 6KW |
| Hot air heater power | 7.5KW |
| Resistivity range | 0~18MΩ |
| Electric pump | 4.0KW |
| Air pump | ARO 1 Inch |
| Liquid Spray pressure | 0~5kgf/cm2 |
| Liquid filter | 1um |
| DI water filter | 1um |
| Air vent size | φ100XH30(mm) |
| Power/air supply | AC380V,50/60HZ,65A /0.5~0.7Mpa,200~400L/Min |
| Machine size | L1400xW1400xH1950(mm) |
- Comprehensive flux wash system: rosin flux, water-soluble flux, no-clean flux /solder paste and other organic and inorganic materials. Also PCB, stencil and pallets.
- PC+PLC control, windows operational interface, easy operation. Indeed PC software. It can connect to customer MES system and upload all wash parameters and machine conditions. Liquid/DI water spray pressure, temperature, time and hot air temperature and time can be edit and setting on PC operation software.
- Liquid/water spray pressure; liquid/water/hot air temperature; wash/rinse/hot air dry time are auto digital detect and edit on machine programe.
- Liquid real time filtered to avoid flux residual and solder balls stay on PCBA with liquid.
- Liquid wash and DI water are separated 2 independent systems to avoid mix of liquid and water.
- DI water heat function for some cold weather condition and easier and efficient for PCBA rinse.
- Double rinse water tanks to cut 25~30% DI water amount each cycle.
- Optional DI water close loop use modular( sand, carbon+resin system). Two layers basket, one layer L610*W560*H100(mm),make totally big wash area as L1210*W1120*H100(mm) .
- Basket moving rack: by using frame bend racks, the basket moves smoothly and stable.
- Special PCB fix jigs and universal fixing jigs can be chose according to your PCBA wash requirements.
- 2 layers front door seal design: no liquid leak from front door.
- Liquid concentration compensation function: small liquid auto add concentrated liquid to liquid tank to compensate and maintain liquid concentration degrease.
- DI water resistivity monitoring function.
- MES connection function, scanner (option).
- Electric control system protection.

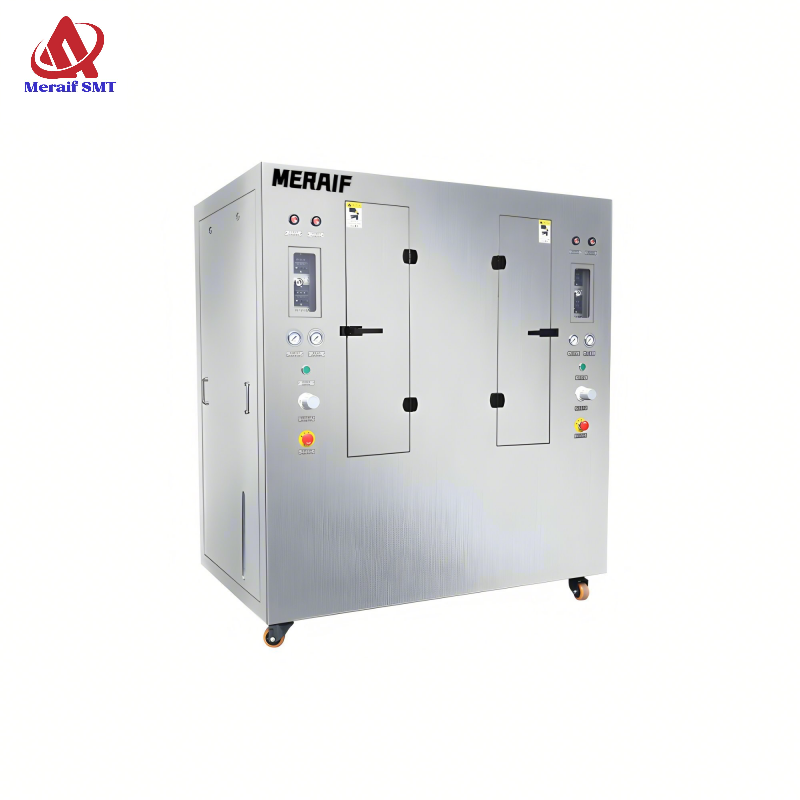

MERAIF MF-520 PCBA Cleaning Machine Picture Show:
'
