MERAIF MF-210 Pallet Cleaning Machine Technical Parameters :
| ITEM | SPEC |
| Cleaning basket diameter | Φ1000mm, clean height 450mm or 550mm option |
| Spray unit: | Upper/lower/front side,720°, all-around spray |
| 3-level filter system: | 2mm /100um/20um filters |
| Clean tank capacity : | 80L |
| Rinse tank capacity: | 80L |
| Clean spray pressure: | 5~6 kg/cm2 |
| Clean time : | 5~15 Min |
| Rinse time: | 1~3 Min |
| Dry time: | 10~20Min |
| Clean liquid heat temp : | Room temp~80ºC |
| Rinse water heat temp : | Room temp~80ºC |
| Hot air heat temp: | Room temp~90ºC |
| Clean/Rinse pump power : | 2.2KW/1.1kw |
| Liquid/Water heaater power: | 9KW |
| Hot air heat power : | 9KW |
| Air blower power : | 4.0KW |
| Air supply: | 0.5~0.7Mpa |
| Power supply : | 3 P,AC 380V,50/60HZ,33KW |
| Machine size : | L1400 x W2000 x H 1450 (mm) |
| Machine Weight: | 600KG |
- Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive
- 1 meter diameter big cleaning round basket, can clean 20~40 pcs fixtures at one time
-
Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotatesduring cleaning
- Clean liquid pressure up to 6kg/cm2, make it throughly clean of whole fixture
-
PLC program control, Touch-panel operation,cleaning parameters can be set and changeconveniently
-
Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in acycle automatically
-
Clean liquid and water heat and temperature keeping function
-
Closed-loop clean and rinse, clean detergent and rinse water are cycling filtered and reused inthe machine
- Standard equipped solution and water auto fill in and discharge function
- Pallets are clean and dry after cleaning, standby and ready for use at any time

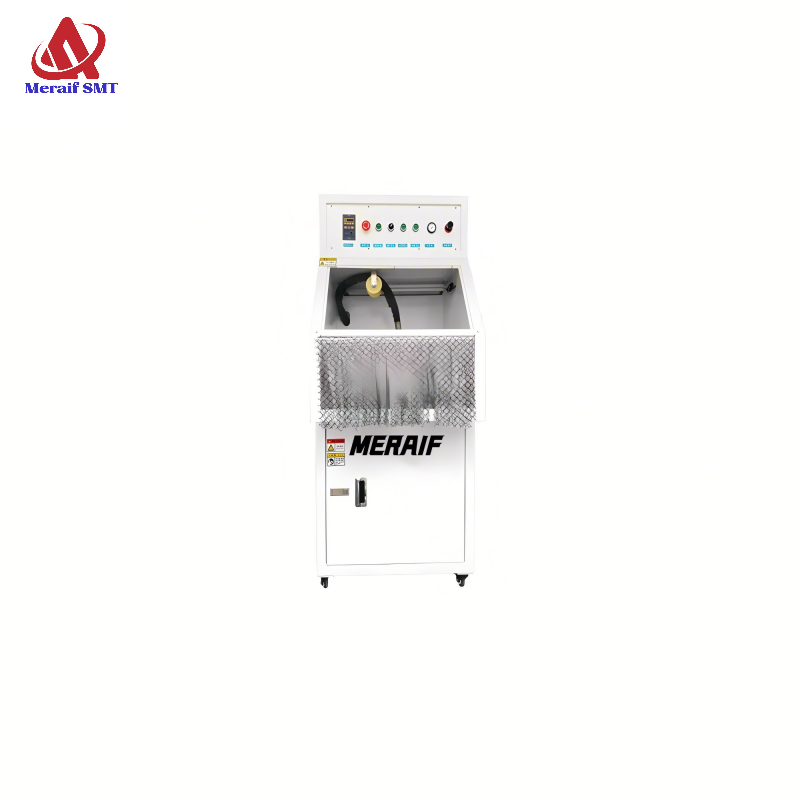

MERAIF MF-210 Pallet Cleaning Machine Picture Show:
