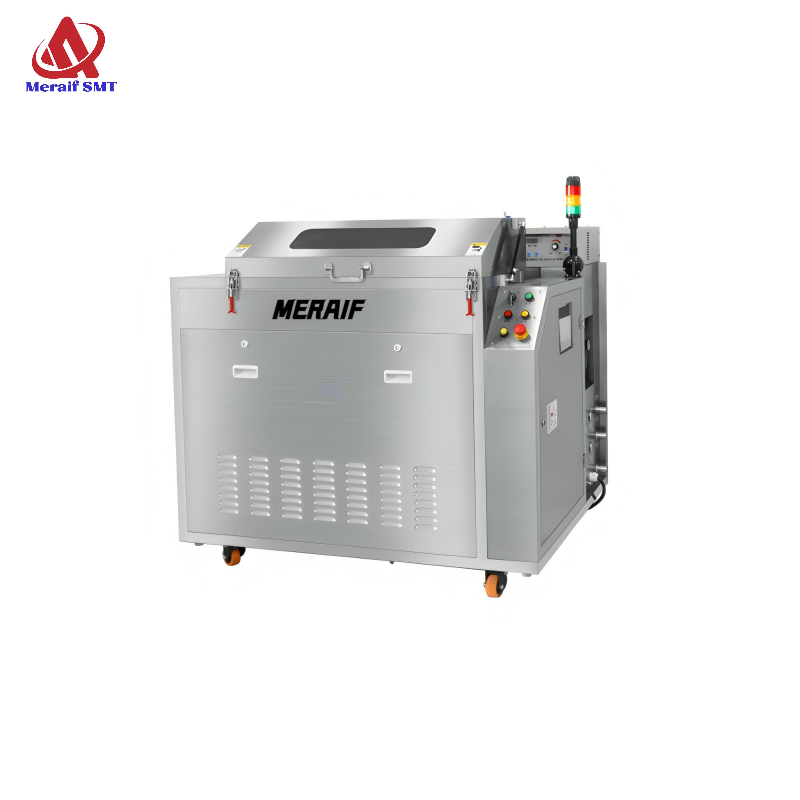

MERAIF MF-310 SMT Machine PCB Clean Machine PCBA stencil Cleaner SMT Stencil Cleaning Machine For SMT Machine Line SMT Assembly Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
MERAIF MF-310 PCB Cleaning Machine Technical Parameters :
|
Model |
MF310 |
|
|
1 |
Stencil size |
L750*W750*H40mm as max |
|
2 |
Liquid tank capacity |
40L |
|
3 |
Wash method |
360°double side rotary nozzles liquid spray wash |
|
4 |
Dry method |
360°double side rotary nozzles spray liquid air blow dry |
|
5 |
Clean time |
3-5 min（solder paste stencil） |
|
6 |
Dry time |
3-5 min（solder paste stencil） |
|
7 |
Filter system |
1mm SUS 304 fliter net;20um filter bag;1um cotton filter; |
|
8 |
Air supply |
0.5Mpa~ 0.7Mpa,400~600L/Min |
|
9 |
Net weight |
230Kg |
|
10 |
Machine size |
L800*W950*H1650mm |
The fully automatic PCB cleaning machine MF-310 is a pneumatic stencil cleaning machine which used to clean SMT solder paste or red glue printing stencil. Famous pneumatic parts,strictly produce process,patented rotation spray rods guarantee you a high quality stencil cleaning machine.
1. Main modular
Main Features：
1) SUS 304 structure, Acid and Alkali corrosion resistance, 15 years lifespan.
2) All liquid pipes are SUS304, no plastic pipes at all.
3) Both solvent and cleaning liquid can be used in this machine.
4) Driven by compressed air, no use electric power,100% safe by using solvent.
5) One button easy operation, clean and dry complete automatically.
6) 360°rotate spray rods on both sides , ensure good cleaning quality and stable stencil tension.
7) Liquid recycle use, low consumption.
8) Inner-lock safety door and safety valve, once open, machine will be stopped immediately.
9) 3-level precise liquid filtering system. Liquid used repeatedly.
10) Super well-known Pneumatic parts from all over the word manufactures.
11) Modular design, easy maintenance.
a compact machine, wash,dry in one combinet.
1) wash: liquid or solvent wash, wash time can be adjusted.
2) dry：compressed air blow dry, dry time can be adjusted.
2. Basic wash flow rate
Put in stencil→Liquid or solvent wash →compressed air blow dry→take out stencil
