SMT Placement Solution Smd Mounting Machine Mirae MAI-H8T SMT Hybrid Placement Machine Led Pick and Place Machine For SMT Assembly Line SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
Mirae MAI-H8T SMT Hybrid Placement Machine Technical Parameters :
|
Model |
MAl-H8T |
MAl-H12T |
|
|
Performance
Optimal Condtion
|
Modular |
30,000 CPH(0,12sec/chip) |
33,000 CPH(0,11sec/chip) |
|
|
OFP |
21,000 CPH(0.17sec/chip) |
23,000 CPH(0,15sec/chip) |
|
Performance
IPC-9850 Standard
|
Modular |
17,000 CPH(0,21sec/chip) |
18,500 CPH(0.19sec/chip) |
|
|
QFP |
11,000 CPH(0,33sec/chip) |
12,000 CPH(0,30sec/chip) |
|
Placement Accuracy |
Modular(3σ) |
±0.050mm |
|
|
|
OFP (3σ) |
±0,035mm |
|
|
Number of Precison Head |
8 Precision Head |
12 Precision Head |
|
|
Component Size |
0603～50×50mm,90×30mm |
||
|
PCB Size(LxWxT) |
Standard |
700x510×5.0mm |
600×510x5.0mm |
|
|
Mini. |
75x50×0.4mm
50x50×0.4mm (Option)
|
|
|
Maxi. Number of Tape Feeders (8mm) |
60EA
120 EA (60×2)Option
|
||
|
Feeder |
Tray |
TF5(20 palets)
SLTF(10 palets)
DLTF(35 palets)
|
TF5(20 pelets)
SLTF(10 pallets)
DLTH(35 palets)
|
|
Component Height |
55mm |
||
|
Power Requirement |
3-phase200/208/220/230/240/380/400/415/430V,50/60Hz |
||
|
Air Pressure |
0.55Mpa |
||
|
Machine Size (WxDxH) |
1,580×2,090×1,560mm |
1,580×2,090x1,560mm |
|
|
Machine Weight |
Approx.2,100Kg |
Approx,2,100Kg |
|
Mirae MAI-H8T SMT Hybrid Placement Machine Details:
▶A hybrid machine which uses SMT Mounter technology to the through hole type components
▶Assured quality by SMT level accuracy and dual inspection sources (Vision & Laser)
▶Component height inspection with Z Height Measurement Device (ZHMD) followed by component placement and performs faulty component placement detection
▶8 Precision Head, dual gantry
▶Performance IPC-9850 standard QPF(100) 15.000 CPH
▶Custom made feeders for axial, radial, stick or lose components

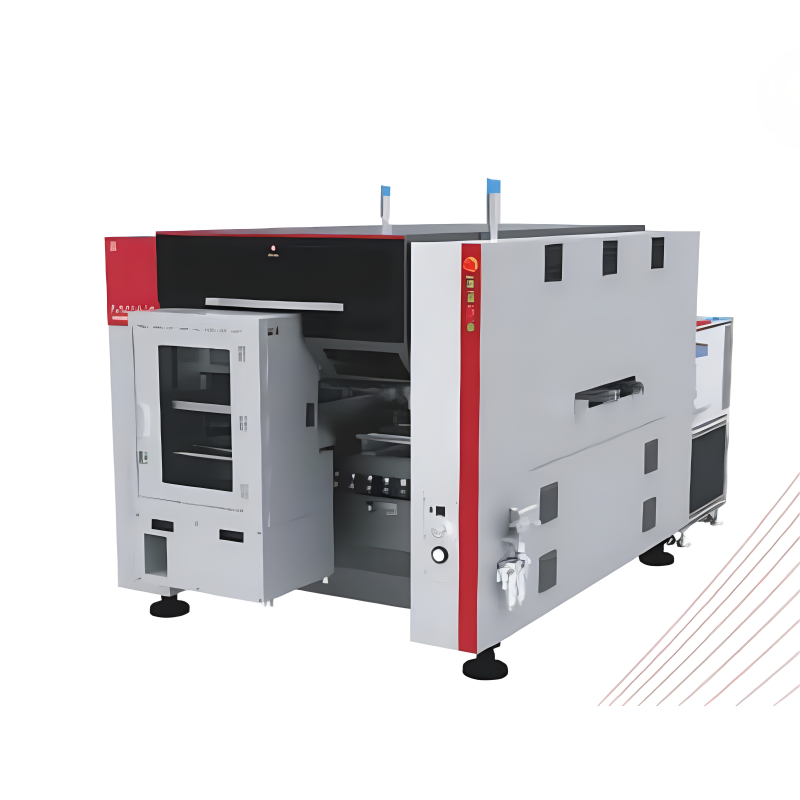

Mirae MAI-H8T SMT Hybrid Placement Machine Picture Show:
EXHIBITION:
SMT LINE:
