SMT Placement Solution Smd Mounting Machine Panasonic NPM-D3A High Volume Placer Led Pick and Place Machine For SMT Assembly Line SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
Panasonic NPM-D3A High Volume Placer Technical Parameters :
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
|
Model ID |
NPM-D3A |
||||
|
PCB
dimensions*1
|
Dual-lane mode |
L50mm ×W50 mm~L510mm ×W300mm |
|||
|
|
Single-lane mode |
L50mm×W50mm~L510mm ×W590mm |
|||
|
PCB
exchange
time
|
Dual-lane mode |
0 s No O s when cycle time is 3.6 s or less |
|||
|
|
Single-lane mode |
3.6 s When selecting short conveyors |
|||
|
Electric source |
3-phase AC200,220,380,400,420,480V 2.7kVA |
||||
|
Pneumatic source*2 |
0.5 MPa,100 L/min (A.N.R.) |
||||
|
Dimensions*2 |
W832mm×D2652mm×H1444 mm |
||||
|
Mass |
1680 kg(Only for main body:This differs depending on the option configuration.) |
||||
|
Placement head |
Lightweight 16-nozzle head V3 (Per head) |
Lightweight 8-nozzle head (Per head) |
2-nozzle head
(Per head)
|
||
|
|
High production mode[ON] |
High production mode[OFF] |
|
|
|
|
Max.speed |
46000cph (0.078s/chip) |
38000cph (0.095s/chip) |
21500cph (0.167s/chip) |
5500cph(0.655s/chip)
4250cph(0.847s/QFP)
|
|
|
Placement accuracy(Cpk≥1) |
±37μm /chip |
±30μm/chip(±25 μm/chip*6) |
±30μm/chip
±30μm/QFP
12 mm~032mm
±50μm/QFP
12 mm Under |
±30μm /QFP |
|
|
Component dimensions (mm) |
0402 chip~L6×W6×T3 |
03015/0402 chip~L6×W6×T3 |
0402 chip
~L32×W32×T12
|
0603 chip
L100×W90×T28
|
|
|
Component
supply
|
Taping |
Tape:4/8/12/16/24/32/44/56mm |
Tape:4~56/72/88/104mm |
||
|
|
|
Max.68(4,8 mm tape ,Small reel) |
|||
|
|
Stick |
|
Max.16(Single stick feeder) |
||
|
|
Tray |
|
Max.20(per tray feeder) |
||
The compact dual-beam NPM-D3A offers a reinforced frame, advanced head, and award-winning Multi Recognition Camera improve placement accuracy down to 30um, and capable achieving a maximum CPH of 92,000.
The NPM-D3 is an industry standard building block in high-speed, high volume applications ranging from automotive to industrial to medical. In fact, the vast majority of automotive EMS providers choose Panasonic Connect solutions.
Features:
▶Single head (single beam) capable of placing an impressive component array including: 0402mm to 120x90x28mm
▶Capable of placing large connectors, odd-shaped components, and advanced packaging types such as PoP
▶Interchangeable feeders, multi-functional nozzles, and chucks with the CM and NPM series
▶Cost-effective and high quality production

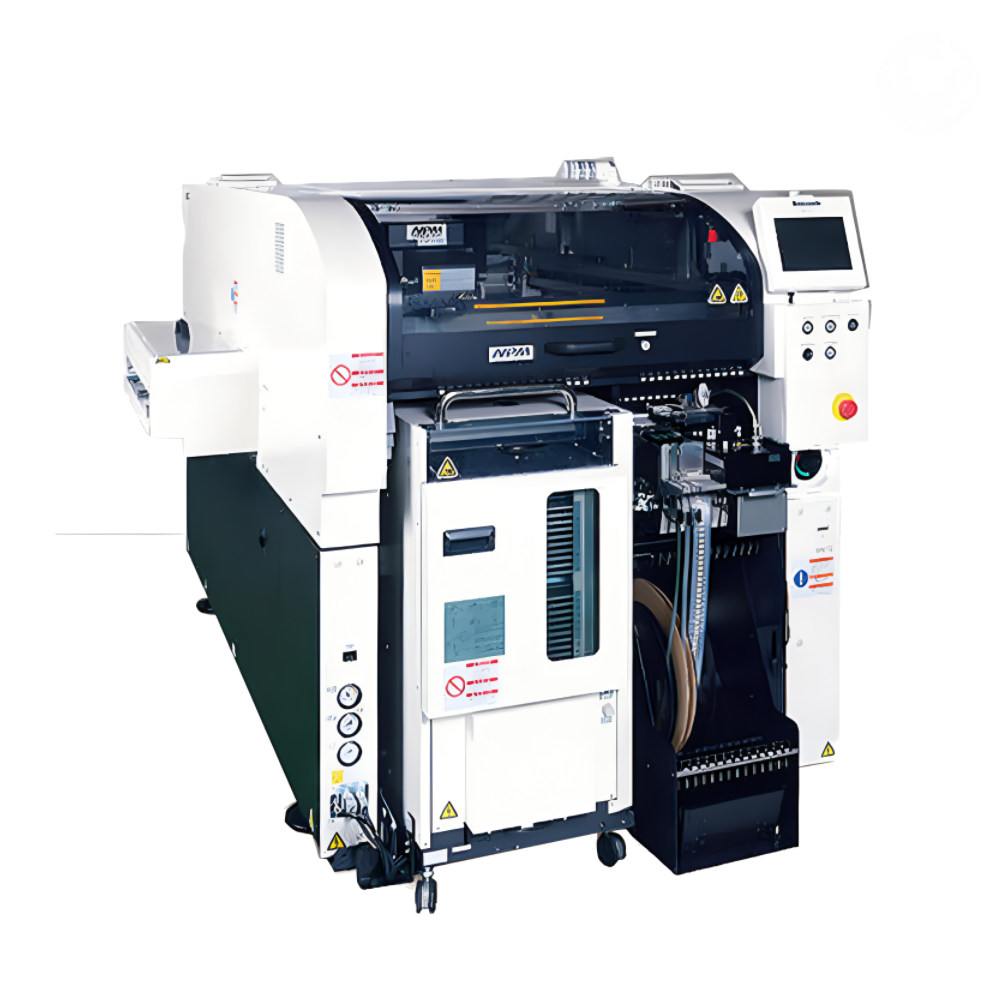

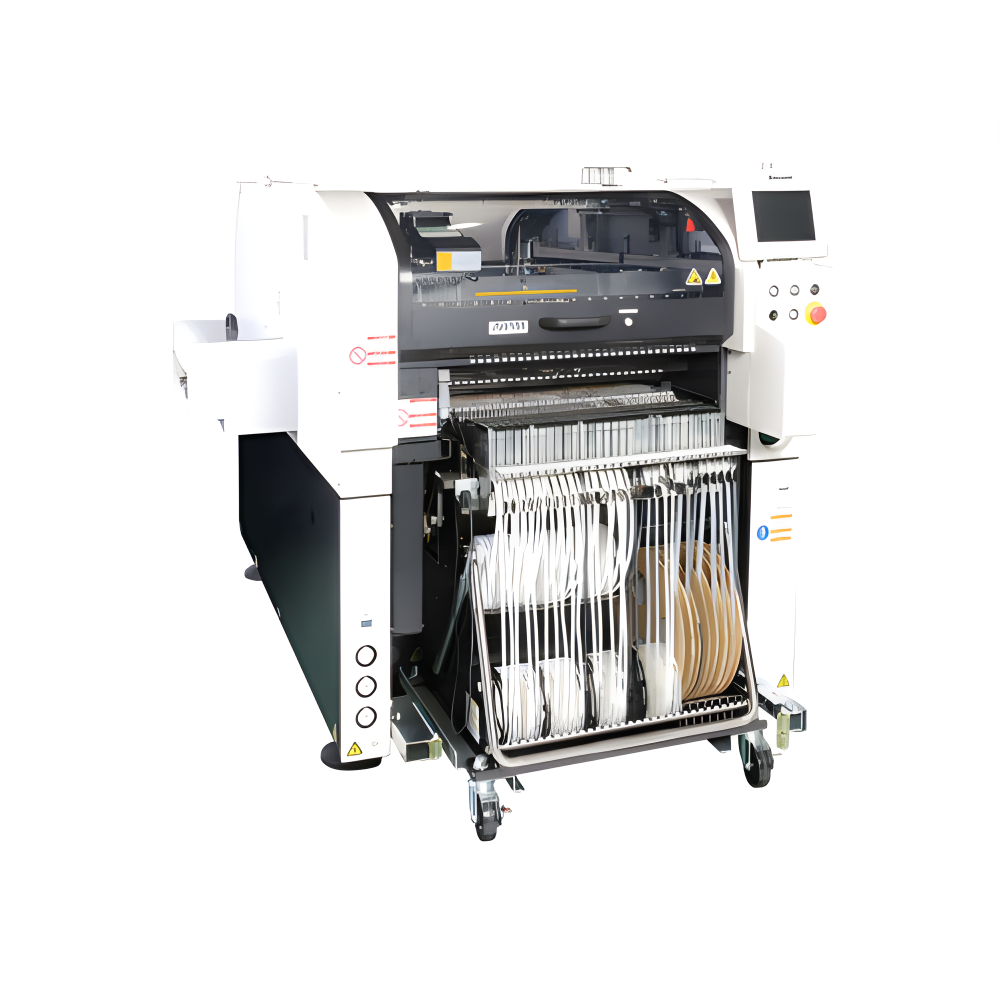

Panasonic NPM-D3A High Volume Placer Picture Show:
EXHIBITION:
SMT LINE:
