SMT Placement Solution Smd Mounting Machine Panasonic NPM-WX Dual- and Quad-beam Modular Placer Chip Mounter Led Pick and Place Machine For SMT Assembly Line SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
Panasonic NPM-WX Dual- and Quad-beam Modular Placer Technical Parameters :
Model
NPM-WX
NPM-WXS
PCB
dimensions
Single-lane
Batch mounting:
L50mm×W50mm~L750mm×W610mm
2position mounting:
L50mm×W50mm~L350mm×W610mm
Dual-lane
Dua ltransfer(Batch):
L50mm×W50mm~L750mm×W300mm
Dual transfer(2position):
L50mm×W50mm~L350mm×W300mm
Single transfer(Batch):
L50mm×W50mm~L750mm×W590mm
Single transfer(2position):
L50mm×W50mm~L350mm×W590mm
Electric source
3-phaseAC200,220,380,400,420,480V3.0kVA
3-phaseAC200,220,380,400,420,480V2.1kVA
Pneumatic source*1
Min.0.5MPa、200L/min(A.N.R.)
Dimensions
W1410mm*2×D2570mm*3×H1444mm*4
Mass
2740 kg(Only for main body:This differs depending on the option confguration.)
2660 kg (Only for main body:This differs depending on the option confguration.)
Placement head
1 head on each side (front,rear)
1 head (rear camera is optional)
Component
supply
Taping
Tape:4~56/72/88/104mm
Front rear 17-slot feeder cart specifcations:Max.136 product types(4,8 mm tape)
Stick
Front rear 17 -slot feeder cart specifications:Max.32 product types (single stick feeder)
Front rear 17 -slot feedercart specifcations:Max.16 product types*5(single stick feeder)
Tray
One side tray specifications:Max.24,Front-rear tray specifications:Max.48
One side tray stocker specifications:Max.72,Front-rear tray stocker specifcations:Max.144
Placement head
Lightweight 16-nozzle head V2(Per head)
Lightweight 8-nozzle head(Per head)
4-nozzle head(Per head)
3-nozzle head V2(Per head)
Max.speed
43000cph(0.084s/chip)
23000cph(0.155s/chip)
8400cph(0.429s/chip)
7800cph(0.462s/QFPfeeder)
7100cph(0.507s/QFPtray)*8
9400cph(0.383s/chip)
7300cph(0.493s/QFPfeeder)
6350cph(0.567s/QFPtray)*9
Placement accuracy(Cpk≥1)
±25μm/chip
±25μm/chip
±40μm/QFP12mmUnder
±25μm/QFP12mm~32mm
±20μm/QFP
±20μm/QFP
Component dimensions (mm)
0201chip*6*7/03015chip*6
0402chip*6~L6×W6×T3
0402chip*6~L45×W45×T12or
L100×W40×T12
0603chip~L120×W90×T40or
L150×W25×T40
0603chip~L120×W90×T40or
L150×W25×T40
*Placement tact time and accuracy values may differ slightly depending on conditions.
*Please refer to the specification booklet for details.
*1: Only for main body
*2: 2010 mm in width if extension conveyors (300 mm) are placed on both sides.
*3:Dimension D including feeder cart
*4: Excluding the monitor, signal tower and ceiling fan cover
*5: Stick feeders cannot be used on the rear feeder cart of NPM-WXS.
*6: 0201 / 03015 / 0402 component requires a specific nozzle / tape feeder.
*7: 0201 component placement is optional. (Under conditions specified by Panasonic)
*8: For any QFP 20 mm or less in size
*9: For any QFP 28 mm or less in size
Panasonic NPM-WX Dual- and Quad-beam Modular Placer Details:
The NPM-WX & NPM-WXS single-beam variant is designed around a stiff frame, constructed of durable materials and built to last. With onboard dual-drive linear motors complimented by light and rigid beam architecture, the NPM-WX & NPM-WXS introduces new industry-leading options; Linear servo motors with dual-drive Y and High Resolution linear scales in each motor.
Unparalleled compatibility means the right placement heads that cater to your specific needs. With faster high voltage motor drives, higher precision Θ architecture and precisely forged stainless steel nozzles and adapters, the NPM-WX & NPM-WXS sets new industry standards for handling any mix and any volume.
Features:
▶Compact footprint - scale production to your factory needs
▶Quick-change feeder carts, nozzle banks, and process heads
▶AOI information display for closed-loop M2M communication
▶3D Multi Recognition Camera
▶High speed placement up to 184,800 CPH

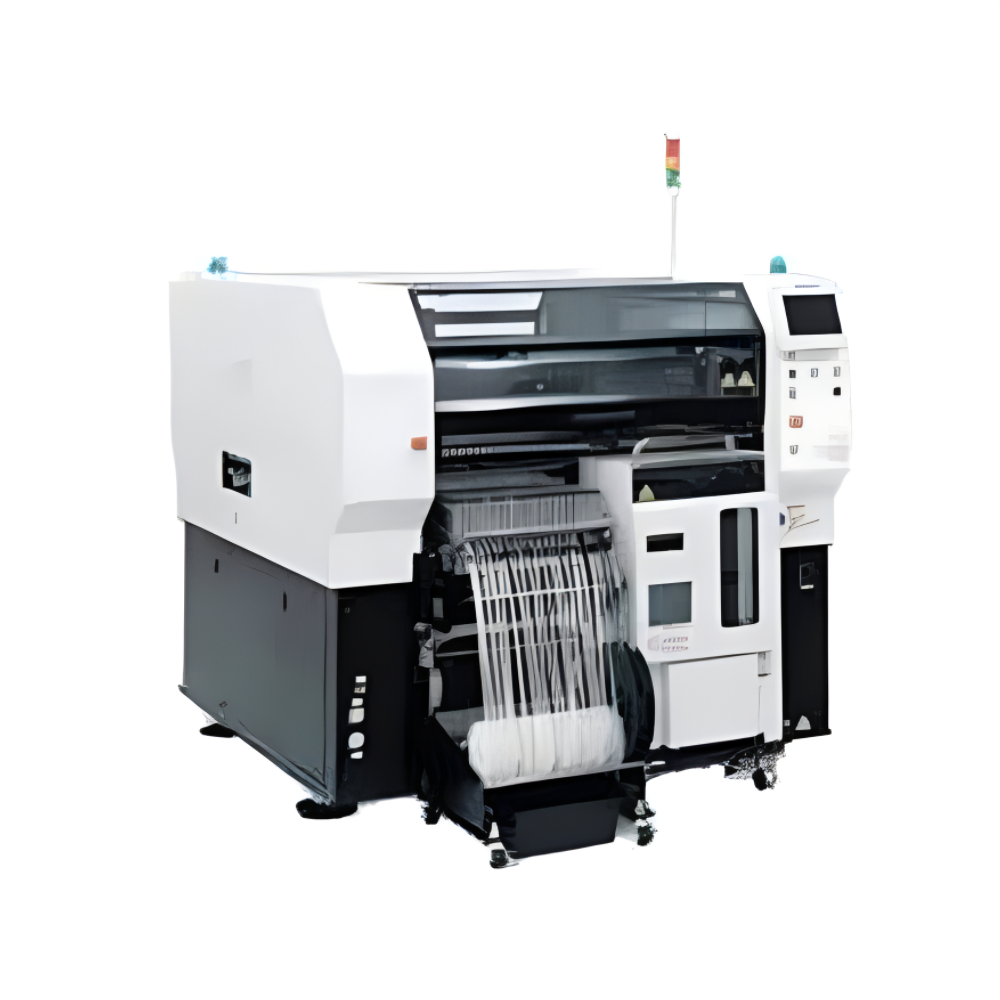

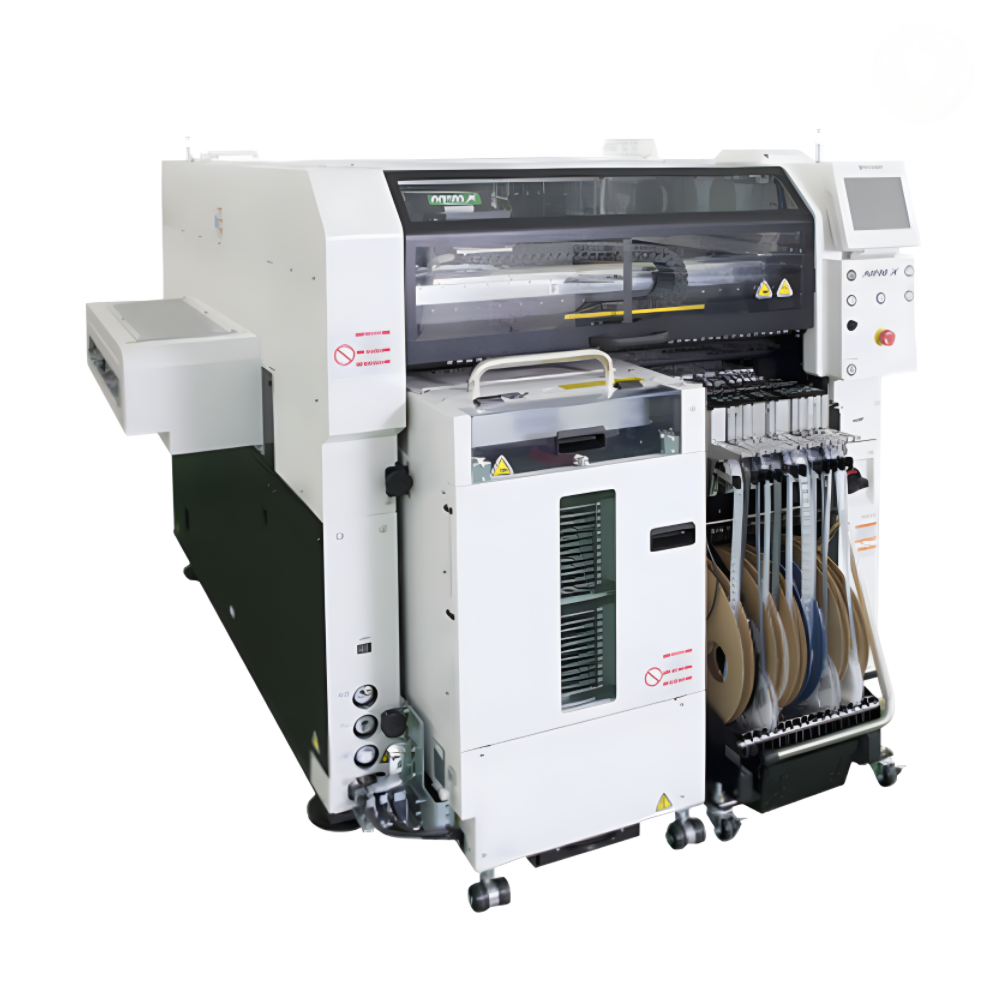

Panasonic NPM-WX Dual- and Quad-beam Modular Placer Picture Show:
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
|
Model |
NPM-WX |
NPM-WXS |
|||
|
PCB |
Single-lane |
Batch mounting: L50mm×W50mm~L750mm×W610mm |
2position mounting: L50mm×W50mm~L350mm×W610mm |
||
|
Dual-lane |
Dua ltransfer(Batch): L50mm×W50mm~L750mm×W300mm |
Dual transfer(2position): L50mm×W50mm~L350mm×W300mm |
|||
|
Single transfer(Batch): L50mm×W50mm~L750mm×W590mm |
Single transfer(2position): L50mm×W50mm~L350mm×W590mm |
||||
|
Electric source |
3-phaseAC200,220,380,400,420,480V3.0kVA |
3-phaseAC200,220,380,400,420,480V2.1kVA |
|||
|
Pneumatic source*1 |
Min.0.5MPa、200L/min(A.N.R.) |
||||
|
Dimensions |
W1410mm*2×D2570mm*3×H1444mm*4 |
||||
|
Mass |
2740 kg(Only for main body:This differs depending on the option confguration.) |
2660 kg (Only for main body:This differs depending on the option confguration.) |
|||
|
Placement head |
1 head on each side (front,rear) |
1 head (rear camera is optional) |
|||
|
Component |
Taping |
Tape:4~56/72/88/104mm |
|||
|
Front rear 17-slot feeder cart specifcations:Max.136 product types(4,8 mm tape) |
|||||
|
Stick |
Front rear 17 -slot feeder cart specifications:Max.32 product types (single stick feeder) |
Front rear 17 -slot feedercart specifcations:Max.16 product types*5(single stick feeder) |
|||
|
Tray |
One side tray specifications:Max.24,Front-rear tray specifications:Max.48 |
||||
|
Placement head |
Lightweight 16-nozzle head V2(Per head) |
Lightweight 8-nozzle head(Per head) |
4-nozzle head(Per head) |
3-nozzle head V2(Per head) |
|
|
Max.speed |
43000cph(0.084s/chip) |
23000cph(0.155s/chip) |
8400cph(0.429s/chip) |
9400cph(0.383s/chip) |
|
|
Placement accuracy(Cpk≥1) |
±25μm/chip |
±25μm/chip |
±20μm/QFP |
±20μm/QFP |
|
|
Component dimensions (mm) |
0201chip*6*7/03015chip*6 |
0402chip*6~L45×W45×T12or |
0603chip~L120×W90×T40or |
0603chip~L120×W90×T40or |
|
*Placement tact time and accuracy values may differ slightly depending on conditions.
*Please refer to the specification booklet for details.
*1: Only for main body
*2: 2010 mm in width if extension conveyors (300 mm) are placed on both sides.
*3:Dimension D including feeder cart
*4: Excluding the monitor, signal tower and ceiling fan cover
*5: Stick feeders cannot be used on the rear feeder cart of NPM-WXS.
*6: 0201 / 03015 / 0402 component requires a specific nozzle / tape feeder.
*7: 0201 component placement is optional. (Under conditions specified by Panasonic)
*8: For any QFP 20 mm or less in size
*9: For any QFP 28 mm or less in size
Unparalleled compatibility means the right placement heads that cater to your specific needs. With faster high voltage motor drives, higher precision Θ architecture and precisely forged stainless steel nozzles and adapters, the NPM-WX & NPM-WXS sets new industry standards for handling any mix and any volume.
Features:
▶Quick-change feeder carts, nozzle banks, and process heads
▶AOI information display for closed-loop M2M communication
▶3D Multi Recognition Camera
▶High speed placement up to 184,800 CPH
