Panasonic NPM-W2S Single-Beam Platform Production Modular Chip Mounter Technical Parameters :

Model		NPM-W2S
PCB dimensions	Single-lane *1	Batch mounting	L50mm×W50mm~ L750mm×W550mm		2 position mounting	L50mm×W50mm~L350mm×W550mm
	Dual-lane *1	Dual transfer(Batch)	L50mm×W50mm~ L750mm×W260mm		Dual transter	L50mm×W50mm~L350mm×W260mm
		Single transfer(Batch)	L50mm×W50mm~ L750mm×W510mm		Single transfer （2 position）	L50mm×W50mm~L350mm×W510mm
Electric source		3-phase AC200,220,380,400,420,480V 2.0kVA
Pneumatic source		0.5 MPa ,200 L/min（A.N.R.）
Dimensions*2		W1280mm*3×D2477mm*4×H1444mm*5
Mass		2390 kg(Only for main body:This differs depending on the option confguration.)
Placement head		Lightweight 16-nozzle head		12-nozzle head	Lightweight  8-nozzle head	3-nozzle head V2
Max.speed		38500cph (0.094s/chip)		32250cph (0.112 s/chip)	20800cph (0.173s/chip)	8320cph(0.433s/chip) 6500cph(0.554s/QFP)
Placement accuracy(Cpk≥1)		±30μm/chip (±25μm/chip*6)		±30μm/chip	±30μm/chip ±30μm/QFP012mm~032mm ±50μm/QFP012mmUnder	±30μm/QFP
Component dimensions (mm)		03015*7*80402*7chip~L6×W6×T3		0402*7chip L12×W12×T6.5	0402*7chip ~L32×W32×T12	0603chip ~L150×W25(diagonal152)×T30
Component supply	Taping	Tape:4/8/12/16/24/32/44/56mm			Tape:4~56mm	Tape:4~56/72/88/104mm
		Max.120(Tape:4,8mm,Small real)			Front/rear feeder cart specificatics:Max.120(Tapewidthandfeederae subjectothe codtons onthelet) Single tray specifications:Max.86(Tape width and feeder are subject to the conditions on the left) Twin tray specifications:Max. 60(Tape width and feeder aresubject to the conditions on the left)
	Stick	_			Front/rear feeder cart specifications:Max.15(Single stick feeder) Single tray specifications:Max.15(Single stick feeder) Twin tray specifications:Max.15(Single stick feeder)
	Tray	_			Single tray specifications:Max.20 Twin tray specifcations:Max.40

*Placement tact time,inspection time and accuracy values may dier slightly depending on conditions

*Please refer to the specification booklet for details.

*1: Please consult us separately should you connect it to NPM-D3/D2/D. It cannot be connected to NPM-TT and NPM.

*2 : Only for main body.

*3 : 1 880 mm in width if extension conveyors (300 mm) are placed on both sides.

*4: Dimension D including tray feeder : 2 618 mm/Dimension D including feeder cart : 2 513 mm

*5: Excluding the monitor , signal tower and ceiling fan cover.

*6: ±25μm placement support option.（Under conditions specified by Panasonic）

*7: The 03015/0402 chip requires a specific nozzle/feeder.

*8: Support for 03015 mm chip placement is optional.

 （Under conditions specified by Panasonic , Placement accuracy : ±30μm / chip）

Panasonic NPM-W2S Single-Beam Platform Production Modular Chip Mounter Details:

The highly flexible single-beam NPM-W2S is an ideal placement solution for manufacturers who value reduced setup and changeover time over volume... At a time when your lot sizes are getting smaller, customers need to tighten control of work in process, schedule more efficiently and expand feeder capacity. This need is the premise behind the NPM-W2S. The NPM-W2S is based on the NPM-W2 platform, but with the simplification of employing a single beam to access all 120 8mm inputs for increased flexibility, with an output of 38,500 CPH and accuracy of 30um.
The NPM-W2S enables customer to afford more platforms per line to increase available feeder capacity for common setups and reduced changeover. The NPM-W2S also makes an affordable line booster at the beginning or end of an existing NPM line.

Features:

▶Shares overlapping capabilities of the NPM-W2, with one of the two beams removed
▶High output of up to 38.5k CPH, as well as odd-form capability with stackable stick feed support, 100N placement force and Pin-in-Paste lighting
▶Efficient 3.5-minute Changeovers capability per module through automated functions
▶Track and trace from workorder level to reference level to complete route control
▶Award-winning camera technology merges component alignment, chip thickness, and 3D coplanarity inspection into a single pass to ensure high productivity and quality

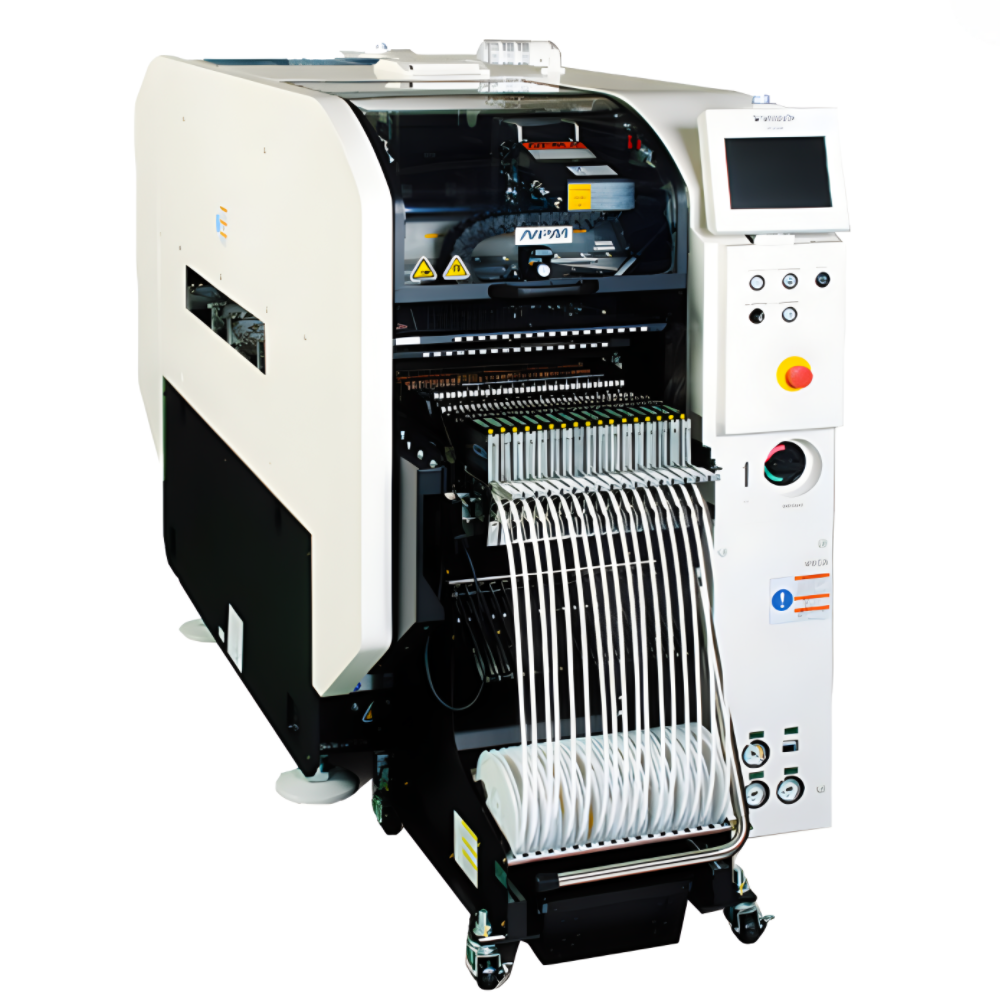

Panasonic NPM-W2S Single-Beam Platform Production Modular Chip Mounter Picture Show:
