SMT Placement Solution Smd Mounting Machine Panasonic NPM-TT2 Twin Tray Assembly Platform Chip Mounter Led Pick and Place Machine For SMT Assembly Line SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
Panasonic NPM-TT2 Twin Tray Assembly Platform Chip Mounter Technical Parameters :
Model ID
NPM-TT2
PCB dimensions
PC size
Single-lane mode
L50mm×W50mm～L510mm×W590mm
Dual-lane mode
L50mm×W50mm～L510mm×W300mm
M size
Single-lane mode
L50mm×W50mm～L510mm×W510mm
Dual-lane mode
L50mm×W50mm～L510mm×W260mm
PCB exchange time
Single-lane mode
4.0s(With no component mounted on the reverse side of PCB)
Dual-lane mode
0s**No 0s when cycle time is 4.0s or less
Electric source
3-phase AC200,220,380,400,420,480V 2.5 kVA
Pneumatic source
Min.0.5 MPa, 200L /min (A.N.R.)
Dimensions *1
W1300mm*2×D2798mm*3×H1444mm*4
Mass
2690 kg(Only for main body:This differs depending on the option confguration.)
Placement head
Lightweight 8-nozzle head(Per head)
3-nozzle head V2 *5(Per head)
Placement
speed
PC size
18000cph(0.20s/chip)
7200cph(0.50s/chip)
5900cph(0.61s/QFP)
M size
17460cph(0.21s/chip)
6984cph(0.52s/chip)
5723cph(0.63s/QFP)
Placement accuracy(Cpk≥1)
±40μm/chip
±30μm/QFP012mm～032mm
±50μm/QFP012mmUnder
±40μm/chip
±30μm/QFP
Component dimensions (mm)
0402chip*6toL32×W32×T12
0603chip～L150×W25(diagonal152)×T30
Component supply
Taping
Tape:4to56/72mm
Tape:4to56/72/88/104mm
Specifcations for front/rear tray feeders:Max.52
Specifications for front/rear feeder carts:Max.120(Tape:4、8 mm)
Stick
Specifications for front/rear tray feeders:Max.12(Single stick feeder)
Specifications for front/rear feeder carts:Max.28(Single stick feeder)
Tray
Max.40(Front supply unit :Max.20+Rear supply unit:Max.20)
*Placement tact time , inspection time and accuracy values may differ slightly depending on conditions
*Please refer to the specification booklet for details.
*1:Only for main body
*2:1820 mm in width if extension conveyors (260 mm) are placed on both sides
*3:Dimensions shown are specifications for front/rear tray feeders.Dimensions of specifications for front/rear feeder carts:2893mm
*4:Excluding the monitor, signal tower and ceiling fan cover.
*5:3-nozzle head V2 cannot be installed on NPM-D3
*6:The 0402 chip requires a specific nozzle/feeder.
Panasonic NPM-TT2 Twin Tray Assembly Platform Chip Mounter Details:
The NPM-TT2 (Next Production Modular-Twin Tray II) platform represents the next generation in twin tray modular production from Panasonic’s award-winning NPM platform—ideal for any mix.
Further bolstering the SMT process to accommodate more tray-supplied parts in full independently-run-lane mode, the NPM-TT2 processes boards up to 510 x 590mm and its dual lane functionality allows assembly of more of one product or two different products at the same time.
Featuring an advanced lightweight 3-nozzle head V2 (100N), pin-in-place lighting option and stackable stick feeders, the NPM-TT2 leads the way in terms of odd-placement capabilities.
Features:
▶Compatible with lightweight 8-nozzle or 3-nozzle head V2
▶Part Range: (01005) 0402 chip to 1 20L x 90W x 28T to BGA up to 80 x 80 component range
▶Process up to 40 trays and 26 fixed tape and reel inputs per side for a total of 92 available inputs
▶Minimize downtime with pre-pickup smart tray component inspection and interchangeable feeder and tray locations
▶Compatible with CM and NPM-series intelligent feeders & nozzles

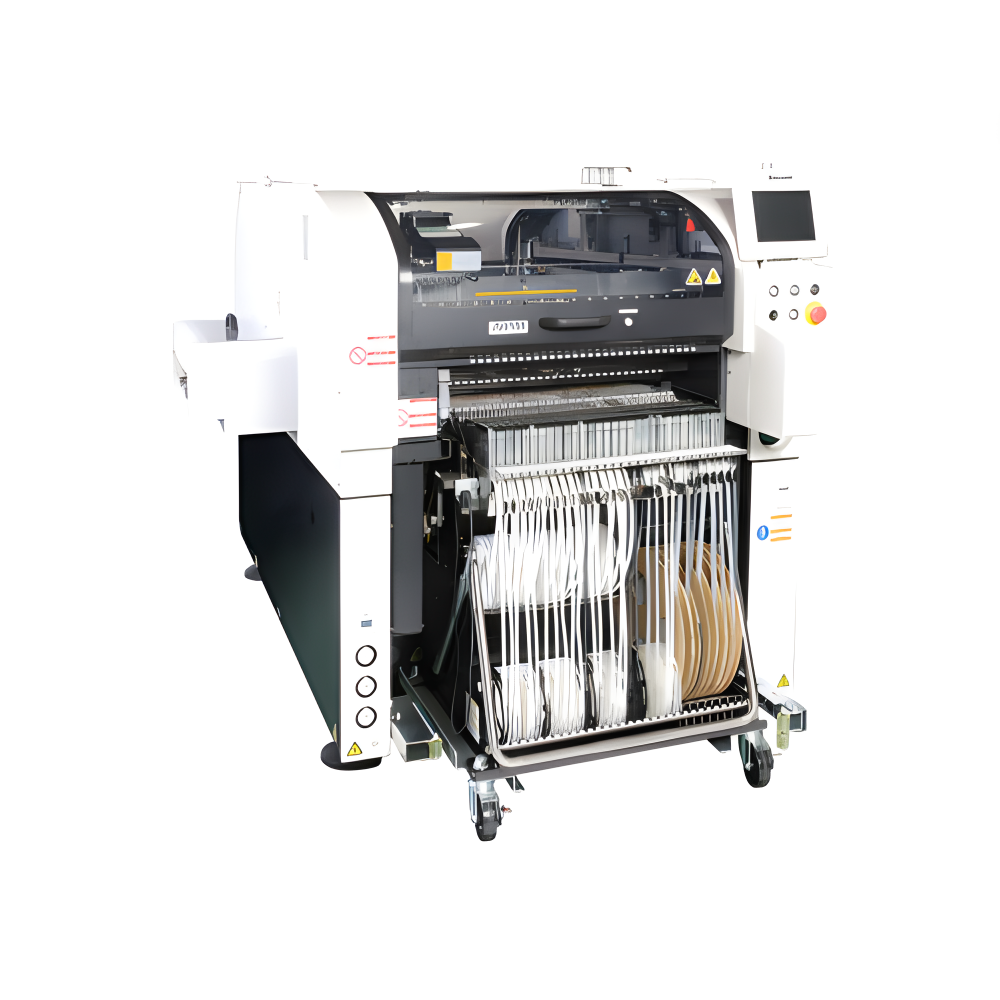

Panasonic NPM-TT2 Twin Tray Assembly Platform Chip Mounter Picture Show:
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
|
Model ID |
NPM-TT2 |
||
|
PCB dimensions |
PC size |
Single-lane mode |
L50mm×W50mm～L510mm×W590mm |
|
Dual-lane mode |
L50mm×W50mm～L510mm×W300mm |
||
|
M size |
Single-lane mode |
L50mm×W50mm～L510mm×W510mm |
|
|
Dual-lane mode |
L50mm×W50mm～L510mm×W260mm |
||
|
PCB exchange time |
Single-lane mode |
4.0s(With no component mounted on the reverse side of PCB) |
|
|
Dual-lane mode |
0s**No 0s when cycle time is 4.0s or less |
||
|
Electric source |
3-phase AC200,220,380,400,420,480V 2.5 kVA |
||
|
Pneumatic source |
Min.0.5 MPa, 200L /min (A.N.R.) |
||
|
Dimensions *1 |
W1300mm*2×D2798mm*3×H1444mm*4 |
||
|
Mass |
2690 kg(Only for main body:This differs depending on the option confguration.) |
||
|
Placement head |
Lightweight 8-nozzle head(Per head) |
3-nozzle head V2 *5(Per head) |
|
|
Placement
speed
|
PC size |
18000cph(0.20s/chip) |
7200cph(0.50s/chip)
5900cph(0.61s/QFP)
|
|
M size |
17460cph(0.21s/chip) |
6984cph(0.52s/chip)
5723cph(0.63s/QFP)
|
|
|
Placement accuracy(Cpk≥1) |
±40μm/chip
±30μm/QFP012mm～032mm
±50μm/QFP012mmUnder
|
±40μm/chip
±30μm/QFP
|
|
|
Component dimensions (mm) |
0402chip*6toL32×W32×T12 |
0603chip～L150×W25(diagonal152)×T30 |
|
|
Component supply |
Taping |
Tape:4to56/72mm |
Tape:4to56/72/88/104mm |
|
Specifcations for front/rear tray feeders:Max.52
Specifications for front/rear feeder carts:Max.120(Tape:4、8 mm)
|
|||
|
Stick |
Specifications for front/rear tray feeders:Max.12(Single stick feeder) |
||
|
Specifications for front/rear feeder carts:Max.28(Single stick feeder) |
|||
|
Tray |
Max.40(Front supply unit :Max.20+Rear supply unit:Max.20) |
||
*Placement tact time , inspection time and accuracy values may differ slightly depending on conditions
*Please refer to the specification booklet for details.
*1:Only for main body
*2:1820 mm in width if extension conveyors (260 mm) are placed on both sides
*3:Dimensions shown are specifications for front/rear tray feeders.Dimensions of specifications for front/rear feeder carts:2893mm
*4:Excluding the monitor, signal tower and ceiling fan cover.
*5:3-nozzle head V2 cannot be installed on NPM-D3
*6:The 0402 chip requires a specific nozzle/feeder.
Further bolstering the SMT process to accommodate more tray-supplied parts in full independently-run-lane mode, the NPM-TT2 processes boards up to 510 x 590mm and its dual lane functionality allows assembly of more of one product or two different products at the same time.
Featuring an advanced lightweight 3-nozzle head V2 (100N), pin-in-place lighting option and stackable stick feeders, the NPM-TT2 leads the way in terms of odd-placement capabilities.
Features:
▶Part Range: (01005) 0402 chip to 1 20L x 90W x 28T to BGA up to 80 x 80 component range
▶Process up to 40 trays and 26 fixed tape and reel inputs per side for a total of 92 available inputs
▶Minimize downtime with pre-pickup smart tray component inspection and interchangeable feeder and tray locations
▶Compatible with CM and NPM-series intelligent feeders & nozzles
