FUJI NXTR S Smart Factory Platform For SMT Machine Line

SMT Placement Solution Smd Mounting Machine FUJI NXTR S Smart Factory Platform Led Pick and Place Machine For SMT Assembly Line SMT Machine Line

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

FUJI NXTR S Smart Factory Platform Technical Parameters :

Model			NXTR S
Module			1R module		2R module
Panel size (LxW)	Single conveyor		48x48 to 750x610 mm		48x48 to 370x610 mm
	Double conveyor	Single conveyance	48x48 to 750x510 mm		48x48 to 370x510 mm
		Dual conveyance	48x48 to 750x280 mm		48x48 to 370x280 mm
Weight			610 kg		730 kg
Base			One module base		Two module base
Air consumption			50 L/min(ANR)		100 L/min (ANR)
Weight			430 kg		800 kg
Head			RH20	RH08		RH02
Throughput*			46,000 cph	24,000 cph		8,000 cph
	Productivity priority mode		50,000 cph
Placing accuracy			±0.025 mm Cpk≥1.00
Power			3-phase AC 200 to 230V±10 V (50/60 Hz)
Air			0.4 MPa

FUJI NXTR S Smart Factory Platform Details:

NXTR (S model)
The NXTR S model offers a truly modular design for the optimal line configuration that caters to your production.
Real-time sensing placement, optimized placement actions, and part handling checks after placement are just a few examples.
This high-end model machine from the NXT series supports new functions that preserve a high level of QCD performance.
Fuji is paving the way to the future of Smart Factories with NXTR.

Features:

Modular Concept
This machine continues the concept of true modularity from the NXT series.
This true modularity is a unique feature to Fuji and none of our competitors can match it.

Exchange heads in a single action

Fuji's original compact lightweight heads can be easily exchanged without using tools.
This allows operators to perform maintenance and troubleshoot unexpected problems.

Build module configurations to be optimal for your production

The quantity of robots per module and types of heads used can be selected to match your product, giving you the optimal production equipment.

Units for supporting various usages

You can select the optimum supply units to match the production type and parts used.
Feeders and other supply devices from other Fuji products you may have can also be used, encouraging efficient use of the units in your assets.

Minimal investment per module

Additional investment can be made on the scale of single modules.
You can gradually increase the production capacity to the necessary extent with minimal investment for each.

Simple work paths for efficiency

The modules are designed for single side operation that streamlines and optimizes the operation traffic.
This increases efficiency in supplying materials and performing maintenance work.

Automatic, easy, and reliable maintenance offline

Nozzles, feeders, and also heads are applicable for offline maintenance.
Using automation units ensures reliable maintenance without requiring any skills.
Linking these units with Nexim improves maintenance management.

High quality placement

Maintaining a high level of quality on all placements

Offers high accuracy placement as standard

Placements can be performed with a high accuracy of ±25 µm at all times; there are no constraints for the head type or the part to be placed.
Additionally, controlling the push-in amount during placement allows for placement with the appropriate pressure.

Places parts in a way that they are not affected by changes in the placement surface height

Adjusting the placement height
The placement stroke follows changes in the placement height due to panel warpage and distortions, which allows the machine to control the appropriate push-in amount and moreover prevents placement deviations and excess stress on parts and panels.

Checks placement within placement machines

Mark and parts inspection (MPI)
Various checks are available within placement machines to verify the process result shortly after that process: Checking placement immediately following placement, and checking placed parts before placing shield parts, for example.
This prevents production of defective products and reduces wasted time and parts.
(Under development)
- Part presence check
- Misaligned placement check

Checks for tombstoned, missing and upside-down parts

Intelligent parts sensor (IPS)
The installed IPS system can cater to a wide range of checks, from part pickup stance to parts remaining on nozzles, as well as upside-down checks for minimold parts.
It prevents placement defects attributed to packaging, nozzles, and parts.
- Check for dropped parts
- Check of the part height
- Check for parts presence
- Check for parts remaining on nozzle
- Check for stuck nozzles

Prevents defects associated with part properties

LCR check, 3D coplanarity check
Placement defects caused by operation errors and defective parts are prevented by checking the electrical properties of chip parts with LCR checks and by checking the leads and bumps on IC parts with coplanarity checks. (Option)

Places WL-CSPs with high accuracy

The camera, equipped with advanced lighting technology, ensures vision processing of WL-CSPs and other parts for which the structural context of parts are likely captured in the acquired images.
This results in high accuracy placement.

Support for various production types

Building production lines with the flexibility to handle various types of production.

Expanded conveyable panel size

The panel size coverage is expanded so that panels up to 750 x 610 mm are supported "with single conveyors" and up to 370 x 280 mm "with double conveyors" when using dual lane production.
From large panel production to highly-efficient production of producing panels in the same size, NXTR line configurations are capable of supporting a greater variety of production.

Heads that demonstrate strong capability in production

The three newly-developed heads are capable of handling an expanded part range.
They contribute to line balancing and flexible production without drops in production rates even when a different set of parts is used in the next production.

Supports high-mix production

Increase of 15% more feeders can be set versus previous machines.
In addition, the feeder changeover work can be reduced by half with batch feeder exchange because an MFU unit is used for the parts supply unit.
This contributes to improved machine availability.

Optimal placement actions tailored to the part

Operation can be optimized in various ways to suit the part being placed, such as by selecting stable and optimal operation speeds and streamlining Z direction strokes in view of the part height.
In addition to making it possible to support various parts, this also improves cycle time as well.
- Multi-level transfer speed
- Shortest Z stroke control

Automatic pin allocation even for soft backup pins

The appropriate hard-type or soft-type backup pins are allocated automatically.
This function is an effective measure to reduce work and prevent mistakes during changeover. (Option)
- Program-based positioning
- Auto allocation position check

Support for evolving placement processes

Responding to evolving parts and production models, and advancing total line efficiency

Non-stop production

By automatically saving logs and image data, signs of issues that would cause machine stops and information that would lead to problem solving is not missed, leading to faster recovery times.
Network conditions are monitored constantly, which prevents production stops associated with network issues from occurring.

Optimal production line configurations

The most appropriate modules can be selected from the two module types based on the panel size and quantity of feeders to set.
It is possible to change modules after the line has been set up.

Easy maintenance

Pulling forward the module opens up access to the inside the machine with ease from both sides.
This makes it possible to exchange heads and other units and perform maintenance work with a comfortable posture.

High-speed flux transfer

The high-speed type dip flux unit transfers flux onto the bumps of small parts. This leads to high-speed placement. (Option)

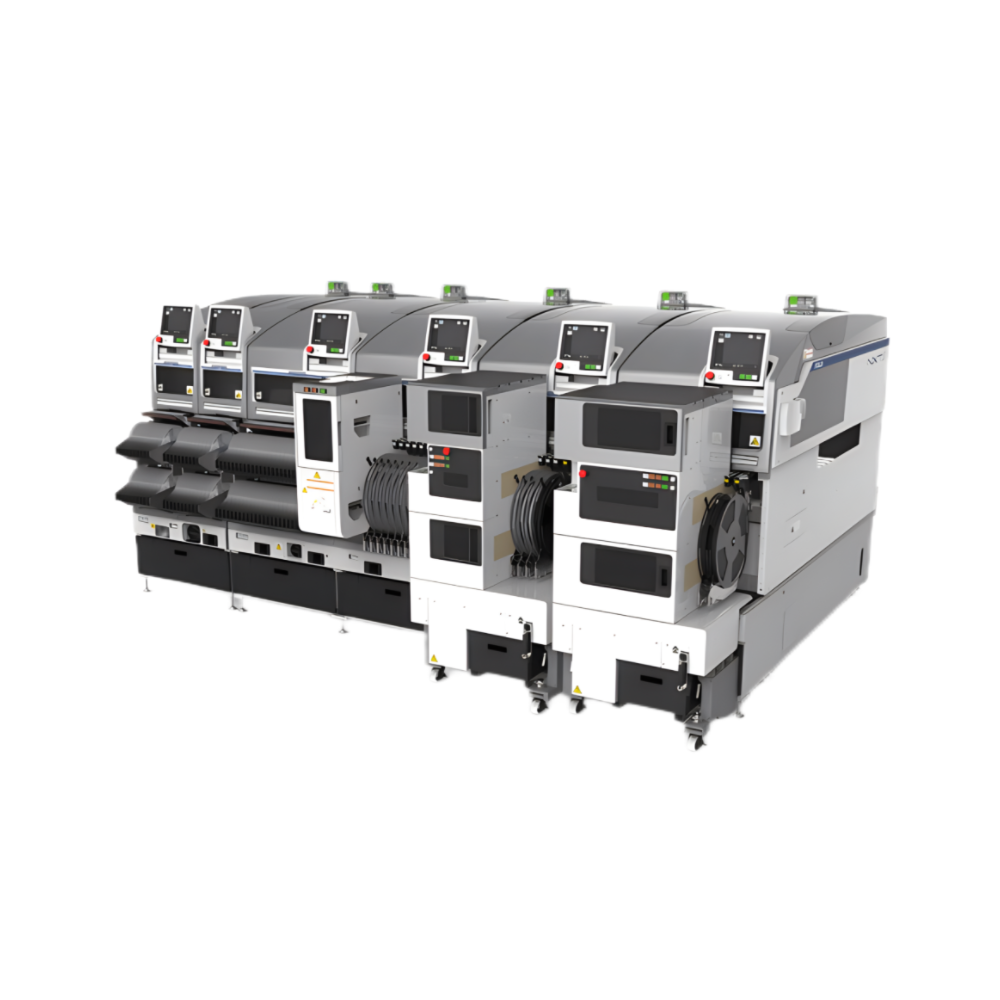

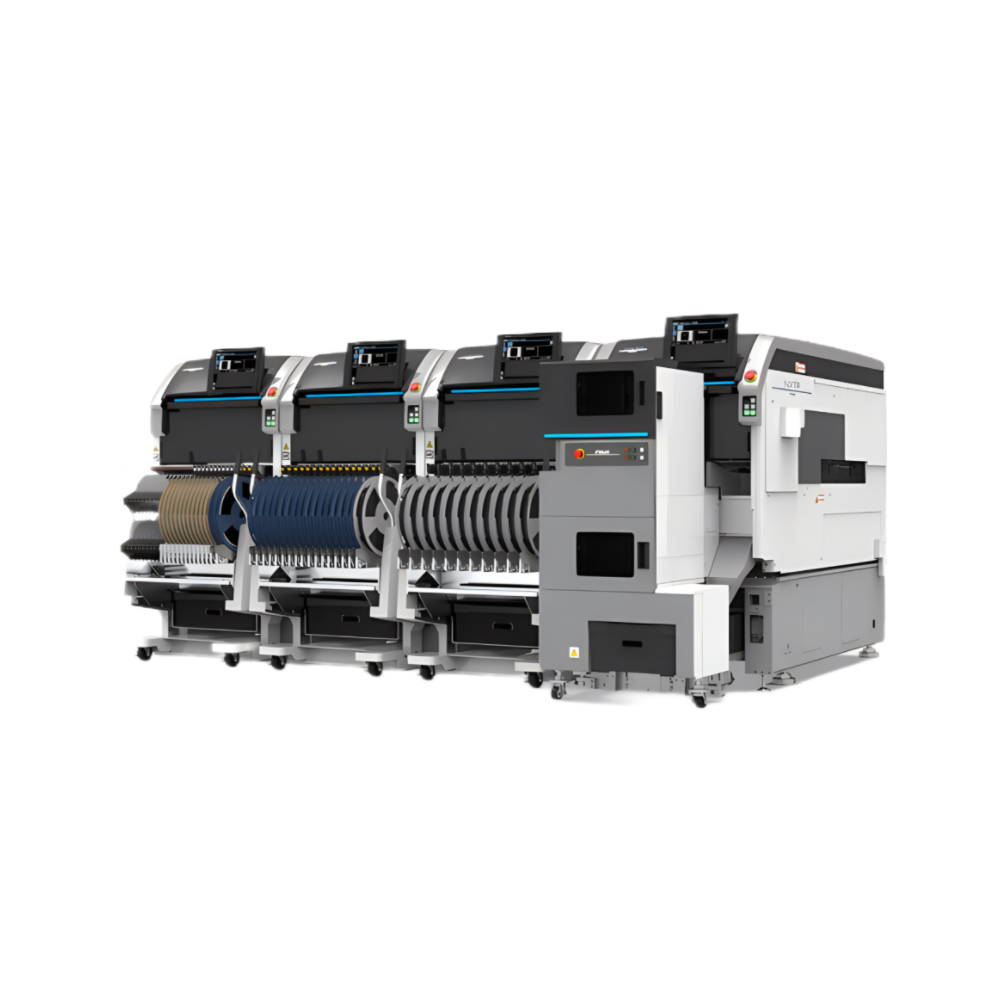

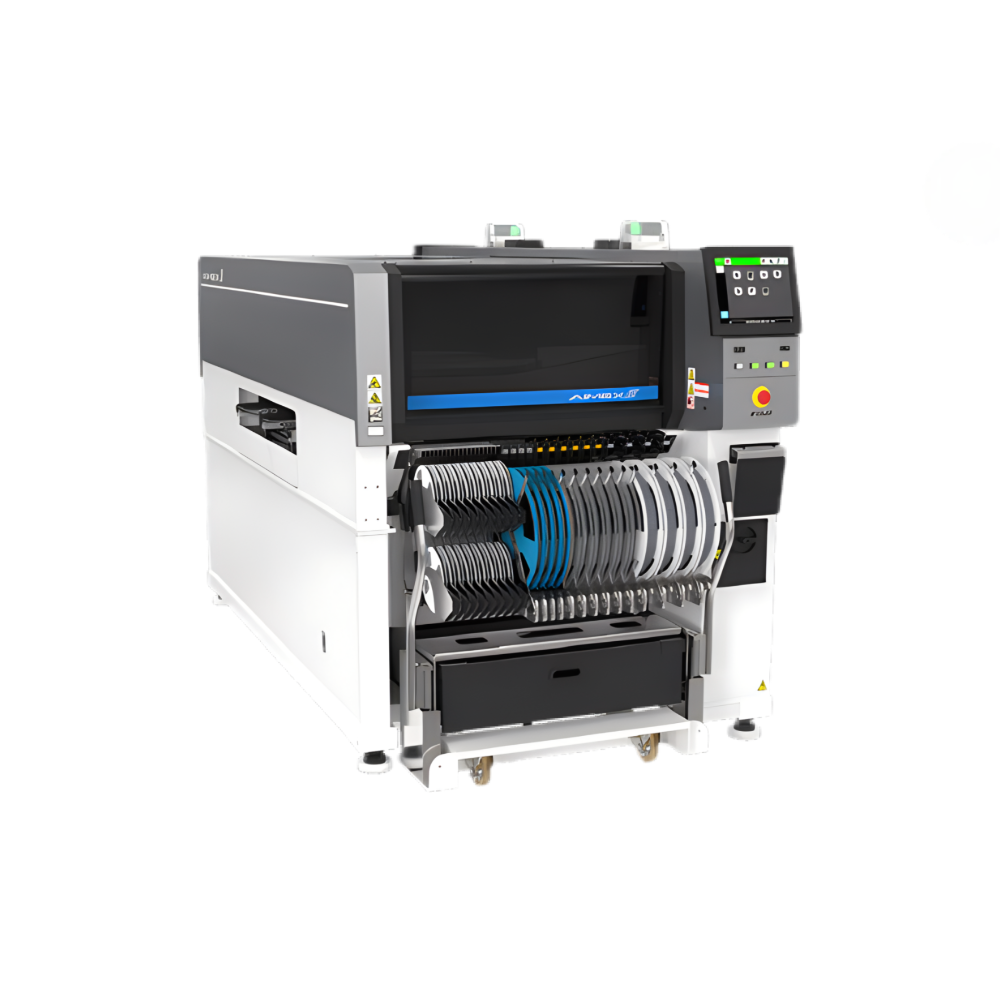

FUJI NXTR S Smart Factory Platform Picture Show:

EXHIBITION:

SMT LINE:
