SMT Placement Solution Smd Mounting Machine FUJI AIMEXR Flexible Placement Platforms Led Pick and Place Machine For SMT Assembly Line SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
FUJI AIMEXR Flexible Placement Platform Technical Parameters :
|
Model |
AIMEXR |
|||
|
Robot quantity |
2R (Twin robot) |
|||
|
Feeder slot quantity |
130 |
|||
|
Panel size (L×W) |
Single conveyor |
48x48mm to 1,068x610mm |
||
|
Placing accuracy*1 |
±0.025 mm Cpk≥1.00 |
|||
|
Weight |
1,800 kg |
|||
|
Power source |
3-phase AC200 to 230 V±10V (50/60 Hz) |
|||
|
Air |
0.4 MPa |
|||
|
Air consumption |
250 L/min (ANR) |
|||
|
Heads |
RH20 |
RH08 |
RH02 |
|
|
Throughput*1 |
Normal mode |
41,000 cph |
22,000 cph |
9,000 cph |
|
|
Productivity priority mode |
44,500 cph |
- |
- |
AIMEXR is a high-end model equipped with innovative and advanced functions that guarantee flexibility and adaptability to different types of production.
While inheriting the versatility that is a feature of the AIMEX series, the new detection function achieves high quality and high productivity, including mass production.
Features:
Further expansion of reactivity
AIMEXR is suitable for handling large connectors and heavy parts, as well as large boards that tend to warp. Despite its compact size, it is capable of flexible and wide-ranging manufacturing operations.
High quality implementation
The platform ensures stable and high-quality assembly quality. Using real-time detection technology to check the status of electronic components and boards and reflect it in the assembly, the appropriate assembly conditions are always achieved.
The fastest in the history of the series
The XY robot, which has evolved by adopting a linear motor, achieves the fastest assembly speed in the history of the series. And that's not all. Fuji is already working on further improvement in the area of productivity.
Stable operation
AIMEXR minimizes line disruptions and improves operating rates, thereby supporting production that “does not stop” and that “can be restored in the shortest possible time”.
SDG – Sustainable Development Goals
The device's energy consumption has been reduced by 10% * thanks to the adoption of a high-efficiency motor. Fuji is also working to reduce environmental impact by revising the machine's casing.

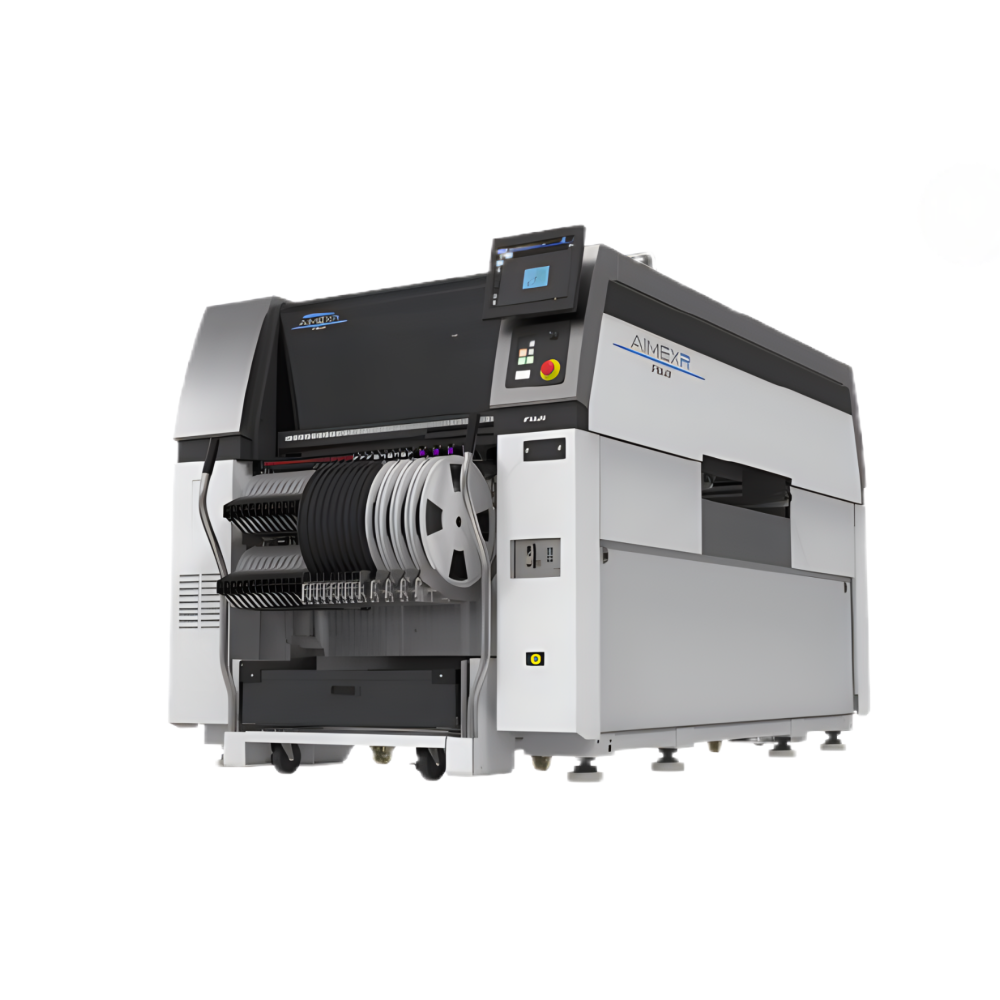

FUJI AIMEXR Flexible Placement Platform Picture Show:
EXHIBITION:
SMT LINE:
