SMT Placement Solution Smd Mounting Machine Yamaha Z:TA-R YSM40R Ultra-High-Speed Modular Led Pick and Place Machine For SMT Assembly Line SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
Yamaha Z:TA-R YSM40R Ultra-High-Speed Modular Technical Parameters :
Model
Z:TA-R YSM40R
4-Beam, 4-Head Spec. (YSM40R-4)
Applicable PCB
L700×W460mm to L50×W50mm
Mounting capability
200,000CPH (When using RS head)
Applicable components
Ultra-High-Speed (RS) Head
0201mm* to □6.5mm (Height 2.0mm or less) *option
Multi (MU) Head
03015mm to 45×60mm (Height 15mm or less)
Mounting accuracy
+/-35μm (25μm)
Number of component types
Max. 80 feeders with RS heads
Power supply
3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source
0.45MPa or more, in clean, dry state
External dimension
L1,000×W2,100×H1,550mm (excluding projections)
Weight
Approx. 2,100 kg
Yamaha Z:TA-R YSM40R Ultra-High-Speed Modular Details:
(under optimum conditions as defined by Yamaha Motor)
(Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Cpk ≧1.0 (3σ)
* 8mm width tape conversion
Max. 88 feeders with MU heads
Max. 84 feeders with RS x 2 + MU x 2 heads

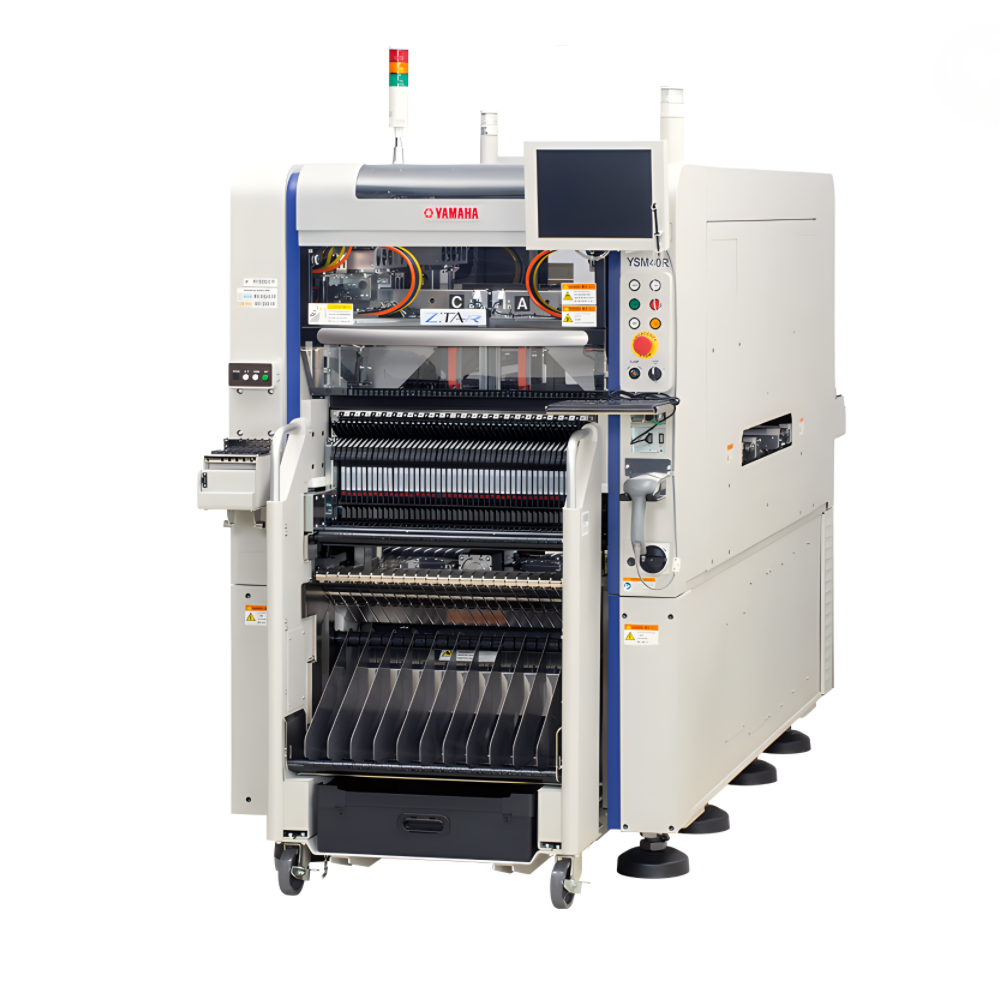

The Yamaha YSM40R is an ultra-high-speed modular mounter offering unsurpassed productivity at 200,000 CPH!
Featuring a 1m-wide compact platform and a 4-beam, 4-head layout, the YSM40R achieves high-speed production with flexible and versatile production formats.
While providing the functionality of a rotary head, the newly developed ultra-high-speed RS (Revolutionary Speed) head is also capable of simultaneous pickup. With the adoption of new, high-speed algorithms, the synergistic effect of faster control of the servo motor and the ZS feeder allows the YSM40R to deliver a mounting speed of 200,000 CPH – the fastest in the world – while also presenting an outstanding surface area and line length productivity.
Placement accuracy and mounting reliability is also improved due to the adoption of a new high-rigidity base frame, new lightweight X beam, and a newly-developed high-speed side view camera that checks the status of components in real time immediately after pickup, before and after mounting.
