SMT Placement Solution Smd Mounting Machine Yamaha Z:LEX YSM20WR High-efficiency Modular Led Pick and Place Machine For SMT Assembly Line SMT Machine Line

Yamaha Z:LEX YSM20WR High-efficiency Modular For SMT Machine Line

Model:YSM20WR

Applicable PCB(Dual lane):Note 1 Same type PCBs: L810xW356 to L50xW50 Different type PCBs: up to L810 x W662

Applicable PCB(Dual lane):Note 2 Same type PCB: L810xW280 to L50xW500 Different type PCBs: up to L810 x W510

Head / Applicable components(High-Speed Multi (HM) Head):0201mm to W55 x L100mm, Height 15mm or less

Head / Applicable components(Odd-shaped components (FM: Flexible Multi) head):03015mm to W55 x L100mm, Height 28mm or less

Mounting capability:81,000CPH

Mounting accuracy:±0.035mm (±0.025mm) Cpk≧1.0 (3σ)

Number of component Types:Fixed plate: Max. 140 types/Feeder carriage exchange: Max. 128 types/Trays for 30 types and 10 types

Power supply:3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz

Air supply source:0.45MPa or more, in clean, dry state

External dimension (excluding projections):L 1,374 x W 2,110 x H1,445mm (Main unit only)

Weight:Approx. 2,500kg (Main unit only)

Product Description

SMT Placement Solution Smd Mounting Machine Yamaha Z:LEX YSM20WR High-efficiency Modular Led Pick and Place Machine For SMT Assembly Line SMT Machine Line

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

Yamaha Z:LEX YSM20WR High-efficiency Modular Technical Parameters :

Model	YSM20WR
Applicable PCB	Dual lane Note 1 Same type PCBs: L810 x W356 to L50 x W50 Different type PCBs: up to L810 x W662 Note 2 Same type PCB: L810 x W280 to L50 x W500 Different type PCBs: up to L810 x W510
Head / Applicable components	High-Speed Multi (HM) Head Note 3 0201mm to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor)	X axis 2-beam Note 1: High-speed multi-purpose(HM: High-speed Multi) head x 2 81,000CPH
Mounting accuracy	±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types	Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source	0.45MPa or more, in clean, dry state
External dimension (excluding projections)	L 1,374 x W 2,110 x H1,445mm (Main unit only)
Weight	Approx. 2,500kg (Main unit only)

Note 1 : When using conveyor separation specifications of 787mm between 1 to 4 lanes

Note 2 : When using conveyor separation specifications of 630mm between 1 to 4 lanes

Note 3 : Please contact us for info regarding mounting 0201mm components.

Yamaha Z:LEX YSM20WR High-efficiency Modular Details:

Yamaha YSM20WR Pick and Place Machine is an all-purpose surface mounter with the highest speed in its class brings 1head solution evolution to a whole new level. This SMT mounter machine is the world's fastest mounting speed in its class; 5% faster than the YSM20 . Yamaha YSM20WR Features a new wide-scan camera with improved component adaptability. Optional features improve line operating rate without stopping the machine.

Function and Features

Superb mounting performance 95,000 CPH (under optimum conditions as defined by Yamaha Motor)
Needs no head replacement! 0201mm to large-size components
Conveyors available in freely configurable variations
Realize non-stop components supply by using Auto Loading Feeder and sATS30NS Auto Tray Sequencer (ATS)

Recommend for Such Production Site

For customers dealing with many PCB-component types and many changeovers
Highly flexible heads and efficient changeover operation ensure seamless high-mix production
Capable of handling different component and PCB sizes on the same platform
Reduces loss from line stoppages due to product changeovers to realize a "keep working" line even for high-mix production jobs
Z:LEX supports a high degree of mounting quality through meticulous follow-up-tracing in production environments using diverse component types and by revising setup-changeovers
A PCB range of applications is available fostered by multi-component production market including automotive production lines.

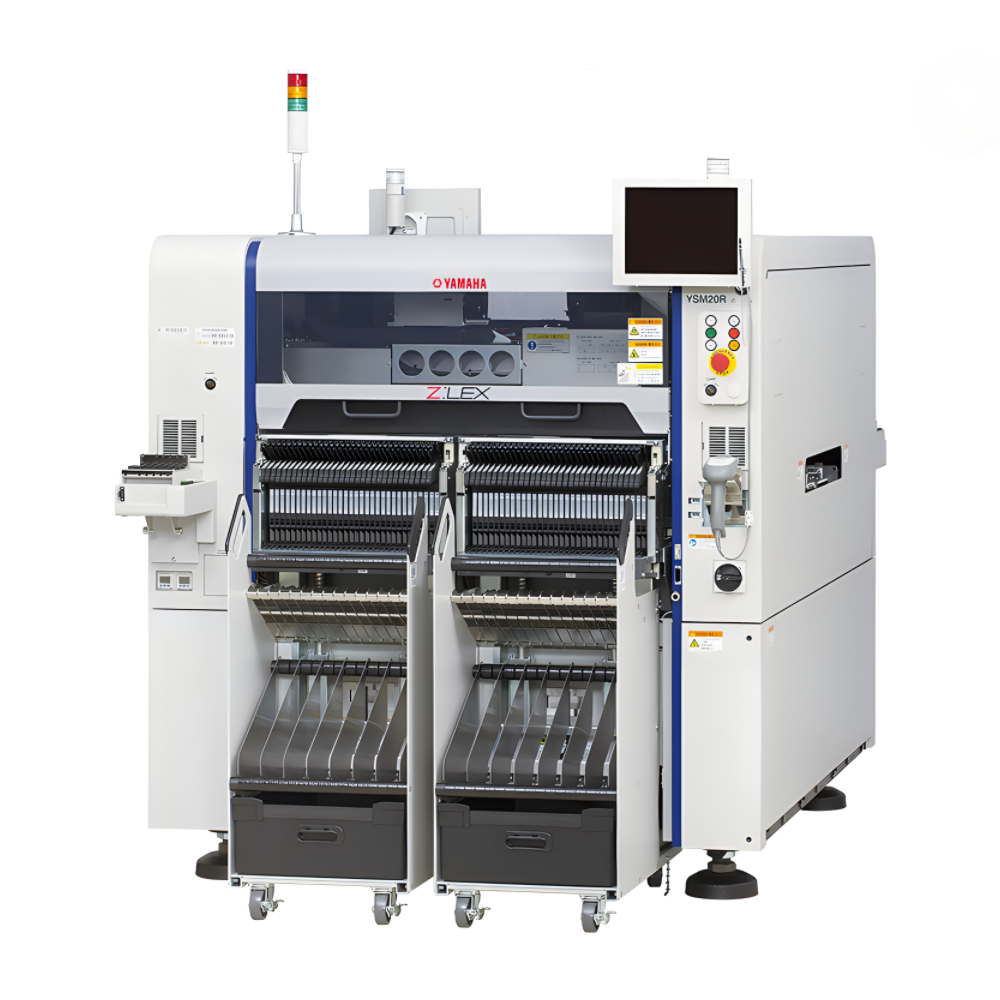

Yamaha Z:LEX YSM20WR High-efficiency Modular Picture Show:
