Yamaha Σ-G5SⅡ Premium Modular For SMT Machine Line

Model:∑-G5SⅡ

Applicable PCB(Single lane):L610×W510 mm to L50×W50 mm/(Optional: L1,200×W510 to L50×W50 mm)

Applicable PCB(Dual lane):L610×W250 mm to L50×W84mm (dual feed)/L610×W415mm (single feed)

Mounting capability:High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane)

Mounting accuracy(High-Speed Multi (HM) Head):0201mm/03015mm: ±25μm/80,000 CPH 0402mm: ±36 μm/85,000 CPH 0603mm: ±40 μm/90,000 CPH

Mounting accuracy(Flexible Multi (FM) Head):±15μm

Applicable components(High-Speed Multi (HM) Head):0201mm to L44×W44×H12.7 mm or under

Applicable components(Flexible Multi (FM) Head):1005mm to L72×W72×H25.4 mm or under Connector: 150×26 mm

Number of component types:120 types max. (8 mm wide tape equivalent)

Power supply:3-phase AC200V ±10%, 50/60Hz

Air supply source:0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)

External dimension (excluding projections):L 1,280 x W 2,240 x H 1,450mm

Weight:Approx. 1,800 kg

Product Description

SMT Placement Solution Smd Mounting Machine Yamaha Σ-G5SⅡ Premium Modular Led Pick and Place Machine For SMT Assembly Line SMT Machine Line

Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15

Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

Successful Experience:

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

Yamaha Σ-G5SⅡ Premium Modular Technical Parameters :

Model	∑-G5SⅡ
Applicable PCB	Single lane	L610×W510 mm to L50×W50 mm (Optional: L1,200×W510 to L50×W50 mm)
	Dual lane	L610×W250 mm to L50×W84mm (dual feed) L610×W415mm (single feed)
Mounting capability	High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)	High-Speed Multi (HM) Head	0201mm/03015mm: ±25μm/80,000 CPH 0402mm: ±36 μm/85,000 CPH 0603mm: ±40 μm/90,000 CPH
	Flexible Multi (FM) Head	±15μm
Applicable components	High-Speed Multi (HM) Head	0201mm to L44×W44×H12.7 mm or under
	Flexible Multi (FM) Head	1005mm to L72×W72×H25.4 mm or under Connector: 150×26 mm
Number of component types	120 types max. (8 mm wide tape equivalent)
Power supply	3-phase AC200V ±10%, 50/60Hz
Air supply source	0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)
External dimension (excluding projections)	L 1,280 x W 2,240 x H 1,450mm
Weight	Approx. 1,800 kg

Yamaha Σ-G5SⅡ Premium Modular Details:

Feature

The “1-head solution” rotary head provides speed, versatility and high operating ratio.

▶Two new head types in an evolution of the “1-head solution” to achieve high productivity: Accommodates super-small 0201mm (0.25 × 0.125 mm) size components and large components
▶Extended detection range of components held for better mounting quality
▶Larger internal buffer size to reduce feeding loss with large PCBs
▶Further detail revisions and refinements for added reliability
▶Compatibility with previous models

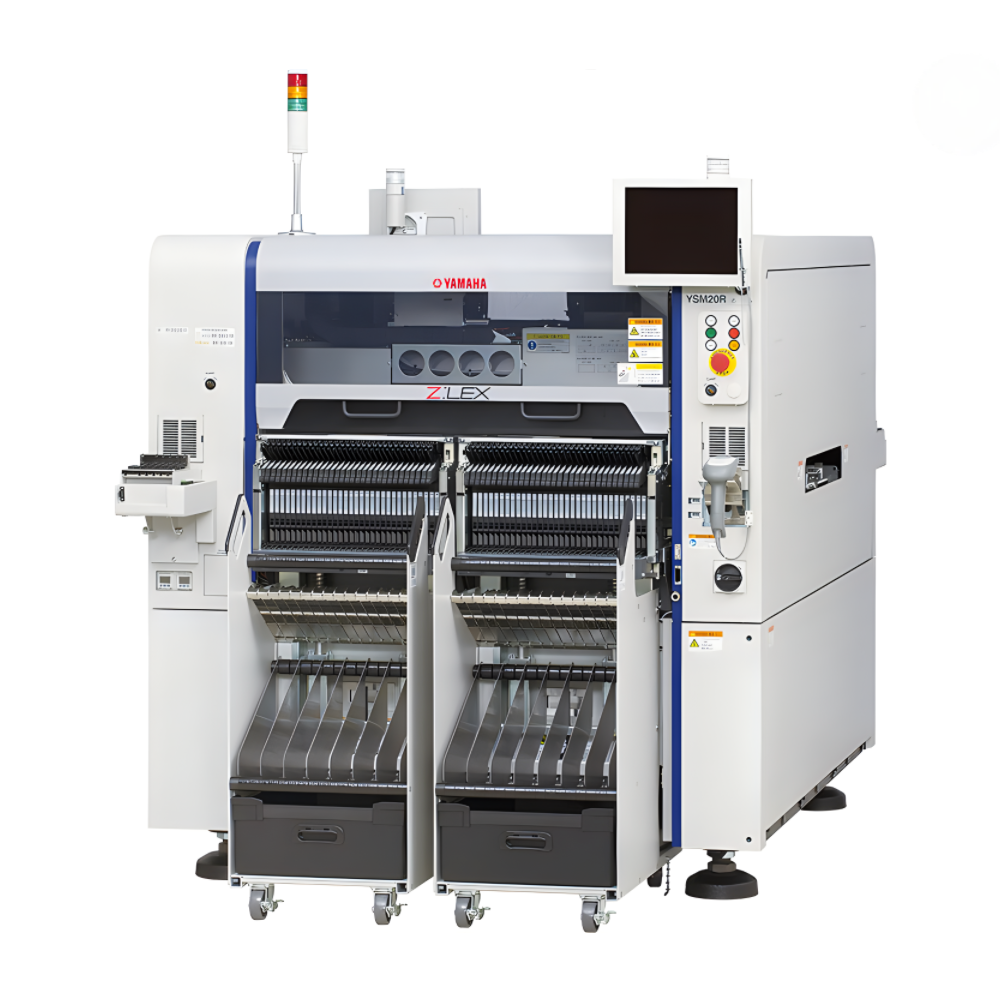

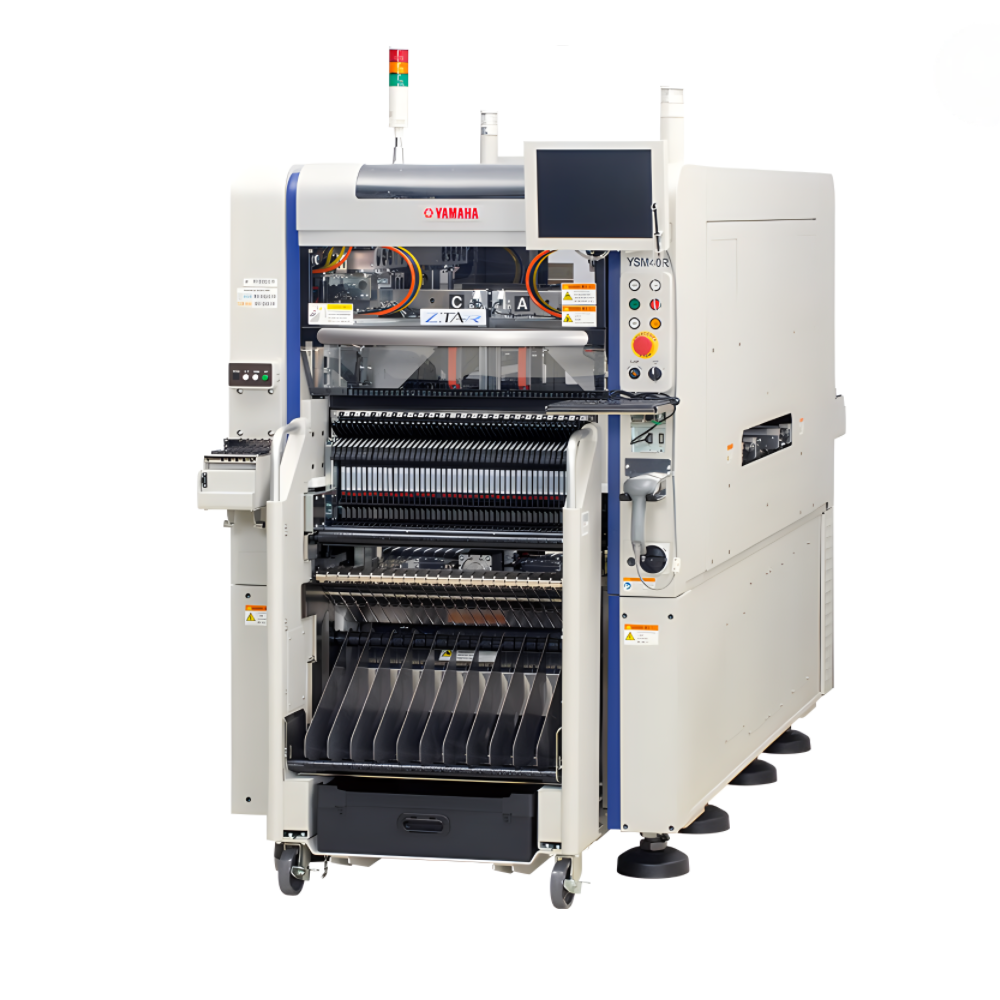

Yamaha Σ-G5SⅡ Premium Modular Picture Show:

EXHIBITION:

SMT LINE:
